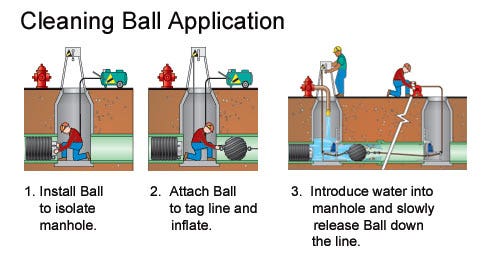

Pipeline Cleaning Balls are an affordable tool for cleaning new pipelines prior to line acceptance testing. They are also used for cleaning grease and debris from existing lines.
| Image | Nominal Size | Dia. Max | Dia. Min | Liquid Head (FT) Pressure | Length Deflated | Infl. Thread | Eye Bolt Size | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15"-18" (375mm-450mm) | 18.25" (464mm) | 11" (279mm) | 5 ft (1.5 m) | 14.75" (375mm) | 1/4" (6.35mm) (1) | 3/8" (9.52mm) (2) | 13 Lb (5.9 Kg) | 109-018- |
$447.00
|
||
|
10"-14" (250mm - 350mm) | 14.25" (362mm) | 8.75" (222mm) | 5 ft (1.5 m) | 12.25" (311mm) | 1/4" (6.35mm) (1) | 3/8" (9.52mm) (2) | 7.5 Lb (3.4 Kg) | 109-014- |
$371.00
|
||
|
6"-10" (150-250mm) | 10.25" (260mm) | 5.87" (149mm) | 5 ft (1.5 m) | 8" (203mm) | 1/4" (6.35mm) (1) | 3/8" (9.52mm) (2) | 2.5 Lb (1.1 Kg) | 109-010- |
$284.00
|
