Test Caps, Sizes 1.5" to 6", 142-9 Series
Do not use plastic pipe caps for pressure testing
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
Pipe Plug, Knock Out Caps, 142-93 Series
Knock Out Style Test Cap
- Made of ABS
- Deep design provides stronger, leak-free connections
- For use with Schedule 40 ABS and PVC DWV pipe
| Pipe Size, Nominal | Pipe Type | Press. Pipeline Max | Quantity Per Case | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 4" (102mm) | SCH 40 ABS and PVC DWV pipe | 13 psi (0.89 bar) | 25 Caps Per Case | 3 Lb (1.36 Kg) Per Case | 142-9304- |
$13.50
|
|
|
| 3" (76mm) | SCH 40 ABS and PVC DWV pipe | 13 psi (0.89 bar) | 50 Caps Per Case | 4 Lb (1.81 Kg) Per Case | 142-9303- |
$21.00
|
|
|
| 2" (51mm) | SCH 40 ABS and PVC DWV pipe | 13 psi (0.89 bar) | 100 Caps Per Case | 4 Lb (1.81 Kg) Per Case | 142-9302- |
$27.00
|
|
|
| 1.5" (38mm) | SCH 40 ABS and PVC DWV pipe | 13 psi (0.89 bar) | 100 Caps Per Case Price | 2 Lb (0.91 Kg) Per Case | 142-93015- |
$23.00
|
|

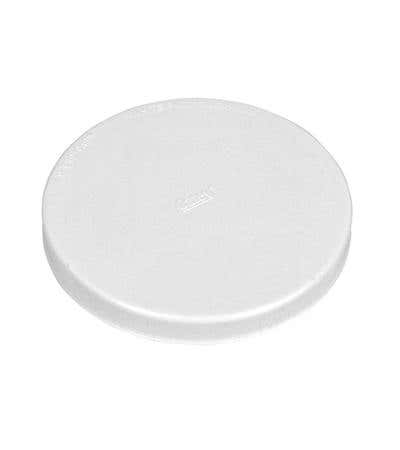

Pipe Plug, End Cap, ABS, 142-92 Series
End Cap Style Test Cap
- Made of ABS
- Deep design provides extra sealing strength
- Plastic pipe end caps for use on DWV water or air tests on Schedule 40 ABS and PVC DWV pipe
| Pipe Size, Nominal | Pipe Type | Press. Pipeline Max | Quantity Per Case | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 3"-4" (76mm-102mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 25 Caps Per Case | 2 lbs Per Case | 142-9204-M |
$23.50
|
|
|
| 4" (102mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 20 Caps Per Case | 2 Lb (0.91 Kg) Per Case | 142-9204- |
$13.20
|
|
|
| 3" (76mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 50 Caps Per Case | 3 lbs Per Case | 142-9203- |
$30.00
|
|
|
| 1.5"-2" (38mm-51mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 50 Caps Per Case | 3 Lb (1.36 Kg) Per Case | 142-9202-M |
$33.00
|
|
|
| 2" (51mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 100 Caps Per Case | 4 Lb (1.81 Kg) Per Case | 142-9202- |
$50.00
|
|
|
| 1.5" (38mm) | DWV water/air tests on SCH 40 ABS, PVC DWV pipe | 17 psi (1.17 bar) | 100 Caps Per Case | 3 Lb (1.36 Kg) Per Case | 142-92015- |
$47.00
|
|

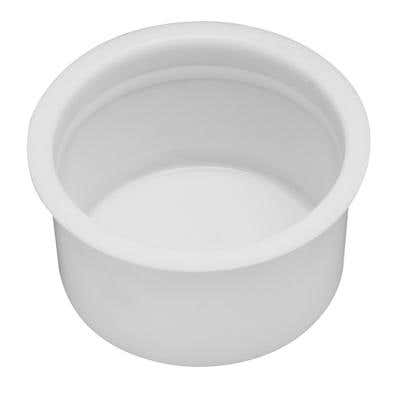

Pipe Plug, Slip On Style, 142-9 Series
Slip On Style Test Cap
- Made of Polyethylene
- Ideal for protecting open pipe
- Slips over DWV pipe or inside the fitting
- Does not require solvent cement
- Schedule 40 ABS and PVC DWV pipe
| Pipe Size, Nominal | Pipe Type | Press. Pipeline Max | Quantity Per Case | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 4" (102mm) | SCH 40 ABS and PVC DWV Pipe | 4.3 psi (0.29 bar) | 10 Caps Per Case | 2 Lb (0.91 Kg) Per Case | 142-9104- |
$16.13
|
|
|
| 3" (76mm) | SCH 40 ABS and PVC DWV Pipe | 4.3 psi (0.29 bar) | 10 Caps Per Case | 2 Lb (0.91 Kg) Per Case | 142-9103- |
$12.50
|
|
|
| 2" (51mm) | SCH 40 ABS and PVC DWV Pipe | 4.3 psi (0.29 bar) | 25 Caps Per Case | 2 Lb (0.91 Kg) Per Case | 142-9102- |
$15.80
|
|
|
| 1.5" (38mm) | SCH 40 ABS and PVC DWV Pipe | 4.3 psi (0.29 bar) | 50 Caps Per Case | 3 Lb (1.36 Kg) Per Case | 142-91015- |
$27.95
|
|
Pipe Plug, Cap & Clamp Style, 142-94 Series
Hose Clamp Style Test Cap
- Plastic pipe plugs made of flexible PVC
- Stainless steel hose clamp - will not rust
- For use on plastic, steel, copper, and cast iron pipe
| Pipe Size, Nominal | Pipe Type | Press. Pipeline Max | Quantity Per Case | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 6" (152mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 5 Clamps Per Case | 6 Lb (2.72 Kg) Per Case | 142-9406- |
$61.00
|
|
|
| 5" (127mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 5 Clamps Per Case | 8 Lb (3.63 Kg) Per Case | 142-9405- |
$87.50
|
|
|
| 4" (102mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 10 Clamps Per Case | 7 Lb (3.18 Kg) Per Case | 142-9404- |
$61.80
|
|
|
| 3" (76mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 10 Clamps Per Case | 4 Lb (1.81 Kg) Per Case | 142-9403- |
$52.50
|
|
|
| 2" (51mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 10 Clamps Per Case | 3 Lb (1.36 Kg) Per Case | 142-9402- |
$41.70
|
|
|
| 1.5" (38mm) | Plastic, Steel, Copper and Cast Iron pipe | 13 psi (0.89 bar) | 10 Clamps Per Case | 2 Lb (0.91 Kg) Per Case | 142-94015- |
$40.30
|
|
