Manhole Vacuum Test Equipment
Manhole vacuum testing equipment offers an efficient, accurate and cost-effective method of testing new, existing, and rehabilitated manholes
- Vacuum test per ASTM C 1244*
- Create a vacuum to identify infiltration and exfiltration and then monitoring a gauge for vacuum loss.
- Less expensive and faster than water testing
- Remote-inflation and monitoring system keeps users away from the danger zone.
- For manholes as deep as 40' if desired.
*When utilizing ASTM C1244, a vacuum of 10 inches Hg is drawn on the manhole after all lift holes are plugged, and pipes entering the manhole are temporarily plugged and securely braced. The time is measured for the vacuum to drop to 9 inches Hg. The manhole is accepted if the measured time meets or exceeds the values presented in Table 1 of ASTM C1244. If the manhole fails the initial test, it may be repaired by an approved method until a satisfactory test is obtained.
Note: The latest edition of ASTM C1244 shall be used for proper testing procedures and criteria.
Manhole Vacuum Test Equip. Bladder-Style
Features:
- Seals the inside diameter of the manhole at frame or cone
- Supported by a durable aluminum brace
- Hose, 1.5" 20 ft. with two 1.5" Cam Lock fittings, and 3.5" gauge assembly included
- Push-pin rod design for easy depth adjustment
| Image | Dia., Seal Max | Dia., Seal Min | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
|
36" (914mm) | 31.5" (800mm) | Vacuum Manhole Tester, Replacement Bladder, 36" | 18 Lb (8.16 Kg) | 938-7136-BL |
$844.20
|
|
|
|
36" (914mm) | 31.5" (800mm) | Vacuum Manhole Tester, Bladder Style, 36" | 185 Lb (83.92 Kg) | 938-7136- |
$4,735.50
|
|
|
|
|
34" (864mm) | 29.5" (749mm) | Vacuum Manhole Tester, Replacement Bladder, 34" | 18 Lb (8.16 Kg) | 938-7134-BL |
$672.00
|
|
|
|
24.3" (617mm) | 30" (762mm) | Vacuum Manhole Tester, Bladder Style, 34" | 175 Lb (79.38 Kg) | 938-7134- |
$4,641.00
|
|
|
|
32.8" (833mm) | 27.5" (699mm) | Vacuum Manhole Tester, Replacement Bladder, 32" | 16 Lb (7.26 Kg) | 938-7132-BL |
$779.10
|
|
|
|
32.8" (833mm) | 27.5" (699mm) | Vacuum Manhole Tester, Bladder Style, 32" | 170 Lb (77.11 Kg) | 938-7132- |
$4,525.50
|
|
|
|
|
30.3" (770mm) | 25" (635mm) | Vacuum Manhole Tester, Replacement Bladder, 30" | 15 Lb (6.80 Kg) | 938-7130-BL |
$623.70
|
|
|
|
30.3" (770mm) | 25" (635mm) | Vacuum Manhole Tester, Bladder Style, 30" | 165 Lb (74.84 Kg) | 938-7130- |
$4,200.00
|
|
|
|
|
29.3" (744mm) | 24" (610mm) | Vacuum Manhole Tester, Replacement Bladder, 29" | 15 Lb (6.80 Kg) | 938-7129-BL |
$595.35
|
|
|
|
29.3" (744mm) | 24" (610mm) | Vacuum Manhole Tester, Bladder Style, 29" | 160 Lb (72.58 Kg) | 938-7129- |
$4,200.00
|
|
|
|
|
26.3" (668mm) | 21.5" (546mm) | Vacuum Manhole Tester, Replacement Bladder, 26" | 12 Lb (5.44 Kg) | 938-7126-BL |
$661.50
|
|
|
|
26.3" (668.02mm) | 21.5" (546mm) | Vacuum Manhole Tester, Bladder Style, 26" | 145 Lb (65.77 Kg) | 938-7126- |
$4,137.00
|
|
|
|
|
24.3" (617mm) | 20" (508 mm) | Vacuum Manhole Tester, Replacement Bladder, 24" | 10 Lb (4.54 Kg) | 938-7124-BL |
$548.10
|
|
|
|
24.3" (617mm) | 20" (508mm) | Vacuum Manhole Tester, Bladder Style 24" | 130 Lb (58.97 Kg) | 938-7124- |
$4,011.00
|
|
Manhole Vacuum Testing Plate-Style
Features:
- Designed to seal manhole cone surface
- Seals a wide range of manhole diameters
- Hose, 1.5" 20 ft. with two 1.5" Cam Lock fittings, and 3.5" gauge assembly included
- Neoprene gasket for leak-free seal
| Image | Dia., Seal Max | Dia., Seal Min | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
|
42" (1067mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, Replacement Foam, 44" | 25 Lb (11.34 Kg) | 938-7244-FM |
$353.85
|
|
|
|
42" (1067mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, 44" | 140 Lb (63.50 Kg) | 938-7244- |
$2,572.50
|
|
|
|
36" (914mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, Replacement Foam 38" | 15 Lb (6.80 Kg) | 938-7238-FM |
$329.70
|
|
|
|
36" (914.4mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, 38" | 120 Lb (54.43 Kg) | 938-7238- |
$2,436.00
|
|
|
|
30" (762 mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, Replacement Foam, 32" | 12 Lb (5.44 Kg) | 938-7232-FM |
$316.05
|
|
|
|
30" (762mm) | 18" (457mm) | Vacuum Manhole Tester, Plate Style, 32" | 100 Lb (45.36 Kg) | 938-7232- |
$2,352.00
|
|
Vacuum Pumps
Features:
- Choose a Briggs & Stratton or Honda engine vacuum pump - each with low-oil shut-off to prevent engine failure
- Heavy-duty frame with optional wheel kit
- Unbreakable aluminum filter jars
- Oil-free graphite vane pump for no-fuss lubrication
- Draws 10" Hg vacuum in about two minutes for a 15' manhole (18 CFM at 10" Hg)
Manhole Test, Vacuum Generators
Features:
- Converts standard air compressor into a vacuum source for testing manholes - draws a vacuum in minutes
- Vacuum generator 460 delivers 14 CFM at 10" HG (air compressor: minimum 7 CFM at 100 psi)

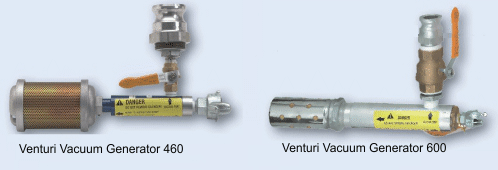

- Vacuum generator 600 delivers 42 CFM at 10" HG, meeting or exceeding the competition (air compressor: minimum 85 CFM at 100 PSI)
- Chicago/Crows Foot air compressor fitting and Cam and Groove Adapter F Style vacuum fitting
Vacuum Generator, Venturi
| Image | Description | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|
|
Vacuum Generator, Venturi, 1/2" QD | 936-1201- |
$572.00
|
|
Vacuum Pump Hoses & Gauge Assemblies
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
Replacement 0-60" Hg Gauge | 3 Lb (1.36 Kg) | 938-7120-0G6 |
$54.92
|
|
|
|
Replacement 0-30" Hg Gauge | 6 Lb (2.72 Kg) | 938-7120-0G3 |
$186.90
|
|
