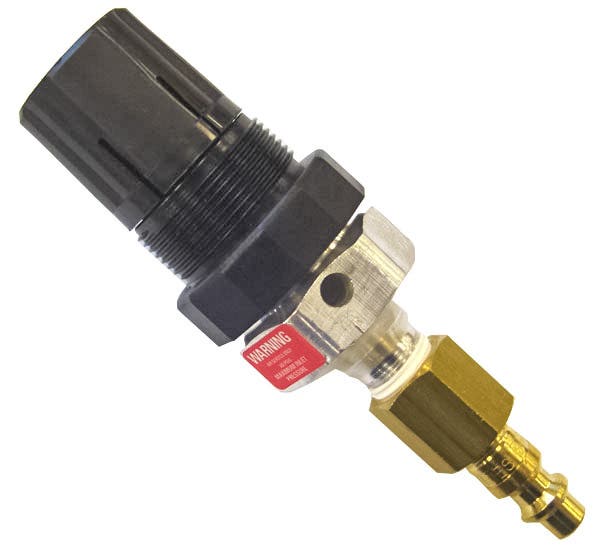

Pressure Relief Valves

Pressure relief valve features:

Connects to the Inflation Controller QD coupling.
Bleeds excess air pressure to avoid over inflation.
Recommended setting is 10% over the rated pressure of the inflatable plug.
Use the Inflation Controller to set the Adjustable Valve pressure. On the adjustable plug, adjust the screw cap until the Relief Valve just opens (clockwise to increase pressure, counter clockwise to decrease pressure). Flow can be heard escaping.
Decrease the source pressure on the inflation controller to verify the Relief Valve closes at the rated pressure of the pipe plug.

Click an Item Number for More Information and to Order

Description	Pressure, PSI	Connection Type	Shipping Wt.	Item Number	Price	Action
Pressure Relief Valve, 300 psig, 1/4" Male QC	300 psi(20.68 bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200300	$95.00	Add to Compare
Pressure Relief Valve, 250 psig, 1/4" Male QC	250 psi (17.24 bar)	1/4" QC	2 LB (0.91 Kg)	936-1000-200250	$95.00	Add to Compare
Pressure Relief Valve, 200 psig, 1/4" Male QC	200 psi(13.79 bar)	1/4" QC	2 LB (0.91 Kg)	936-1000-200200	$95.00	Add to Compare
Pressure Relief Valve, 175 psig, 1/4" Male QC	175 psi (12.07bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200175	$95.00	Add to Compare
Pressure Relief Valve, 125 psig, 1/4" Male QC	125 psi(8.62 bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200125	$95.00	Add to Compare
Pressure Relief Valve, 110 psig, 1/4" Male QC	110 psi (7.58 bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200110	$95.00	Add to Compare
ADJUSTABLE Pressure Relief Valve 0-100 PSI	0-100 psi (6.89 bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200100	$95.00	Add to Compare
ADJUSTABLE Pressure Relief Valve 0-25PSI	0-25 psi (0-1.73 bar)	1/4" QC	2 Lb (0.91 Kg)	936-1000-200025	$95.00	Add to Compare
