Heavy Duty Lifting Air Bags |145/116 PSI High Pressure Lifting Bags

Air Lift Bag, High Pressure, 161-5 Series

Made of Aramid reinforced rubber compound.
Operating Temperature: -40°F to 130°F

The series 161-5 high pressure lifting air bags have:

up to 25% higher lift capacity than a conventional lift bag of the same size
25% higher inflation pressure, i.e. 145 PSI as compared to the conventional 116 PSI
lighter in weight
lower profile with an insertion height of only 0.9”
special rib design on the surface ensures perfect interlocking when stacking two of the pneumatic lifting bags
each heavy load air bag has a minimum safety factor of 4 with a burst pressure of 580 PSI or more
compatible with and can be used with conventional 116 PSI inflation control systems
Two year limited warranty.

161-5 Series High Pressure Lifting Air Bags Operating Instructions

Below, Bag Lift Curves - select to open or see operating instructions

Lifting Bag

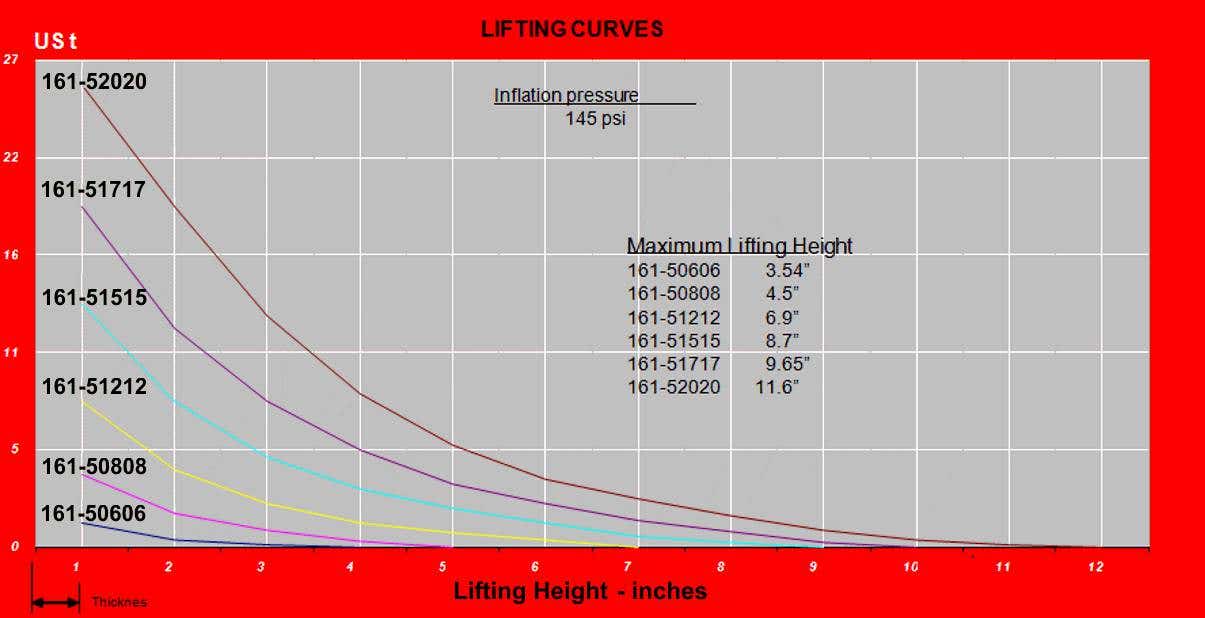

6x6 - 20x20 145 psi

Lifting Bag

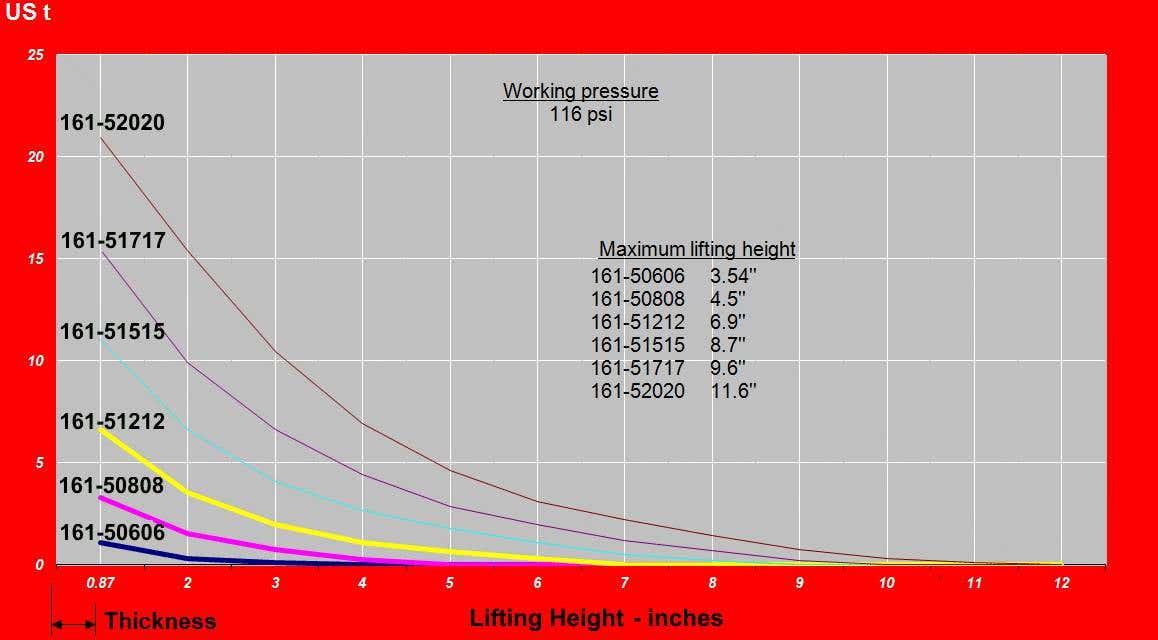

6x6 - 20x20 116 psi

161-5 Series 145 or 116 PSI High Pressure Heavy Duty Bags Sizes 6" to 36"

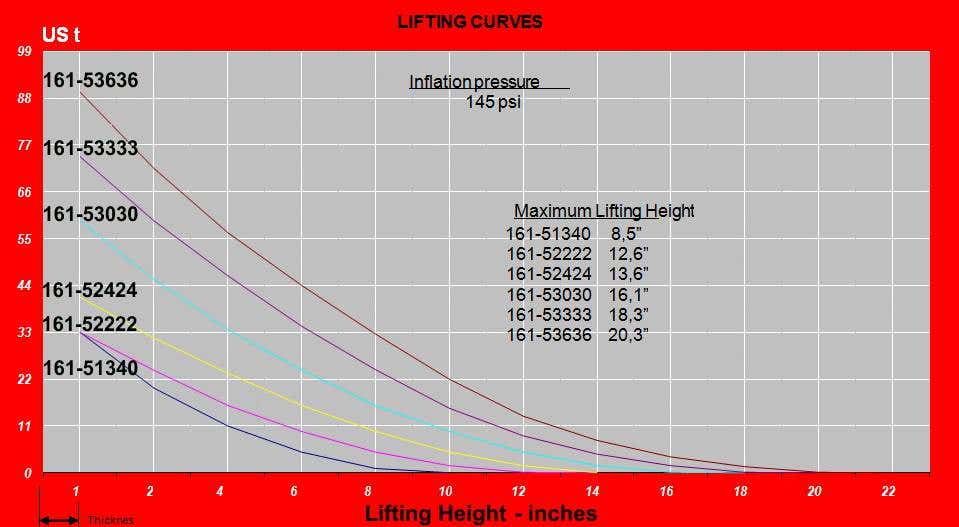

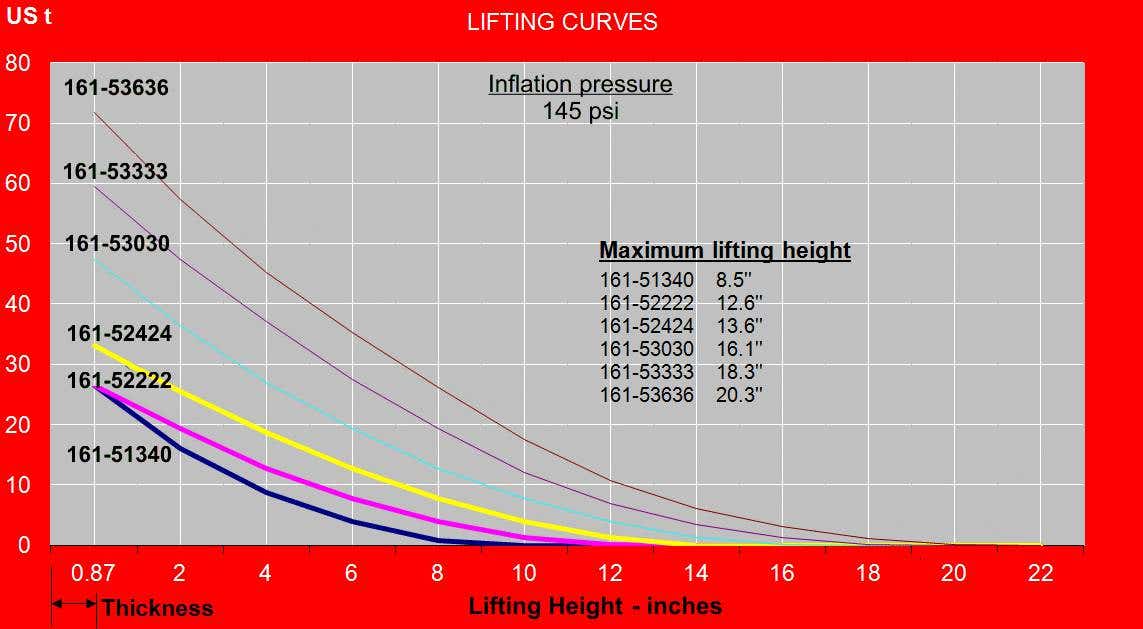

13x40 - 36x36 145 psi

Air Lift Bag, High Pressure, 161-5 Series

Click an Item Number for More Information and to Order

Size	Thickness	Lift Height Max	Max Load, Tons	Pipe Plug Inflation Max Press.	Burst Strength, Min	Shipping Wt.	Item Number	Price	Order or Compare
20" X 20" (508mm X 508mm)	0.86" (21.8mm)	11.6" (295mm)	26 US Tons @ 1" Height	145 PSI (10.00 BAR)	580 psi (40 bar)	13 Lbs (5.90 Kg)	161-52020-	$1,290.00	Add to Compare
15" X 15" (381mm X 381mm)	0.86" (21.8mm)	8.7" (221mm)	14.3 US Tons @ 1" Height	145 PSI (10.00 BAR)	580 psi (40 bar)	8 Lbs (3.63 Kg)	161-51515-	$1,250.00	Add to Compare
12" X 12" (305mm X 305mm)	0.86" (21.8mm)	6.9" (175mm)	8.8 US Tons @ 1" Height	145 PSI (10.00 BAR)	580 psi (40 bar)	5 Lbs (2.27 Kg)	161-51212-	$710.00	Add to Compare
8" X 8" (203mm x 203mm)	0.86" (21.8mm)	4.5" (114.3mm)	4.4 US Tons @ 1" Height	145 PSI (10.00 BAR)	580 psi (40 bar)	3 Lbs (1.36 Kg)	161-50808-	$470.00	Add to Compare
6" X 6" (152mm x 152mm)	0.86" (21.8mm)	3.54" (90mm)	1.8 US Tons @ 1" Height	145 PSI (10.00 BAR)	580 psi (40 bar)	2 Lbs (0.91 Kg)	161-50606-	$400.00	Add to Compare

Air Lift Bag Hose, 161-5 Series

Click an Item Number for More Information and to Order

Description	Connection Type	Shipping Wt.	Item Number	Price	Order or Compare
Hose, Inflation, Green 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	6 Lb (2.72 Kg)	162-2038-50325	$209.63	Add to Compare
Hose, Inflation, Yellow 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	6 Lb (2.72 Kg)	162-2038-50324	$209.63	Add to Compare
Hose, Inflation, Red 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	6 Lb (2.72 Kg)	162-2038-50323	$209.63	Add to Compare
Hose, Inflation, Blue 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	6 Lb (2.72 Kg)	162-2038-50322	$209.63	Add to Compare
Hose, Inflation, Black 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	6 Lb (2.72 Kg)	162-2038-50321	$209.63	Add to Compare
Hose, Inflation, Green 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	4 Lb (1.81 Kg)	162-2038-50165	$172.00	Add to Compare
Hose, Inflation, Yellow 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	4 Lb (1.81 Kg)	162-2038-50164	$172.00	Add to Compare
Hose, Inflation, Red 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	4 Lb (1.81 Kg)	162-2038-50163	$172.00	Add to Compare
Hose, Inflation, Blue 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	4 Lb (1.81 Kg)	162-2038-50162	$172.00	Add to Compare
Hose, Inflation, Black 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve	1/4" Safety Coupler and Nipple	4 Lbs (1.81 Kg)	162-2038-50161	$172.00	Add to Compare
Pressure Regulator, 6000 PSI with CGA 347			162-1110-80200	$616.00	Add to Compare
Pressure Regulator, CGA Universal up to 4,500 PSI			162-1110-80115	$870.75	Add to Compare

Air Lift Bag, Controller, 161-5 Series

Click an Item Number for More Information and to Order

Description	Connection Type	Shipping Wt.	Item Number	Price	Order or Compare
Dual Deadman Controller with Joysticks, 145 psi (10 bar)	1/4" Safety Coupler and Nipple	5 Lb (2.27 Kg)	162-1110-50300	$967.50	Add to Compare
Simple Controller with Dual 145 psi (10 bar) Relief Valve, Gauges and Ball Valves	1/4" Safety Coupler and Nipple	2 Lb (0.91 Kg)	162-1110-50200	$468.70	Add to Compare
Simple Controller with 145 psi (10 bar) Relief Valve, Gauge and Ball Valve	1/4" Safety Coupler and Nipple	4 Lb (1.81 Kg)	162-1110-50100	$301.00	Add to Compare
