Quality Products For Professionals Since 1916 ISO9001:2015

145/116 PSI Lift Bags, 161-5 Series

Made of Aramid reinforced rubber compound.
Operating Temperature: -40°F to 130°F

The series 161-5 high pressure lifting air bags have up to 25% higher lift capacity than a conventional lift bag of the same size. This is due to the 25% higher inflation pressure, i.e. 145 PSI as compared to the conventional 116 PSI. In addition, these high pressure lift bags are lighter in weight and have a lower profile with an insertion height of only 0.9”. The special rib design on the surface ensures perfect interlocking when stacking two of the pneumatic lifting bags. Each heavy load air bag has a minimum safety factor of 4 with a burst pressure of 580 PSI or more. These industrial air bags are compatible with and can be used with conventional 116 PSI inflation control systems. Two year limited warranty.

161-5 Series High Pressure Lifting Air Bags Operating Instructions

161-5 Series 145 or 116 PSI High Pressure Heavy Duty Bags Sizes 6" to 36"

161-5 Series 145 or 116 PSI High Pressure Heavy Duty Bags Sizes 6" to 36"

161-5 Series 145 or 116 PSI High Pressure Heavy Duty Bags Sizes 6" to 36"

Above Left - Each bag is supplied with two nipples. The bottom one is a 1/4" safety nipple (with two ribs) and can only be used with a safety coupler which reduces the risk of possible injury or damage due to accidental air line disconnect.The top one is a 1/4" standard industrial interchange (SAE) nipple. Lower right in this photo is the 1/4 BSP threaded male stem which is also removable in case of thread damage.

Below, Bag Lift Curves - select to open or see operating instructions

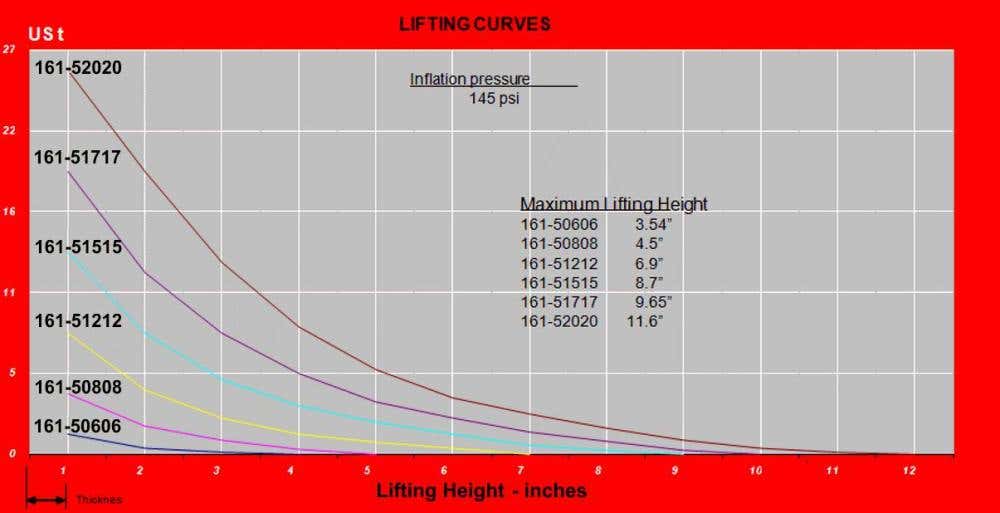

Lifting bag lifting curves6x6 - 20x20 145psi

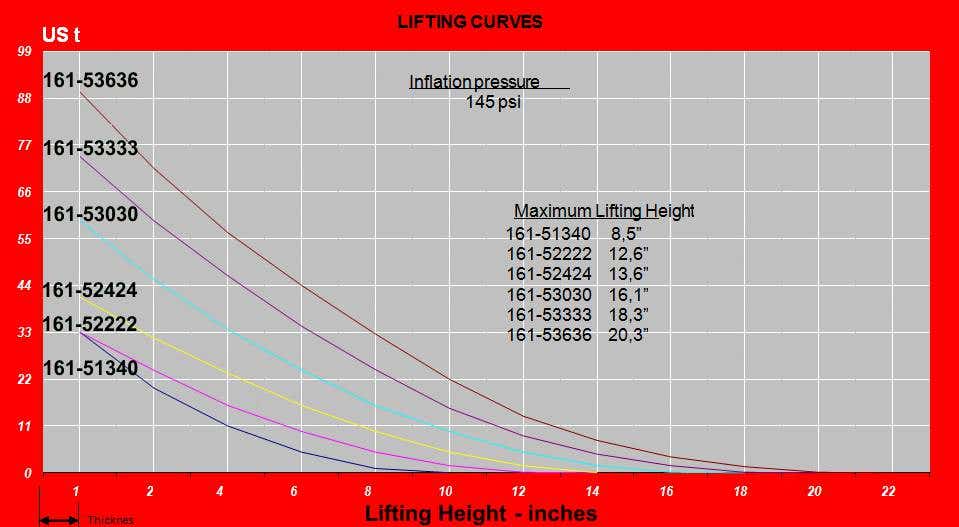

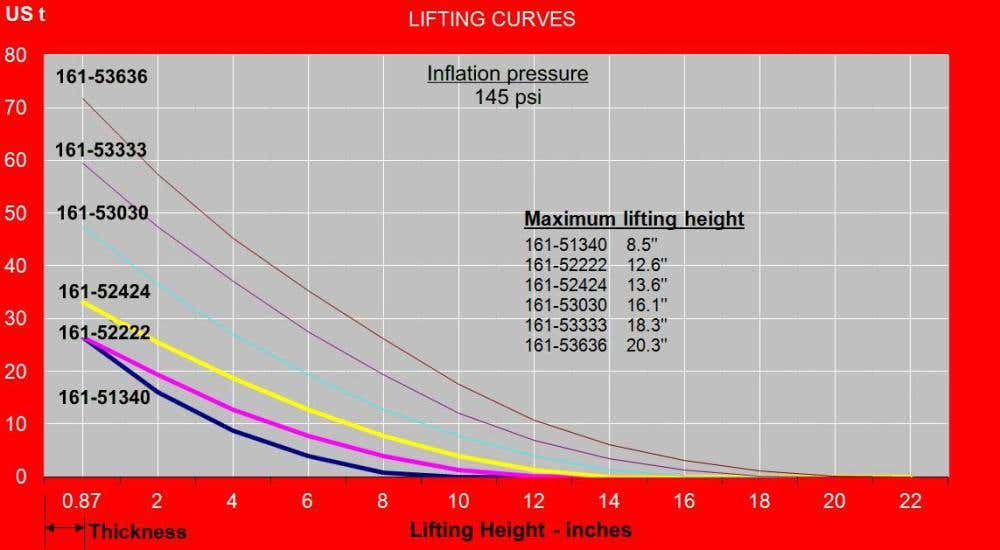

Lifting bag lifting curves
13x40 - 36x36 145psi

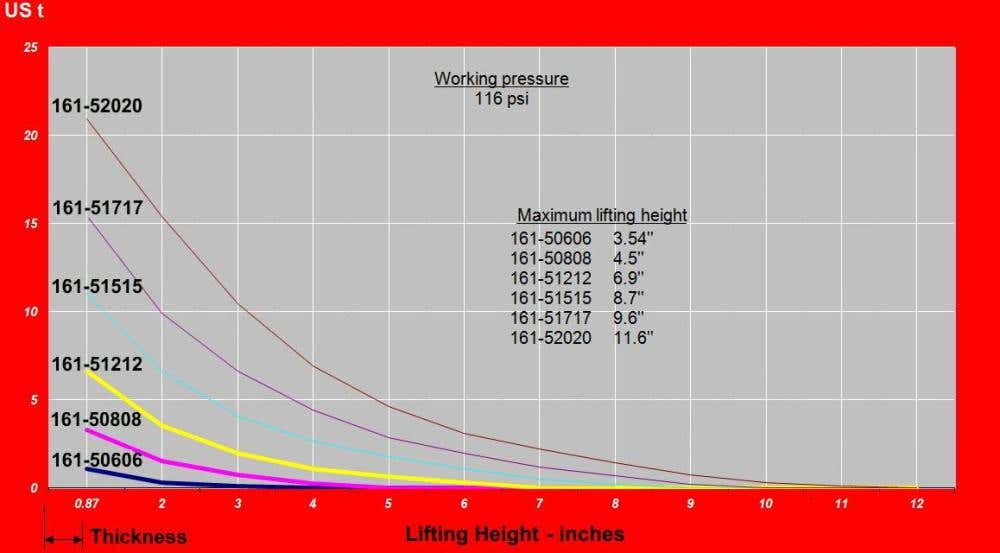

Lifting bag lifting curves
6x6 - 20x20 116psi


6x6 - 20x20 116psi

Loading...

Air Lift Bag, High Pressure, 161-5 Series

    Image Size Thickness Lift Height Max Max Load, Tons Pipe Plug Inflation Max Press. Press., Max Test PSI Burst Strength, Min Shipping Wt. Item Number Price Qty Action
    20" X 20" (508mm X 508mm) 0.86" (21.8mm) 11.6" (295mm) 26 US Tons @ 1" Height 145 psi (10 bar) 218 psi (15.03 bar) 580 psi (40 bar) 13 Lbs (5.90 Kg) 161-52020-
    $1,290.00
    15" X 15" (381mm X 381mm) 0.86" (21.8mm) 8.7" (221mm) 14.3 US Tons @ 1" Height 145 psi (10 bar) 218 psi (15.03 bar) 580 psi (40 bar) 8 Lbs (3.63 Kg) 161-51515-
    $940.00
    12" X 12" (305mm X 305mm) 0.86" (21.8mm) 6.9" (175mm) 8.8 US Tons @ 1" Height 145 psi (10 bar) 218 psi (15.03 bar) 580 psi (40 bar) 5 Lbs (2.27 Kg) 161-51212-
    $710.00
    8" X 8" (203mm x 203mm) 0.86" (21.8mm) 4.5" (114.3mm) 4.4 US Tons @ 1" Height 145 psi (10 bar) 218 psi (15.03 bar) 580 psi (40 bar) 3 Lbs (1.36 Kg) 161-50808-
    $470.00
    6" X 6" (152mm x 152mm) 0.86" (21.8mm) 3.54" (90mm) 1.8 US Tons @ 1" Height 145 psi (10 bar) 218 psi (15.03 bar) 580 psi (40 bar) 2 Lbs (0.91 Kg) 161-50606-
    $400.00

Air Lift Bag Hose, 161-5 Series

    Image Description Connection Type Shipping Wt. Item Number Price Qty Action
    Hose, Inflation, Green 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 6 Lb (2.72 Kg) 162-2038-50325
    $209.63
    Hose, Inflation, Yellow 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 6 Lb (2.72 Kg) 162-2038-50324
    $209.63
    Hose, Inflation, Red 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 6 Lb (2.72 Kg) 162-2038-50323
    $209.63
    Hose, Inflation, Blue 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 6 Lb (2.72 Kg) 162-2038-50322
    $209.63
    Hose, Inflation, Black 3/8" ID X 32' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 6 Lb (2.72 Kg) 162-2038-50321
    $209.63
    Hose, Inflation, Green 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-2038-50165
    $172.00
    Hose, Inflation, Yellow 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-2038-50164
    $172.00
    Hose, Inflation, Red 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-2038-50163
    $172.00
    Hose, Inflation, Blue 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-2038-50162
    $172.00
    Hose, Inflation, Black 3/8" ID X 16' All-Weather, with Shut-Off and Pressure Relief Valve 1/4" Safety Coupler and Nipple 4 Lbs (1.81 Kg) 162-2038-50161
    $172.00
    Pressure Regulator, 6000 PSI with CGA 347 162-1110-80200
    $454.00
    Pressure Regulator, CGA Universal up to 4,500 PSI 162-1110-80115
    $870.75

Air Lift Bag, Controller, 161-5 Series

    Image Description Connection Type Shipping Wt. Item Number Price Qty Action
    Dual Deadman Controller with Joysticks, 145 psi (10 bar) 1/4" Safety Coupler and Nipple 5 Lb (2.27 Kg) 162-1110-50300
    $967.50
    Simple Controller with Dual 145 psi (10 bar) Relief Valve, Gauges and Ball Valves 1/4" Safety Coupler and Nipple 2 Lb (0.91 Kg) 162-1110-50200
    $468.70
    Simple Controller with 145 psi (10 bar) Relief Valve, Gauge and Ball Valve 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-1110-50100
    $301.00

Air Lift Bag, Relief Valve, 161-5 Series

    Image Description Connection Type Shipping Wt. Item Number Price Qty Action
    145 psi (10 bar) Relief Valve with Shut-Off 1/4" Safety Coupler and Nipple 4 Lb (1.81 Kg) 162-5210-9
    $139.75
