Quickly Block the Flow without depressurizing the pipeline!
The Petersen PeteStop® 128-Series Line Stop is our first line stop system. It has the smallest tap hole of any of the PeteStop® Line Stop Plugs.
Advantages of PeteStop® 128-Series Pipe Plug Systems
- Faster – smaller lighter weight equipment
- Less Expensive – smaller hole and smaller equipment needed, less time to complete
- Safety Enhanced - smallest tap hole and larger surface area means less stress on pipe
- Lower Environmental Risk – smallest tap hole
- Plug Abnormal Pipe Conditions - Heavy Corrosion, Out-of-Round Pipe, Weld Bead, etc.
- Versatility – Most pressure, chemical, temperature requirements
- Limited Space Work Environment
- Minimal pressure to seal on pipe ID
- Reusable – Heavyweight Ballistic Nylon reinforced Polyeurethane (Kevlar, Viton & others available)
- Conform to the pipe better
- Less Stress on Pipe with Structural Integrity Issues or Aging Pipe versus Mechanical Stop
- Great Complement to Mechanical Stop where there isn’t a workable seal
128 Series Configurator
Pictures in the Field
Inflatable Line Stop Contractors

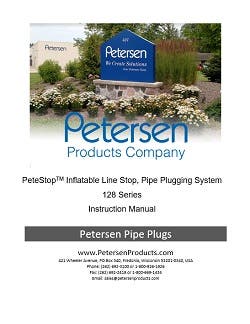

Product Instruction Manual
| Image | Dia. Max | Dia. Deflated | Dia. Hot Tap Hole, Min | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
72" (1829mm) | 14.75" (375mm) | 15" (381mm) | 7 psi (0.48 bar) | 3.5 psi (0.24 bar)/8.1' (2.46 m) | 3 M | 233" (5918mm) | 225 Lb (102.06 Kg) | 128-072- |
$22,900.00
|
||
|
66" (1676mm) | 12.75" (324mm) | 13" (330mm) | 8 psi (0.55 bar) | 4 psi (0.28 bar)/9.2' (2.81 m) | 3 M | 216" (5486mm) | 221 Lb (100.24 Kg) | 128-066- |
$17,600.00
|
||
|
60" (1524mm) | 12.75" (324mm) | 13" (330mm) | 9 psi (0.62 bar) | 4.5 psi (0.31 bar)/10.4' (3.16 m) | 3 M | 199" (5055mm) | 216 Lb (97.98 Kg) | 128-060- |
$15,100.00
|
||
|
54" (1372mm) | 11.75" (298mm) | 11.875" (302mm) | 12 psi (0.83 bar) | 6 psi (0.41 bar)/13.8' (4.22 m) | 3 M | 184" (4674mm) | 198 Lb (89.81 Kg) | 128-054- |
$12,300.00
|
||
|
48" (1219mm) | 9.75" (248mm) | 9.875" (251mm) | 15 psi (1.03 bar) | 7.5 psi (0.52 bar)/17.3' (5.27 m) | 3 M | 154" (3912mm) | 179 Lb (81.19 Kg) | 128-048- |
$10,200.00
|
||
|
42" (1067mm) | 9.5" (241mm) | 9.75" (248mm) | 21 psi (1.45 bar) | 10.5 psi (0.72 bar)/24.2' (7.38 m) | 3 M | 138" (3505mm) | 144 Lb (65.32 Kg) | 128-042- |
$8,900.00
|
||
|
36" (914mm) | 9.5" (241mm) | 9.75" (248mm) | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3 M | 122" (3099mm) | 93 Lb (42.18 Kg) | 128-036- |
$6,500.00
|
||
|
33" (838mm) | 8.875" (225mm) | 9.75" (248mm) | 30 psi (2.07 bar) | 15 psi (1.03 bar)/34.6' (10.55 m) | 3 M | 110" (2794mm) | 87 Lb (39.46 Kg) | 128-033- |
$6,300.00
|
||
|
30" (762mm) | 7.775" (197mm) | 7.875" (200mm) | 30 psi (2.07 bar) | 15 psi (1.03 bar)/34.6' (10.55 m) | 3 M | 100" (2540mm) | 80 Lb (36.29 Kg) | 128-030- |
$5,800.00
|
||
|
24" (610mm) | 7" (178mm) | 7.75" (197mm) | 37 psi (2.55 bar) | 18.5 psi (1.28 bar)/42.7' (13.01 m) | 3" M | 82" (2083mm) | 63 Lb (28.58 Kg) | 128-024- |
$4,590.00
|
||
|
20" (508mm) | 6.5" (165mm) | 7.75" (197mm) | 40 psi (2.76 bar) | 20 psi (1.38 bar)/46.1' (14.06 m) | 2 M | 69" (1753mm) | 41 Lb (18.60 Kg) | 128-020- |
$3,540.00
|
||
|
18" (457mm) | 6.25" (159mm) | 7.75" (197mm) | 48 psi (3.31 bar) | 24 psi (1.65 bar)/55.4' (16.87 m) | 2 M | 63" (1600mm) | 36 Lb (16.33 Kg) | 128-018- |
$3,360.00
|
||
|
16" (406mm) | 5.5" (140mm) | 5.75" (146mm) | 48 psi (3.31 bar) | 24 psi (1.65 bar)/55.4' (16.87 m) | 2 M | 58" (1473mm) | 34 Lb (15.42 Kg) | 128-016- |
$3,110.00
|
||
|
15" (381mm) | 5.5" (140mm) | 5.75" (146mm) | 57 psi (3.93 bar) | 28.5 psi (1.97 bar)/65.7' (20.04 m) | 2 M | 55" (1397mm) | 34 Lb (15.42 Kg) | 128-015- |
$2,890.00
|
||
|
|
14" (355mm) | 5.5" (139.7mm) | 5.75" (146.05mm) | 57 psi (3.93 bar) | 28.5 psi (1.97 bar)/65.7' (20.04 m) | 2 M | 55" (1397mm) | 34 Lb (15.42 Kg) | 128-014- |
$2,890.00
|
||
|
12" (305mm) | 5.5" (140mm) | 5.75" (146mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 2 M | 46" (1168 mm) | 30 Lb (13.61 Kg) | 128-012- |
$2,760.00
|
||
|
10" (254mm) | 4.75" (121mm) | 5.75" (146mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 2 M | 40" (1016mm) | 26 Lb (11.79 Kg) | 128-010- |
$2,660.00
|
||
|
8" (203mm) | 4.5" (114mm) | 5.5" (140mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 2 M | 29" (737mm) | 18 Lb (8.16 Kg) | 128-008- |
$2,310.00
|
||
|
6" (152mm) | 3.25" (83mm) | 3.750" (95mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 1-1/4 M | 25" (635mm) | 10 Lb (4.54 Kg) | 128-006- |
$2,220.00
|
||
|
4" (102mm) | 2.5" (64mm) | 2.875" (73mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 3/4 M | 19" (483mm) | 6 Lb (2.72 Kg) | 128-004- |
$2,050.00
|
||
|
3" (76mm) | 1.75" (44mm) | 1.875" (48mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 3/4 F *RE | 13.75" (349mm) | 2 Lb (0.91 Kg) | 128-003- |
$1,870.00
|
||
|
2" (51mm) | 1.75" (44mm) | 1.875" (48mm) | 90 psi (6.21 bar) | 45 psi (3.1 bar)/103.8' (31.6 m) | 3/4 F *RE | 10.75" (273mm) | 2 Lb (0.91 Kg) | 128-002- |
$1,870.00
|
