Pipe Plug, Low Pressure Gas, 154 Series

Pipe Plug, Multi-Flex® High Expansion, 113 Series

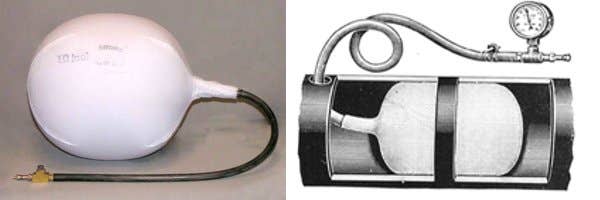

Gas Plugs/Bags with inner bladder made of high quality Nitrile for hydrocarbon resistance and encased in a 100% Polyester fabric cover.

Often used for purging gas lines for welding and maintenance
Very flexible with small deflated diameter to navigate small or constricted openings and block out of round pipelines
Integral inflation hose on smaller sizes
Pressure monitoring gauge available

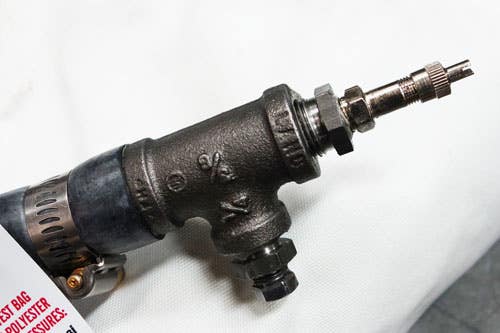

Hose End Schrader Tire Valve with 1/8in. Gauge Port

Pipe Plug, Low Pressure Gas, 154 Series

Click an Item Number for More Information and to Order

Dia. Max	Dia. Deflated	Pipe Plug Inflation Max Press.	Press. Pipeline Max	Port, Inflation	Length Deflated	Item Number	Price	Action
42" (1067mm)	6" (152mm)	1 PSI (0.07 BAR)	0.1 PSI (0.01 BAR) \| 0.2 FT (0.1 M)	Schrader Tire Valve	68" (1727mm) Fabric	154-042-G	$3,640.00	Add to Compare
36" (914mm)	5" (127mm)	3 PSI (0.21 BAR)	0.1 PSI (0.01 BAR) \| 0.2 FT (0.1 M)	Schrader Tire Valve	(mm) Fabric	154-036-G	$2,240.00	Add to Compare
30" (762mm)	5" (127mm)	3 PSI (0.21 BAR)	0.1 PSI (0.01 BAR) \| 0.2 FT (0.1 M)	Schrader Tire Valve	52.5" (1334mm) Fabric	154-030-G	$1,220.00	Add to Compare
24" (610mm)	4" (102mm)	3 PSI (0.21 BAR)	0.2 PSI (0.01 BAR) \| 0.5 FT (0.1 M)	Schrader Tire Valve	39.75" (1010mm) Fabric	154-024-G	$963.00	Add to Compare
20" (508mm)	4" (102mm)	5 PSI (0.34 BAR)	0.2 PSI (0.01 BAR) \| 0.5 FT (0.1 M)	Schrader Tire Valve	32.75" ( 832mm) Fabric	154-020-G	$704.00	Add to Compare
18" (457mm)	3" (76mm)	5 PSI (0.34 BAR)	0.2 PSI (0.01 BAR) \| 0.5 FT (0.1 M)	Schrader Tire Valve	31.5" (800mm) Fabric	154-018-G	$612.00	Add to Compare
16" (406mm)	3" (76mm)	6 PSI (0.41 BAR)	0.2 PSI (0.01 BAR) \| 0.5 FT (0.1 M)	Schrader Tire Valve	28" (711mm) Fabric	154-016-G	$503.00	Add to Compare
14" (356mm)	2.5" (64mm)	6 PSI (0.41 BAR)	0.2 PSI (0.01 BAR) \| 0.5 FT (0.1 M)	Schrader Tire Valve	22.5" (572mm) Fabric	154-014-G	$397.00	Add to Compare
12" (305mm)	2.5" (64mm)	8 PSI (0.55 BAR)	0.3 PSI (0.02 BAR) \| 0.7 FT (0.2 M)	Schrader Tire Valve	22.25" (565mm) Fabric	154-012-G	$257.00	Add to Compare
10" (254mm)	2" (51mm)	10 PSI (0.69 BAR)	0.3 PSI (0.02 BAR) \| 0.7 FT (0.2 M)	Schrader Tire Valve	17.25" (438mm) Fabric	154-010-G	$217.00	Add to Compare
8" (203mm)	2" (51mm)	12 PSI (0.83 BAR)	0.4 PSI (0.03 BAR) \| 0.9 FT (0.3 M)	Schrader Tire Valve	14.5" (368mm) Fabric	154-008-G	$170.00	Add to Compare
6" (152mm)	1.5" (38mm)	15 PSI (1.03 BAR)	0.4 PSI (0.03 BAR) \| 0.9 FT (0.3 M)	Schrader Tire Valve	11.5" (292mm) Fabric	154-006-G	$135.00	Add to Compare
4" (102mm)	1.25" (32mm)	15 PSI (1.03 BAR)	0.4 PSI (0.03 BAR) \| 0.9 FT (0.3 M)	Schrader Tire Valve	8.5" (216mm) Fabric	154-004-G	$102.00	Add to Compare
3" (76mm)	1" (25mm)	15 PSI (1.03 BAR)	0.4 PSI (0.03 BAR) \| 0.9 FT (0.3 M)	Schrader Tire Valve	6.75" (171mm) Fabric	154-003-G	$95.00	Add to Compare
2" (51mm)	1" (25mm)	15 PSI (1.03 BAR)	0.4 PSI (0.03 BAR) \| 0.9 FT (0.3 M)	Schrader Tire Valve	7.5" (191mm) Fabric	154-002-G	$95.00	Add to Compare

The 154 Series Low Pressure Gas Plugs offer a reliable solution for sealing low-pressure gas pipes. These plugs are designed for reliability, with a high-quality nitrile bladder covered in a durable 100% polyester fabric cover. This design guarantees great durability and a secure seal even under challenging conditions.

Ranging from 1" to 48", 154 series gas plugs are adaptable and applicable for many gas system applications. In small pipeline or large ones, these plugs which can really seal tightly to combat any leakages and protect one’s gas infrastructure.

Types of Gas Pipe Plugs Offered by Petersen Products

1. Standard Gas Plugs

The 154 Series Standard Gas Plugs are designed for general use in low-pressure gas pipelines. They are available in a range of sizes, from 1" to 48", to fit various pipe diameters. These plugs are constructed with a tough nitrile bladder covered in a 100% polyester fabric cover, maintaining a secure seal even in low-pressure situations.

Each plug has a conventional Schrader tire valve for easy inflation and deflation, as well as specs designed to give optimal performance for a variety of pipeline applications.

2. Replacement Bags

The 154 Series consists replacement bags to protect the longevity of your gas plugs. These bags are compatible with a variety of plug sizes and are easy to swap out. Replacing the bag extends the plug's life and improves its sealing effectiveness, making it a cost-effective alternative for long-term use.

3. Directional Gas Plugs

The interior curved nylon tube of the 154 Series Directional Gas Plugs allows for easy insertion into the pipeline, providing increased flexibility. This design allows the plug to be directed upstream or downstream, which simplifies the insertion operation. These plugs are ideal for applications requiring precise insertion, as they streamline processes and increase overall functionality.

Key Features of Low-Pressure Gas Pipe Plugs

The 154 Series Low Pressure Gas Plugs are designed to offer reliable sealing for low-pressure gas pipes. Their design focuses on durability and versatility, making them ideal for a wide range of gas system applications.

Durable Construction: 154 Series Low Pressure Gas Plugs are designed to last, with a high-quality nitrile bladder encased in a strong 100% polyester fabric cover. This design assures long-term durability and consistent performance, especially in low-pressure conditions.
Varied Sizes: These gas plugs come in sizes ranging from 1" to 48", making the 154 Series suitable for a wide range of pipe diameters. This flexibility allows a tight, effective seal in a variety of pipeline applications.
Pressure Specifications: These plugs are engineered to handle particular maximum pressures and have deflated diameters that correspond to a variety of pipeline sizes, ensuring reliable sealing under varying conditions.
Inflation Valve: Each individual plug has a typical Schrader folk tire valve for ease of inflating and letting air out. Pressure measuring gauge is suggested in order to control unavoidable pressure accurately but it can be bought separately.

Applications of the 154 Series Low Pressure Gas Plugs

The 154 Series Low Pressure Gas Plugs are flexible equipment used in pipeline management. They are critical for maintaining system integrity and guaranteeing safety in various scenarios:

Gas Pipeline Maintenance: The 154 Series is ideal for sealing low-pressure gas pipelines for maintenance or repairs, providing an effective and secure barrier.
Temporary Line Stopping: Use these plugs to temporarily block gas flow in pipes for emergency repairs or routine inspections, allowing for safe and efficient operations.
System Testing: These gas pipe plugs are ideal for checking pipeline integrity by blocking sections to check for leaks or pressure drops, which ensures system reliability.
Pipeline Installation: Used during the installation of new pipelines to prevent contaminants from entering the system and keep it clean.
Environmental Protection: Prevents the release of gases into the environment during system shutdowns or adjustments, which improves safety and compliance with environmental requirements.

Enhance Your Pipeline Efficiency with 154 Series Gas Plugs

Discover the reliability and flexibility of our 154 Series Low Pressure Gas Plugs today. The plugs are an excellent choice for sealing low-pressure gas pipelines and keeping system integrity intact because they come in different sizes and characteristics that meet your needs.

Don't wait—secure your pipeline with our high-quality gas plugs and enjoy unparalleled performance. Get in contact with us now to take your pipeline management to the next level!
