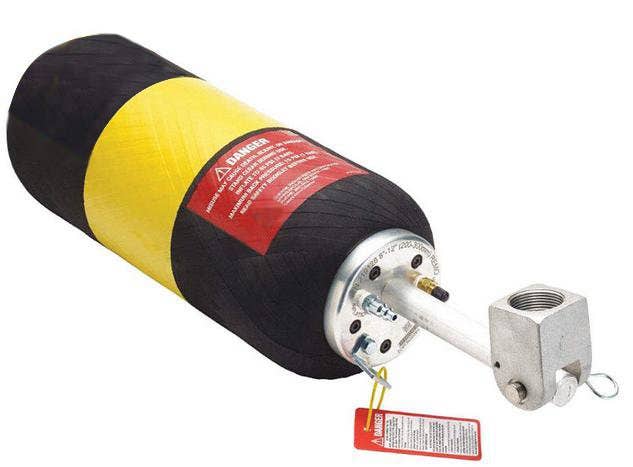

Pipe Plug, Remote Placement, 130-7 Series

Remote Placement Plugs Sizes: 5.5" To 18.25", 130-7 Series

Multi-size design to seal multiple pipe sizes
Can be locked at a 90-degree plug angle to seal openings in manholes at different levels
Can be used as a back plug for sewer tests
Adapters available to convert Municipal Style Muni-Ball® plugs into Remote Placement Plug

Click an Item Number for More Information and to Order

Dia. Max	Dia. Deflated	By-Pass	Pipe Plug Inflation Max Press.	Press. Pipeline Max	Length Deflated	Port, Inflation	Shipping Wt.	Item Number	Price	Action
18.25" (464mm)	10.75" (273mm)	None	45 PSI (3.10 BAR)	15 PSI (1.03 BAR) \| 35 FT (11 M)	25" (635mm)	1/8" FNPT to 1/8" Schrader Tire Valve and 1/8" FNPT to QD Plug	25 Lbs (11.34 Kg)	130-718-	$1,350.00	Add to Compare
12.25" (311mm)	7" (178mm)	None	45 PSI (3.10 BAR)	15 PSI (1.03 BAR) \| 35 FT (11 M)	18.5" (470mm)	1/8" FNPT to 1/8" Schrader Tire Valve and 1/8" FNPT to QD Plug	11 Lbs (4.99 Kg)	130-712-	$741.00	Add to Compare
12.25" (311mm)	5.5" (140mm)	None	45 PSI (3.10 BAR)	15 PSI (1.03 BAR) \| 35 FT (11 M)	25" (635mm)	1/8" FNPT to 1/8" Schrader Tire Valve and 1/8" FNPT to QD Plug	9 Lbs (4.08 Kg)	130-710-	$549.00	Add to Compare
