Pipe Plug, EZ-Swet, Stopper, 148-0 Series
148-Series EZ-Swet Mechanical Line Stopper Plugs Instruction Summary
These plugs have a molded silicone/epdm composite rubber seal.
Repair without draining the entire water system
With this stopper plug, you can go into any situation and have immediate control of the water system
Do the pipe repair as soon as you get to the job. No waiting for water to completely drain.
Have immediate control over draining or siphoning water.
Keep costs down so you can secure more "Contract" work.
Never lose money on "Contract" work due to uncontrollable draining water.
Service hotels, motels, and apartments more easily.
The EZ-Swet easily pays for itself in one or two jobs.
Maximum 60 psig water pressure. Open valve and let water run to reduce pressure if necessary.

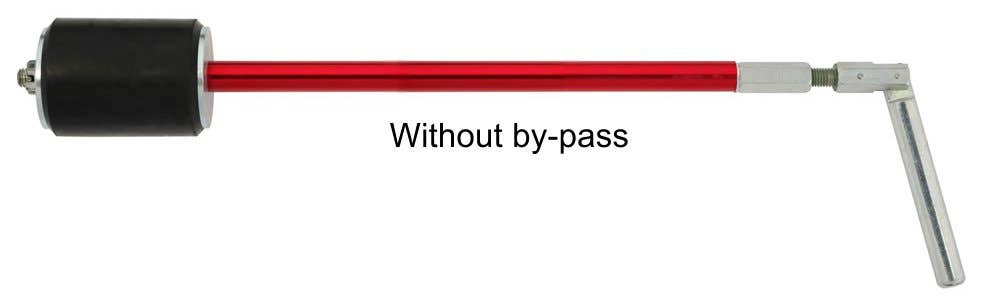

Pipe Plug, EZ-Swet, Stopper, 148-0 Series
| Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|
| 4" | 4" (101.6mm) | 3.8" (96.52mm) | None | 60 psi (4.13 bar) | 5 Lbs (2.27 Kg) | 148-0040- |
$438.00
|
|
|
| 3" | 3" (76.2mm) | 2.75" (69.85mm) | None | 60 psi (4.13 bar) | 4 Lbs (1.81 Kg) | 148-0030- |
$372.00
|
|
|
| 2-1/2" | 2.5" (63.5mm) | 2.3" (58.42mm) | None | 60 psi (4.13 bar) | 3 Lbs (1.36 Kg) | 148-0025- |
$317.00
|
|
|
| 2" | 2" (50.8mm) | 1.77" (44.95mm) | None | 60 psi (4.13 bar) | 2 Lbs (0.91 Kg) | 148-0020- |
$95.50
|
|
|
| 1-1/2" | 1.5" (38mm) | 1.41" (36mm) | None | 60 psi (4.13 bar) | 1 Lb (0.45 Kg) | 148-0015- |
$81.60
|
|
|
| 1-1/4" | 1.25" (32mm) | 1.185" (30mm) | None | 60 psi (4.13 bar) | 1 Lb (0.45 Kg) | 148-0012- |
$77.30
|
|
|
| 1" | 1" (25mm) | 0.86" (21.8mm) | None | 60 psi (4.13 bar) | 1 Lb (0.45 Kg) | 148-0010- |
$65.40
|
|
|
| 1/2" | 0.75" (19.1mm) | 0.65" (16.5mm) | None | 60 psi (4.13 bar) | 1 Lb (0.45 Kg) | 148-0007- |
$63.30
|
|
|
| 3/8" | 0.5" (12.7mm) | 0.465" (11.8mm) | None | 60 psi (4.13 bar) | 1 Lb (0.45 Kg) | 148-0005- |
$58.80
|
|

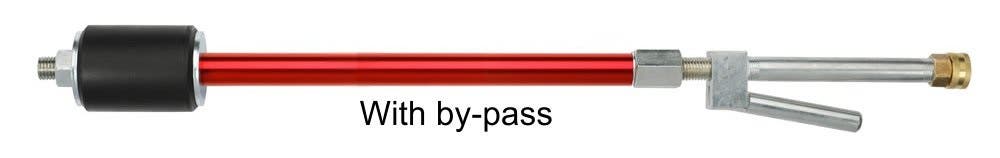

Pipe Plug, EZ-Swet, Bypass, 148-0 Series
| Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 4" | 4" (101.6mm) | 3.8" (96.52mm) | 1/2" NPT | 5 Lbs (2.27 Kg) | 148-0040-8 |
$522.00
|
|
|
| 3" | 3" (76.2mm) | 2.75" (69.85mm) | 1/2" NPT | 4 Lbs (1.81 Kg) | 148-0030-8 |
$453.00
|
|
|
| 2-1/2" | 2.5" (63.5mm) | 2.3" (58.42mm) | 1/2" NPT | 3 Lbs (1.36 Kg) | 148-0025-8 |
$361.00
|
|
