Safety Gags for Mechanical Pipe Plug


Safety Gags, For Mechanical Pipe Plug

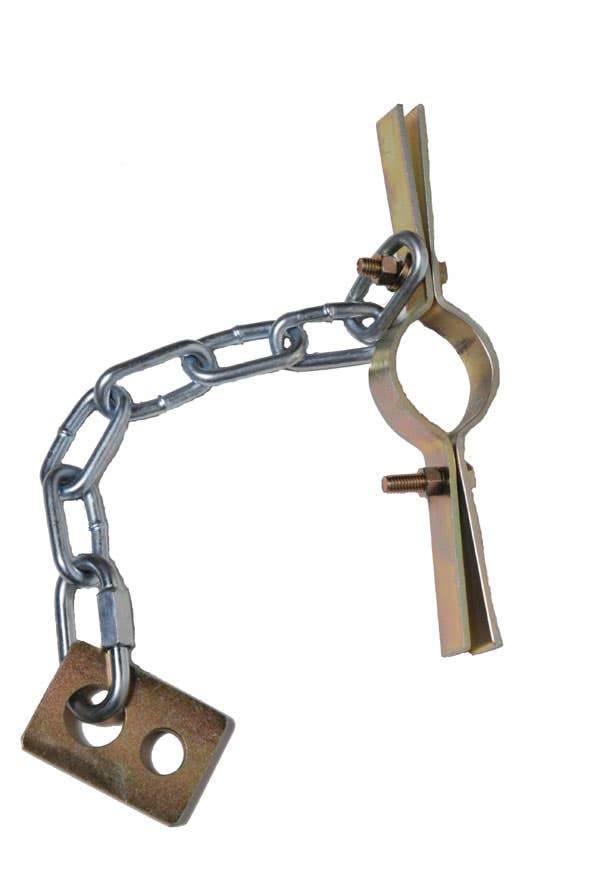

These Safety Gags clamp to the outside diameter of standard pipe sizes for use with mechanical test plugs. They are made with painted carbon steel with plated chain.

Safety Gags

Safety Gags

Safety Gags

Installation Procedure:
Warning: These are general instructions only. Please refer to the appropriate operating procedures for the test plug being utilized. Mechanical Test Plugs are designed to be self-sealing and self-gripping, which facilitate both the seal and the gripper to become tighter as pressure increases. The extra squeeze of the seal and gripper caused by the test pressure can be detected as minor movement of the shaft. Installing the Safety Gag with a tight chain may limit or prevent the small movement of the test plug shaft as pressure is increasing, and subsequently limit or prevent the self-sealing and self-gripping feature of our test plugs. The amount of slack in the chain as well as the position of the installed plug should be observed from a safe distance to insure no appreciable movement of the plug has occurred. Should movement be noted, the test should be stopped and all pressure released immediately.

  1. Install Safety Valve Gag pipe clamp onto pipe being tested. Safety Gags are to be installed with some slack so that movement of the shaft is not prohibited as pressure increases during testing.
  2. Tighten bolts to insure slippage will not occur.
  3. Insert test plug into tube or pipe. Follow appropriate operating procedures for the plugs being utilized, and install plugs per recommended torque values using a calibrated torque wrench.
  4. Prior to pressurizing the system, slip the link over the shaft end. Safety Gags 8" and larger are equipped with two chain and link assemblies. The links are stamped with the shaft sizes they can accommodate. Each link can do at least two sizes of shafts. Insure you have the appropriate link set-up before using. Unscrew the chain connector and switch the link around if necessary.
  5. Continue with appropriate operating procedures.

Note: The gags are not pressure rated, they are used primarily to prevent losing the plug down the pipe. They may help prevent the plug from becoming a projectile but we make rated plug restraints for most pipelines and pressures. Please provide the pipe specifications and pressure that the plug will restrain and we will quote accordingly.

    Pipe Size, Nominal Pipe Plug Inflation Max Press. Shipping Wt. Item Number Price Qty Action
    24" (610mm) Not Pressure Rated 50 Lb (22.68 Kg) 936-5000-2400
    20" (508mm) Not Pressure Rated 45 Lb (20.41 Kg) 936-5000-2000
    18" (457mm) Not Pressure Rated 42 Lb (19.05 Kg) 936-5000-1800
    16" (406mm) Not Pressure Rated 40 Lb (18.14 Kg) 936-5000-1600
    14" (356mm) Not Pressure Rated 30 Lb (13.61 Kg) 936-5000-1400
    12" (305mm) Not Pressure Rated 20 Lb (9.07 Kg) 936-5000-1200
    10" (254mm) Not Pressure Rated 15 Lb (6.80 Kg) 936-5000-1000
    8" (203mm) Not Pressure Rated 11 Lb (4.99 Kg) 936-5000-0800
    6" (152mm) Not Pressure Rated 6 Lb (2.72 Kg) 936-5000-0600
    5" (127mm) Not Pressure Rated 5 Lb (2.27 Kg) 936-5000-0500
    4" (102mm) Not Pressure Rated 4 Lb (1.81 Kg) 936-5000-0400
    3.5" (89mm) Not Pressure Rated 4 Lb (1.81 Kg) 936-5000-0350
    3" (76mm) Not Pressure Rated 4 Lb (1.81 Kg) 936-5000-0300
    2.5" (64mm) Not Pressure Rated 4 Lb (1.81 Kg) 936-5000-0250
    2" (51mm) Not Pressure Rated 4 Lb (1.81 Kg) 936-5000-0200
    1.5" (38mm) Not Pressure Rated 3 Lb (1.36 Kg) 936-5000-0150
    1.25" (32mm) Not Pressure Rated 2 Lb (0.91 Kg) 936-5000-0125
    1" (25mm) Not Pressure Rated 2 Lb (0.91 Kg) 936-5000-0100
    0.75" (19.1mm) Not Pressure Rated 2 Lb (0.91 Kg) 936-5000-0075
