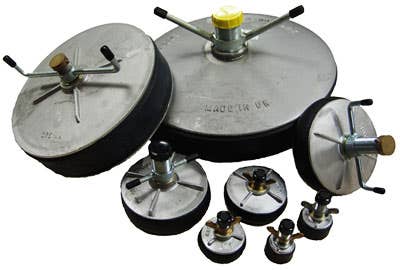

Pipe Plug, Low Pressure Bypass, 141-0 Series
- Lightweight aluminum pipe plugs, up to 70% lighter than similar steel plugs.
- By Pass fill or vent threaded with removable cap.
- Durable cast aluminum body
- Plated steel wing nut or tee handle seal expansion
- Natural Rubber Seal is most effective at mid-range of expansion
- Most Effective at Mid-Range of Expansion
- Other configurations available for most sizes, pressure, chemical, and temperature requirements
141-Series Mechanical Hand Tightening Test Plugs Operation & Maintenance Instructions
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
Pipe Plug, Low Pressure Bypass, 141 Series
| Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 36" (914.4mm) | 36.8" (934.72mm) | 34.5" (876.3mm) | 2.0 BSPP | 96 Lb (43.55 Kg) | 141-0360- |
$2,315.41
|
|
|
| 32" (812.8mm) | 32" (812.8mm) | 31.125" (790.57mm) | 2.0 BSPP | 61 Lb (27.67 Kg) | 141-0320- |
$2,065.08
|
|
|
| 30" (762mm) | 31" (787.4mm) | 29.25" (742.95mm) | 2.0 BSPP | 60 Lb (27.22 Kg) | 141-0300- |
$2,013.52
|
|
|
| 27" (685.8mm) | 27.7" (703.58mm) | 26.25" (666.75mm) | 2.0 BSPP | 44 Lb (19.96 Kg) | 141-0270- |
$1,545.85
|
|
|
| 24" (609.6mm) | 25.5" (647.7mm) | 23.55" (598.17mm) | 2.0 BSPP | 38 Lb (17.24 Kg) | 141-0240- |
$1,105.66
|
|
|
| 21" (533.4mm) | 22.1" (561.34mm) | 20.65" (524.51mm) | 2.0 BSPP | 32 Lb (14.52 Kg) | 141-0210- |
$850.67
|
|
|
| 20" (508mm) | 20.65" (524.51mm) | 19.15" (486.41mm) | 2.0 BSPP | 30 Lb (13.61 kg) | 141-0200- |
$862.96
|
|
|
| 18" (457.2mm) | 19.25" (488.95mm) | 17.45" (443.23mm) | 1.0 BSPP | 18 Lb (8.16 Kg) | 141-0180- |
$671.18
|
|
|
| 16" (406.4mm) | 17" (431.8mm) | 15.6" (396.24mm) | 1.0 BSPP | 14 Lb (6.35 Kg) | 141-0160- |
$590.44
|
|
|
| 15" (381mm) | 15.8" (401.32mm) | 14.35" (364.49mm) | 1.0 BSPP | 14 Lb (6.35 Kg) | 141-0150- |
$522.28
|
|
|
| 14" (355.6mm) | 15.1" (384.54mm) | 13.8" (350.52mm) | 1.0 BSPP | 11.5 Lb (5.22 Kg) | 141-0140- |
$470.24
|
|
|
| 12" (304.8mm) | 12.45" (316.23mm) | 11.35" (288.29mm) | 1.0 BSPP | 8 Lb (3.63 Kg) | 141-0120- |
$378.39
|
|
|
| 11" (279.4mm) | 11.2" (284.48mm) | 10.3" (261.62mm) | 1.0 BSPP | 8 Lb (3.63 Kg) | 141-0110- |
$292.18
|
|
|
| 10" (254mm) | 10.25" (260.35mm) | 9.2" (233.68mm) | 1.0 BSPP | 5 Lb (2.27 Kg) | 141-0100- |
$219.87
|
|
|
| 9" (228.6mm) | 9.1" (231.14mm) | 8.2" (208.28mm) | 1.0 BSPP | 4.5 Lb (2.04 Kg) | 141-0090- |
$205.82
|
|
|
| 8" (203.2mm) | 8.55" (217.17mm) | 7.7" (195.58mm) | 1.0 BSPP | 3.5 Lb (1.59 Kg) | 141-0080- |
$187.39
|
|
|
| 7" (177.8mm) | 7.3" (185.42mm) | 6.55" (166.37mm) | 1.0 BSPP | 3.5 Lb (1.59 Kg) | 141-0070- |
$183.91
|
|
|
| 6" (152.4mm) | 6.55" (166.37mm) | 5.9" (149.86mm) | 0.5 BSPP | 1.5 Lb (0.68 Kg) | 141-0060- |
$80.31
|
|
|
| 5" (127mm) | 5.393" (136.98mm) | 4.842" (122.98mm) | 0.5 BSPP | 2 Lb (0.91 Kg) | 141-0050- |
$74.95
|
|
|
| 4.5" (114.3mm) | 4.724" (119.99mm) | 4.4" (111.76mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0045- |
$57.30
|
|
|
| 4" (101.6mm) | 4.133" (104.97mm) | 3.779" (95.98mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0040- |
$56.88
|
|
|
| 3.5" (88.9mm) | 3.7" (93.98mm) | 3.503" (88.97mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0035- |
$56.23
|
|
|
| 3" (76.2mm) | 3.425" (86.99mm) | 2.795" (70.99mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0030- |
$52.21
|
|
|
| 2.5" (63.5mm) | 2.775" (70.48mm) | 2.44" (61.97mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0025- |
$45.52
|
|
|
| 2" (50.8mm) | 2.44" (61.97mm) | 1.889" (47.98mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0020- |
$38.02
|
|
|
| 1.5" (38.1mm) | 1.889" (47.98mm) | 1.456" (36.98mm) | 0.5 BSPP | 1 Lb (0.45 Kg) | 141-0015- |
$41.35
|
|
