Pipe Plug, Pipe Protector, Spigot, 140 Series
140-0 Series Spigot

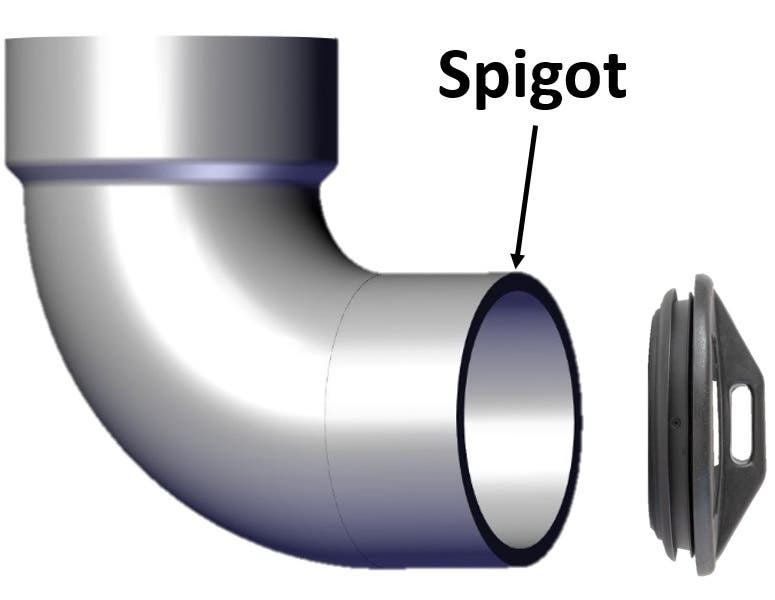

A pipe joint consists of two main components: the bell and the spigot. The spigot end is the smaller end of the pipe that is inserted into the bell.
The non-pressure Pipe Protector Plug is a patented polyethylene plug used to keep all types of pipe clean. If you need to keep your pipe free of water, sand, mud, animals, or just about anything else, this is the answer. It saves time and money and fits pipe from 6" to 60".
Call for freight quote for sizes 16" and larger.
Avoid This!
Need dimensions to get the right plug for your Pipe? Visit our Pipe Specifications Page
| Image | Pipe Size, Nominal | Diameter | Pipe Type | Pipe End | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|
|
60" (1524mm) | Vylon & Pro 21 Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-9S |
$812.00
|
|||
|
|
60" (1524mm) | 60" (1524mm) | Concrete Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-3S |
$735.00
|
||
|
|
60" (1524mm) | Polyethylene Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-2S |
$735.00
|
|||
|
|
60" (1524mm) | 61.81" (1570mm) | Ductile Iron & C-900 Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-1S |
$812.00
|
||
|
|
54" (1372mm) | 53.5" (1359mm) | Vylon & Pro 21 Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-9S |
$733.00
|
||
|
|
54" (1372mm) | 54" (1372mm) | Concrete Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-3S |
$680.00
|
||
|
|
54" (1372mm) | 40.46" (1028mm) | Polyethylene Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-2S |
$680.00
|
||
|
|
54" (1372mm) | 56.17" (1427mm) | Ductile Iron & C-900 Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-1S |
$733.00
|
||
|
|
48" (1219mm) | 47.5"(1207mm) | Vylon & Pro 21 Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-9S |
$435.00
|
||
|
|
48" (1219mm) | 48" (1219mm) | Concrete Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-3S |
$407.00
|
||
|
|
48" (1219mm) | 41.44" (1052mm) | Polyethylene Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-2S |
$407.00
|
||
|
|
48" (1219mm) | 49.53" (1258mm) | Ductile Iron & C-900 Pipe | Spigot | 39 Lb (14.52 Kg) | 140-048-1S |
$435.00
|
||
|
|
42" (1067mm) | 41.5" (1054mm) | Vylon & Pro 21 Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-9S |
$362.00
|
||
|
|
42" (1067mm) | 42" (1067mm) | Concrete Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-3S |
$333.00
|
||
|
|
42" (1067mm) | 36.26" (921mm) | Polyethylene Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-2S |
$333.00
|
||
|
|
42" (1067mm) | 43.31" (1100mm) | Ductile Iron & C-900 Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-1S |
$362.00
|
||
|
|
36" (914mm) | 35.5" (902mm) | Vylon & Pro 21 Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-9S |
$278.00
|
||
|
|
36" (914mm) | Steel Gas | Spigot | 25 Lb (11.34 Kg) | 140-036-8S |
$248.00
|
|||
|
|
36" (914mm) | 36" (914mm) | Concrete Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-3S |
$248.00
|
||
|
|
36" (914mm) | 31.08" (789mm) | Polyethylene Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-2S |
$248.00
|
||
|
|
36" (914mm) | 37.19" (945mm) | Ductile Iron & C-900 Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-1S |
$278.00
|
||
|
|
33" (838mm) | Vylon & Pro 21 Pipe | Spigot | 20 Lb (9.07 Kg) | 140-033-9S |
$267.00
|
|||
|
|
30" (762mm) | 29.5" (749mm) | Vylon & Pro 21 Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-9S |
$252.00
|
||
|
|
30" (762mm) | Steel Gas | Spigot | 18 Lb (8.16 Kg) | 140-030-8S |
$208.00
|
|||
|
|
30" (762mm) | 29.5" (749mm) | Ultra Rib | Spigot | 3 Lb (1.36 Kg) | 140-030-7S |
$252.00
|
||
|
|
30" (762mm) | 28.15" (715mm) | SDR 35 | Spigot | 18 Lb (8.16 Kg) | 140-030-4S |
$252.00
|
||
|
|
30" (762mm) | Concrete Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-3S |
$208.00
|
|||
|
|
30" (762mm) | 25.990" (658mm) | Polyethylene Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-2S |
$208.00
|
||
|
|
30" (762mm) | 30.97" (787mm) | Ductile Iron & C-900 Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-1S |
$252.00
|
||
|
|
27" (686mm) | 26.5" (673mm) | Vylon & Pro 21 Pipe | Spigot | 13 Lb (5.90 Kg) | 140-027-9S |
$210.00
|
||
|
|
27" (686mm) | 26.5" (673mm) | Ultra Rib | Spigot | 13 Lb (5.90 Kg) | 140-027-7S |
$210.00
|
||
|
|
27" (686mm) | SDR 35 | Spigot | 13 Lb (5.90 Kg) | 140-027-4S |
$210.00
|
|||
|
|
27" (686mm) | 27" (686mm) | Concrete Pipe | Spigot | 13 Lb (5.90 Kg) | 140-027-3S |
$170.00
|
||
|
|
24" (610mm) | 23.5" (597mm) | Vylon & Pro 21 Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-9S |
$170.00
|
||
|
|
24" (610mm) | 22.624" (575mm) | Steel Gas | Spigot | 9 Lb (4.08 Kg) | 140-024-8S |
$132.00
|
||
|
|
24" (610mm) | 23.5" (597mm) | Ultra Rib | Spigot | 9 Lb (4.08 Kg) | 140-024-7S |
$170.00
|
||
|
|
24" (610mm) | 22.15" (563mm) | SDR 26 | Spigot | 9 Lb (4.08 Kg) | 140-024-5S |
$137.00
|
||
|
|
24" (610mm) | 22.52" (572mm) | SDR 35 | Spigot | 9 Lb (4.08 Kg) | 140-024-4S |
$137.00
|
||
|
|
24" (610mm) | 24" (610mm) | Concrete Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-3S |
$132.00
|
||
|
|
24" (610mm) | 16.73" (425mm) | Polyethylene Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-2S |
$132.00
|
||
|
|
24" (610mm) | 24.85" (631mm) | Ductile Iron & C-900 Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-1S |
$170.00
|
||
|
|
21" (533mm) | Vylon & Pro 21 Pipe | Spigot | 8 Lb (3.63 Kg) | 140-021-9S |
$0.00
|
|||
|
|
21" (533mm) | 20.75" (527mm) | Ultra Rib | Spigot | 8 Lb (3.63 Kg) | 140-021-7S |
$158.00
|
||
|
|
21" (533mm) | SDR 26 | Spigot | 8 Lb (3.63 Kg) | 140-021-5S |
$127.00
|
|||
|
|
21" (533mm) | SDR 35 | Spigot | 8 Lb (3.63 Kg) | 140-021-4S |
$127.00
|
|||
|
|
20" (508mm) | 20.69" (526mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-020-1S |
$152.00
|
||
|
|
18" (457mm) | 16.29" (414mm) | Steel Gas Pipe | Spigot | 3 Lb (1.36 Kg) | 140-018-8S |
$108.00
|
||
|
|
18 " (457mm) | 17.65" (448mm) | Ultra Rib | Spigot | 7 Lb (3.18 Kg) | 140-018-7S |
$132.00
|
||
|
|
18" (457mm) | 16.62" (422mm) | SDR 26 | Spigot | 7 Lb (3.18 Kg) | 140-018-5S |
$108.00
|
||
|
|
18" (457mm) | 16.89" (429mm) | SDR 35 | Spigot | 7 Lb (3.18 Kg) | 140-018-4S |
$108.00
|
||
|
|
18" (457mm) | 18" (457mm) | Concrete Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-3S |
$108.00
|
||
|
|
18" (457mm) | 12.55" (319mm) | Polyethylene Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-2S |
$108.00
|
||
|
|
18" (457mm) | 18.61" (473mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-1S |
$132.00
|
||
|
|
16" (406mm) | 16.53" (420mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-016-1S |
$115.00
|
||
|
|
15" (381mm) | Steel Gas | Spigot | 6 Lb (2.72 Kg) | 140-015-8S |
$98.30
|
|||
|
|
15" (381mm) | 14.37" (365mm) | Ultra Rib | Spigot | 6 Lb (2.72 Kg) | 140-015-7S |
$112.00
|
||
|
|
15" (381mm) | SDR 26 | Spigot | 6 Lb (2.72 Kg) | 140-015-5S |
$98.30
|
|||
|
|
15" (381mm) | SDR 35 | Spigot | 6 Lb (2.72 Kg) | 140-015-4S |
$98.30
|
|||
|
|
15" (381mm) | 15" (381mm) | Concrete Pipe | Spigot | 6 Lb (2.72 Kg) | 140-015-3S |
$98.30
|
||
|
|
15" (381mm) | Polyethylene Pipe | Spigot | 6 Lb (2.72 Kg) | 140-015-2S |
$98.30
|
|||
|
|
14" (356mm) | 14.45" (367mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-014-1S |
$108.00
|
||
|
|
12" (305mm) | Steel Gas | Spigot | 4 Lb (1.81 Kg) | 140-012-8S |
$83.30
|
|||
|
|
12" (305mm) | 11.74" (298mm) | Ultra Rib | Spigot | 4 Lb (1.81 Kg) | 140-012-7S |
$103.00
|
||
|
|
12" (305mm) | 11.54" (293mm) | SDR 21 & 26 (cl 160) | Spigot | 4 Lb (1.81 Kg) | 140-012-6S |
$83.30
|
||
|
|
12" (305mm) | 11.77" (299mm) | SDR 26 | Spigot | 4 Lb (1.81 Kg) | 140-012-5S |
$83.30
|
||
|
|
12" (305mm) | 11.97" (304mm) | SDR 35 | Spigot | 4 Lb (1.81 Kg) | 140-012-4S |
$83.30
|
||
|
|
12" (305mm) | 12" (305mm) | Concrete Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-3S |
$83.30
|
||
|
|
12" (305mm) | 8.89" (226mm) | Polyethylene Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-2S |
$83.30
|
||
|
|
12" (305mm) | 12.45" (316mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-1S |
$103.00
|
||
|
|
10" (254mm) | 9.86" (250mm) | Ultra Rib | Spigot | 4 Lb (1.81 Kg) | 140-010-7S |
$78.30
|
||
|
|
10" (254mm) | 9.73" (247mm) | SDR 21 & 26 (cl 160) | Spigot | 4 Lb (1.81 Kg) | 140-010-6S |
$75.00
|
||
|
|
10" (254mm) | 9.92" (252mm) | SDR 26 | Spigot | 4 Lb (1.81 Kg) | 140-010-5S |
$75.00
|
||
|
|
10" (254mm) | 10.09" (256mm) | SDR 35 | Spigot | 4 Lb (1.81 Kg) | 140-010-4S |
$75.00
|
||
|
|
10 " (254mm) | 10" (254mm) | Concrete Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-3S |
$75.00
|
||
|
|
10" (254mm) | 7.49" (190mm) | Polyethylene Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-2S |
$75.00
|
||
|
|
10" (254mm) | 10.39" (264mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-1S |
$78.30
|
||
|
|
8" (203mm) | 7.981" (203mm) | Steel Gas | Spigot | 3 Lb (1.36 Kg) | 140-008-8S |
$40.00
|
||
|
|
8" (203mm) | 7.89" (200mm) | Ultra Rib | Spigot | 3 Lb (1.36 Kg) | 140-008-7S |
$45.00
|
||
|
|
8" (203mm) | 7.8" (198mm) | SDR 21 & 26 (cl 160) | Spigot | 3 Lb (1.36 Kg) | 140-008-6S |
$40.00
|
||
|
|
8" (203mm) | 7.96" (202mm) | SDR 26 | Spigot | 3 Lb (1.36 Kg) | 140-008-5S |
$40.00
|
||
|
|
8" (203mm) | 8.09" (205mm) | SDR 35 | Spigot | 3 Lb (1.36 Kg) | 140-008-4S |
$40.00
|
||
|
|
8" (203mm) | 8" (203mm) | Concrete Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-3S |
$40.00
|
||
|
|
8" (203mm) | 6.01" (153mm) | Polyethylene Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-2S |
$40.00
|
||
|
|
8" (203mm) | 8.38" (213mm) | Ductile Iron & C-900 Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-1S |
$45.00
|
||
|
|
6" (152mm) | 6.065" (154mm) | Steel Gas | Spigot | 3 Lb (1.36 Kg) | 140-006-8S |
$35.00
|
||
|
|
6" (152mm) | 5.99" (152mm) | SDR 21 & 26 (cl 160) | Spigot | 3 Lb (1.36 Kg) | 140-006-6S |
$35.00
|
||
|
|
6" (152mm) | 6.12" (155mm) | SDR 26 | Spigot | 3 Lb (1.36 Kg) | 140-006-5S |
$35.00
|
||
|
|
6" (152mm) | 6.22" (158mm) | SDR 35 | Spigot | 3 Lb (1.36 Kg) | 140-006-4S |
$35.00
|
||
|
|
6" (152mm) | 6" (152mm) | Concrete Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-3S |
$35.00
|
||
|
|
6" (152mm) | 4.62"(117mm) | Polyethylene Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-2S |
$35.00
|
||
|
|
6" (152mm) | 6.27" (159mm) | Ductile Iron & C-900 Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-1S |
$38.30
|
