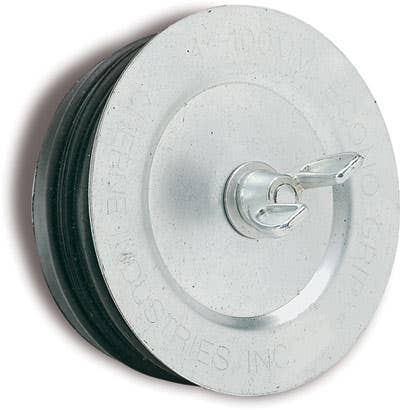

Pipe Plug, Steel Wing Nut, 143-3 Series
- These plugs have a SBR/Natural rubber o-ring.
- These steel plugs for pipe feature plated metal plates and bolts with a SBR/Natural rubber o-ring.
- Cost effective way for plugging open ended pipes.
- Can be used as pipe dust cover.
- These plugs are not pressure rated
143-3-Series Mechanical Hand Tightening Test Plugs Operation & Maintenance Instructions
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
Pipe Plug, Steel Wing Nut, 143-3 Series
Pipe Size, Nominal | Sealing Range, Max | Sealing Range, Min | Style | By-Pass | Shipping Wt. | Item Number | Price | Qty | Action |
---|---|---|---|---|---|---|---|---|---|
6" (150mm) | 6.4" (162mm) | 5.62" (143mm) | End of Pipe Plug | None | 2 Lbs (0.91 Kg) | 143-3060- |
$13.30
|
|
|
5" (125mm) | 5.3" (135mm) | 4.62" (117mm) | End of Pipe Plug | None | 2 Lbs (0.91 Kg) | 143-3050- |
$11.60
|
|
|
4" (100mm) | 4.5" (114mm) | 3.78" (96mm) | End of Pipe Plug | None | 1 Lb (0.45 Kg) | 143-3040- |
$6.23
|
|
|
3" (75mm) | 3.25" (82mm) | 2.86" (73mm) | End of Pipe Plug | None | 1 Lb (0.45 Kg) | 143-3030- |
$4.98
|
|
|
2" (50mm) | 2.25" (57mm) | 1.96" (50mm) | End of Pipe Plug | None | 0.5 Lb (0.23 Kg) | 143-3020- |
$3.18
|
|
|
1.5" (40mm) | 1.65" (42mm) | 1.44" (37mm) | End of Pipe Plug | None | 0.5 Lb (0.23 Kg) | 143-3015- |
$2.94
|
|
Pipe Plug, Stainless Steel Wing Nut, 143-3 Series
Pipe Size, Nominal | Sealing Range, Max | Sealing Range, Min | Style | By-Pass | Shipping Wt. | Item Number | Price | Qty | Action |
---|---|---|---|---|---|---|---|---|---|
6" (152mm) | 6.4" (163mm) | 5.62" (143mm) | End of Pipe Plug | None | 2 Lbs (0.91 Kg) | 143-3060-C |
$53.30
|
|
|
5" (125mm) | 5.3" (135mm) | 4.62" (117mm) | End of Pipe Plug | None | 2 Lb (0.91 Kg) | 143-3050-C |
$48.10
|
|
|
4" (100mm) | 4.3" (109mm) | 3.78" (96mm) | End of Pipe Plug | None | 1 Lb (0.45 Kg) | 143-3040-C |
$30.30
|
|
|
3" (75mm) | 3.25" (82mm) | 2.86" (73mm) | End of Pipe Plug | None | 1 Lb (0.45 Kg) | 143-3030-C |
$24.40
|
|
|
2" (50mm) | 2.25" (57mm) | 1.96" (50mm) | End of Pipe Plug | None | 0.5 Lb (0.23 Kg) | 143-3020-C |
$15.20
|
|
|
1.5" (40mm) | 1.65" (42mm) | 1.44" (37mm) | End of Pipe Plug | None | 0.5 Lb (0.23 Kg) | 143-3015-C |
$13.90
|
|
