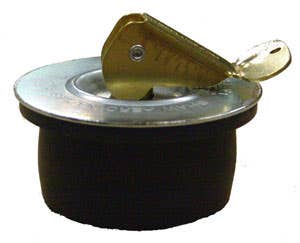

Lever Type Expandable Rubber Plugs come standard with Neoprene rubber.
Extremely versatile and cost effective expansion plugs for many applications.
- Brass lever type handle provides an excellent grip to fasten the plug into a hole
- Plugs have a brass handle and zinc-plated steel hardware
- Can be used to hang products or seal holes
- Low cost
- Light weight
- Reusable rubber plugs for holes
- Easily installed, no tools required
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions

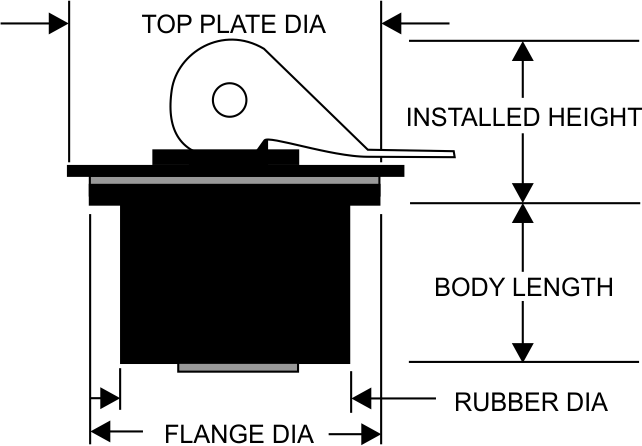

| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
4" (102mm) | 4.378" (111mm) | 3.94" (100mm) | None | 1 Lb (0.45 Kg) | 143-1400- |
$72.60
|
||
|
3-1/2" (89mm) | 3.756" (95mm) | 3.38" (86mm) | None | 1 Lb (0.45 Kg) | 143-1350- |
$70.80
|
||
|
2-7/8" (73mm) | 3.178" (81mm) | 2.86" (73mm) | None | 1 Lb (0.45 Kg) | 143-1288- |
$63.20
|
||
|
2-5/8" (67mm) | 2.811" (71mm) | 2.53" (64mm) | None | 1 Lb (0.45 Kg) | 143-1263- |
$58.50
|
||
|
2-1/8" (54mm) | 2.289" (58mm) | 2.06" (52mm) | None | 1 Lb (0.45 Kg) | 143-1213- |
$53.10
|
||
|
1-7/8" (48mm) | 1.944" (49mm) | 1.75" (44mm) | None | 1 Lb (0.45 Kg) | 143-1188- |
$49.10
|
||
|
1-1/4" (32mm) | 1.322" (34mm) | 1.19" (30mm) | None | 1 Lb (0.45 Kg) | 143-1125- |
$39.30
|
||
|
15/16" (23.8mm) | 1.007" (26mm) | 0.906" (23.0mm) | None | 1 Lb (0.45 Kg) | 143-1094- |
$30.00
|
||
|
7/8" (22.2mm) | 0.944" (23.9mm) | 0.85" (21.5mm) | None | 1 Lb (0.45 Kg) | 143-1088- |
$27.80
|
||
|
3/4" (19.1mm) | 0.799" (20.2mm) | 0.719" (18.2mm) | None | 1 Lb (0.45 Kg) | 143-1075- |
$26.60
|
||
|
5/8" (15.8mm) | 0.68" (17.2mm) | 0.612" (15.5mm) | None | 1 Lb (0.45 Kg) | 143-1063- |
$22.20
|
||
|
9/16" (14.2mm) | 0.611" (15.5mm) | 0.55" (13.9mm) | None | 1 Lb (0.45 Kg) | 143-1056- |
$20.40
|
||
|
7/16" (11.1mm) | 0.451" (11.4mm) | 0.406" (10.3mm) | None | 1 Lb (0.45 Kg) | 143-1044- |
$17.80
|
