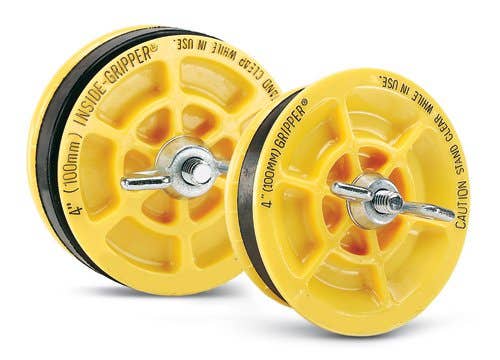

These Plugs can be used in a variety of applications including DWV (drain, waste and vent) testing and stack testing.
End of pipe design won't fall in, whereas the inside of pipe design allows you to locate the plug inside the pipe as far as you need.
Time tested, this Plug remains one of the most popular mechanical plugs on the market.
Features include:
- Ideal for sewer testing and long-term applications
- Plug made with glass-reinforced ABS plastic
- End of pipe design seals only at the end of a pipe
- Inside of pipe design seals inside pipe as far as needed
Equipped with:
- Easy to install extra large zinc wing nut - won't rust
- Natural rubber o-ring
- Galvanized carriage bolt to prevent corrosion
Always block plugs when conducting air tests
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Pipeline Pressure Max Head | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8" (203mm) | 8.03" (204mm) | 7.7" (196mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 3 Lbs (1.36 Kg) | 143-9080-E |
$60.90
|
||
|
6" (152mm) | 6.08" (154mm) | 5.77" (147mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 2 Lbs (0.91 Kg) | 143-9060-E |
$32.00
|
||
|
4" (102mm) | 4.06" (103mm) | 3.8" (97mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 1 Lb (0.45 Kg) | 143-9040-E |
$11.80
|
||
|
3" (76mm) | 3.1" (79mm) | 2.8" (71mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 1 Lb (0.45 Kg) | 143-9030-E |
$9.65
|
||
|
2" (51mm) | 2.17" (55mm) | 1.9" (48mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 1 Lb (0.45 Kg) | 143-9020-E |
$7.15
|
||
|
1-1/2" (38mm) | 1.65" (42mm) | 1.48" (38mm) | None | 17 psi (1.19 bar) | 40 ft (12.19 m) | 1 Lb (0.45 Kg) | 143-9015-E |
$6.25
|
These Plugs can be used in a variety of applications including DWV (drain, waste and vent) testing and stack testing.
End of pipe design won't fall in, whereas the inside of pipe design allows you to locate the plug inside the pipe as far as you need.
Time tested, this Plug remains one of the most popular mechanical plugs on the market.
Features include:
- Ideal for sewer testing and long-term applications
- Plug made with glass-reinforced ABS plastic
- End of pipe design seals only at the end of a pipe
- Inside of pipe design seals inside pipe as far as needed
Equipped with:
- Easy to install extra large zinc wing nut - won't rust
- Natural rubber o-ring
- Galvanized carriage bolt to prevent corrosion
Always block plugs when conducting air tests
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Pipeline Pressure Max Head | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
8" (203mm) | 8.03" (204mm) | 7.7" (196mm) | None | 17 psi (1.2 bar)/40' (12 m) | 40 ft (12.19 m) | 3 Lbs (1.36 Kg) | 143-9080- |
$60.90
|
||
|
6" (152mm) | 6.08" (154mm) | 5.77" (147mm) | None | 17.3 psi (1.19 bar) | 40 ft (12.19 m) | 2 Lbs (0.91 Kg) | 143-9060- |
$32.00
|
||
|
4" (102mm) | 4.06" (103mm) | 3.8" (97mm) | None | 17.3 psi (1.19 bar) | 40 ft (12.19 m) | 1 Lb (0.45 Kg) | 143-9040- |
$11.85
|
