The 140-4 Counter Sunk Style has a heavy duty 12 gauge stainless steel top plate for use in areas of heavy traffic areas such as driveways, doorways, sidewalks, or warehouse floor drains where heavy machinery can be driven over it. It will sit flush to the floor. Gasket to the top of the stainless steel plate is 1/4". These plugs are non pressure rated.
These non-pressure flush mount pipe plugs have a stainless steel hex expansion screw, a neoprene gasket, and ABS construction for use in commercial applications. Commonly used where carpeting will be laid over a clean out as in an office or finished basement.
Installation: These flush mount pipe plugs use a 5/32" allen wrench for installation and removal and are considered a tamper proof expansion plug. To install plug simply hand tighten the screw to the right until snug. Do not over tighten. To remove plug turn screw to the left, lightly tap the screw then remove the plug.
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | Dia., Top Plate, OD | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
Sch 10, 4" | 4.61" (117mm) | 4.2" (107mm) | 5.34" (136mm) | 1 Lb (0.45 Kg) | 140-4040- |
$51.30
|
||
|
Sch 10, 3.5" | 4.15" (105mm) | 3.82" (97mm) | 4.85" (123mm) | 1 Lb (0.45 Kg) | 140-4035- |
$48.40
|
||
|
Sch 10, 3" | 3.48" (88mm) | 3.04" (77mm) | 4.03" (102mm) | 1 Lb (0.45 Kg) | 140-4030- |
$45.40
|
||
|
Sch 10, 2.5" | 3.19" (81mm) | 2.72" (69mm) | 3.65" (93mm) | 1 Lb (0.45 Kg) | 140-4025- |
$35.40
|
||
|
Sch 10, 2" | 2.33" (59mm) | 2.09" (53mm) | 2.5" (64mm) | 1 Lb (0.45 Kg) | 140-4020- |
$32.00
|
||
|
Sch 10, 1.5" | 1.95" (49mm) | 1.64" (42mm) | 2.5" (64mm) | 1 Lb (0.45 Kg) | 140-4015- |
$30.60
|

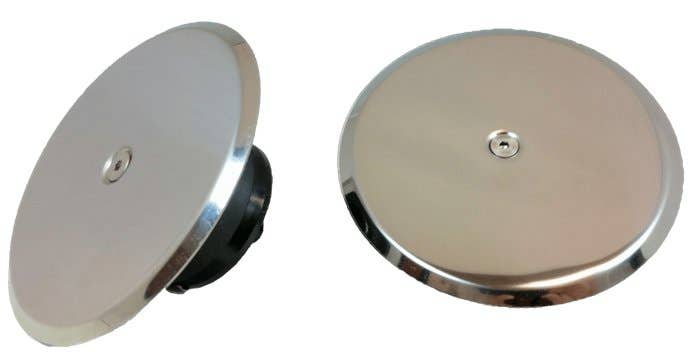

The 140-5 Finishing Plate Style is for lighter duty walking traffic Beveled plate will sit atop the floor surface. These plugs are non-pressure rated.
These non-pressure flush mount pipe plugs have a stainless steel hex expansion screw, a neoprene gasket, and ABS construction for use in commercial applications. Commonly used where carpeting will be laid over a clean out as in an office or finished basement. The Finishing Plate style may be used for wall applications..
Installation: These flush mount pipe plugs use a 5/32" allen wrench for installation and removal and are considered a tamper proof expansion plug. To install plug simply hand tighten the screw to the right until snug. Do not over tighten. To remove plug turn screw to the left, lightly tap the screw then remove the plug.
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Pipe Size, Nominal | Dia. Max | Dia. Min | Dia., Top Plate, OD | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
Sch 10, 4" | 4.45" (112mm) | 4.2" (107mm) | 8" (203mm) | 1 Lb (0.45 Kg) | 140-5040- |
$36.40
|
||
|
Sch 10, 3.5" | 4.15" (105mm) | 3.82" (97mm) | 6" (152mm) | 1 Lb (0.45 Kg) | 140-5035- |
$30.10
|
||
|
Sch 10, 3" | 3.48" (88mm) | 3.04" (77mm) | 6" (152mm) | 1 Lb (0.45 Kg) | 140-5030- |
$29.70
|
||
|
Sch 10, 2.5" | 3.19" (75mm) | 2.72" (69mm) | 6" (152mm) | 1 Lb (0.45 Kg) | 140-5025- |
$29.10
|
||
|
Sch 10, 2" | 2.33" (59mm) | 2.09" (53mm) | 4" (102mm) | 1 Lb (0.45 Kg) | 140-5020- |
$22.00
|
||
|
Sch 10, 1.5" | 1.95" (49mm) | 1.64" (42mm) | 4" (102mm) | 1 Lb (0.45 Kg) | 140-5015- |
$21.80
|
