Monitor Well Plugs, 142-8 Series

Pipe Plug, Well Monitoring, 142-8 Series

Monitor Well Locking Plug features include:

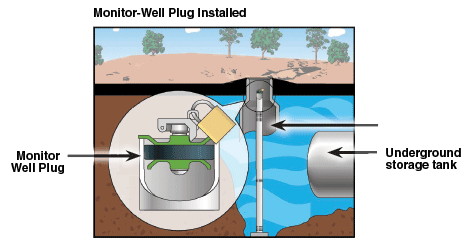

Designed to seal monitor wells
Meets all EPA requirements for locking plugs
Sized to seal Schedule 40 piping
2" and 4" sizes can also seal Schedule 5 pipe
Works with solid brass padlock (sold separately)

Equipped with:

Chemical and petroleum-resistant Estaloc™ plastic top and bottom plates
Petroleum resistant nitrile o-ring
Stainless steel carriage bolt
Yellow chromate-coated locking latch

Mechanical Pipe Plugs Without Integral Restraint Generic Operating

Monitor Well Plugs Sizes: 1" to 8" Prices and Specifications, 142-8 Series

Pipe Plug, Well Monitoring, 142-8 Series

Click an Item Number for More Information and to Order

Image	Pipe Size, Nominal	Dia. Max	Dia. Min	Pipeline Max PSI	Pipeline Pressure Max Head	Length	Shipping Wt.	Item Number	Price	Qty	Order or Compare
	8" (200mm)	8.03" (204mm)	7.76" (197mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		3 Lb (1.36 Kg)	142-808-	$155.00		Add to Compare
	6" (150mm)	6.08" (155mm)	5.77" (147mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		2 Lbs (0.91 Kg)	142-806-	$90.55		Add to Compare
	4" (100mm)	4.38" (111mm)	3.8" (97mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		1 Lb (0.45 Kg)	142-804-	$35.70		Add to Compare
	3" (75mm)	3.1" (79mm)	2.8" (71mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		1 Lb (0.45 Kg)	142-803-	$32.10		Add to Compare
	2" (50mm)	2.31" (59mm)	1.9" (49mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		1 Lb (0.45 Kg)	142-802-	$30.70		Add to Compare
	1"-1.25" (25mm-30mm)	1.38" (35mm)	1" (25mm)	6.5 psi (0.45 bar)	15 ft (4.5 m)		1 Lb (0.45 Kg)	142-8012-	$27.30		Add to Compare

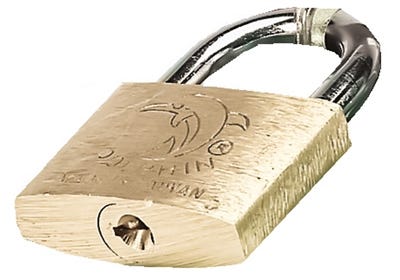

	Pad Lock, Size #2						1 Lb (0.45 Kg)	142-800 -	$7.95		Add to Compare
