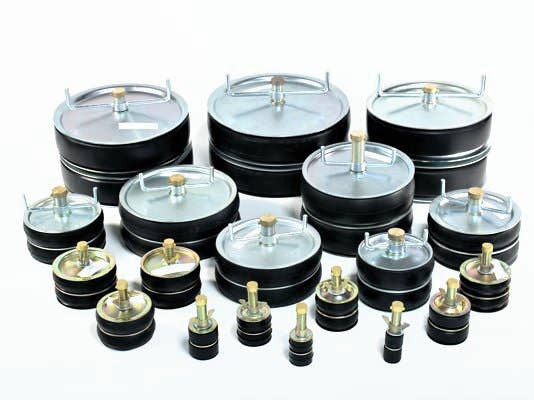

Double Seal Wing Nut Pipe Plugs features include:
- Lightweight aluminum pipe plugs, up to 70% lighter than similar steel plugs.
- By Pass fill or vent threaded with removable cap.
- Durable cast aluminum body
- Plated steel wing nut or tee handle seal expansion
- Natural Rubber Seal is most effective at mid-range of expansion
- Most Effective at Mid-Range of Expansion
- Other configurations available for most sizes, pressure, chemical, and temperature requirements
141-Series Mechanical Hand Tightening Test Plugs Operation & Maintenance Instructions
Mechanical Pipe Plugs Without Integral Restraint Generic Operating Instructions
| Image | Dia. Max | Dia. Min | By-Pass | Pipeline Max PSI | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
16.7" (425mm) | 15.6" (390mm) | 1.0 BSPP | 5 psi (0.34 bar) | 14 Lb (6.35 Kg) | 141-2160- |
$393.00
|
||
|
15.7" (400mm) | 14.4" (365mm) | 1.0 BSPP | 5 psi (0.34 bar) | 32 Lb (14.51 Kg) | 141-2150- |
$321.00
|
||
|
14.7" (375mm) | 13.4" (340mm) | 1.0 BSPP | 5 psi (0.34 bar) | 11.5 Lb (5.22 Kg) | 141-2140- |
$225.00
|
||
|
12.3" (314mm) | 11.7" (296mm) | 1.0 BSPP | 7 psi (0.48 bar) | 8 Lb (3.63 Kg) | 141-2120- |
$113.00
|
||
|
12" (305mm) | 10.8" (275mm) | 1.0 BSPP | 7 psi (0.48 bar) | 8 Lb (3.63 Kg) | 141-2110- |
$112.00
|
||
|
10.2" (260mm) | 9.6" (244mm) | 1.0 BSPP | 7 psi (0.48 bar) | 5 Lb (2.27 Kg) | 141-2100- |
$78.30
|
||
|
9.3" (235mm) | 8.5" (216mm) | 1.0 BSPP | 7 psi (0.48 bar) | 4.5 Lb (2.04 Kg) | 141-2090- |
$99.20
|
||
|
8.3" (211mm) | 7.5" (191mm) | 1.0 BSPP | 7 psi (0.48 bar) | 3.5 Lb (1.59 Kg) | 141-2080- |
$73.40
|
||
|
7.7" (195mm) | 6.7" (170mm) | 1.0 BSPP | 7 psi (0.48 bar) | 3.5 Lb (1.59 Kg) | 141-2070- |
$65.00
|
||
|
6.4" (163mm) | 5.7" (146mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1.5 Lb (0.68 Kg) | 141-2060- |
$31.50
|
||
|
5.8" (148mm) | 5.4" (138mm) | 0.5 BSPP | 7 psi (0.48 bar) | 2 Lb (0.91 Kg) | 141-2055- |
$32.00
|
||
|
5.4" (138mm) | 4.8" (121mm) | 0.5 BSPP | 7 psi (0.48 bar) | 2 Lb (0.91 Kg) | 141-2050- |
$31.30
|
||
|
4.7" (120mm) | 4.3" (110mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2045- |
$59.14
|
||
|
4.3" (110mm) | 3.7" (94mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2040- |
$19.80
|
||
|
3.7" (95mm) | 3.4" (85mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2035- |
$43.44
|
||
|
3.5" (85mm) | 2.9" (75mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2030- |
$18.50
|
||
|
2.9" (75mm) | 2.4" (61mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2025- |
$18.30
|
||
|
2.4" (60mm) | 1.9" (49mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2020- |
$19.00
|
||
|
1.889" (48mm) | 1.456" (37mm) | 0.5 BSPP | 7 psi (0.48 bar) | 1 Lb (0.45 Kg) | 141-2015- |
$46.25
|
