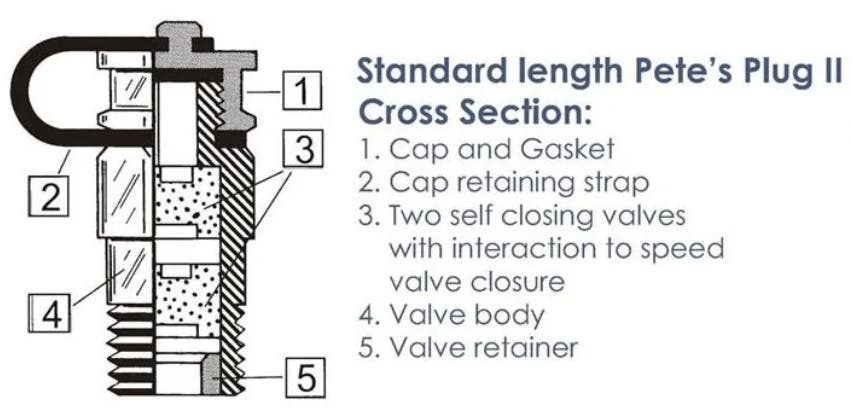

Pete's Plugs® allow you to take pressure and temperature readings quickly without leaving costly gauges on the line
- Quickly take a temperature or pressure reading
- Self closing Neoprene or Nordel valves after probe removed
- Cap to protect and additional seal
- 1/8”, ¼”. & ½” NPT pipe connections
- For 1/16” & 1/8” probes
- Brass or Stainless-Steel housing
Neoprene Valve (blue strap) resists waxes, fats, oils, greases, petroleum products, and most refrigerants. Can be used for natural gas applications.
Nordel Valve (yellow strap) is an ethylene-propylene based synthetic rubber for hot and cold water, low steam, detergents, phosphate esters, ketone, alcohols, and glycols.
This information is a general guide on Pete's pressure and temperature test plug II and the product should be tested for applicability under actual conditions.
Note: Pete's Plugs® are the registered trademark of Peterson Equipment Company and is in no way affiliated with Petersen Products® other than being available for purchase.
| Image | Pipe Size | Lngth, Body | Material | Material, Valve | Dia., Probe | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|
|
1/4" MNPT | 1.2" (30.48mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-910- |
$18.30
|
||
|
1/4" MNPT | 1.2" (30.48mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-900- |
$18.30
|
||
|
1/2" MNPT | 1.5" (38.1mm) | Stainless Steel | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-810- |
$119.00
|
||
|
1/2" MNPT | 1.5" (38.1mm) | Stainless Steel | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-800- |
$119.00
|
||
|
3/4" - 16 NFT NOT NPT | 1.5" (38.1mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-760- |
$20.30
|
||
|
3/4" - 16 NFT NOT NPT | 1.5" (38.1mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-750- |
$20.30
|
||
|
1/2" MNPT | 3" (76.2mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-710-XL |
$21.60
|
||
|
1/2" MNPT | 1.5" (38.1mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-710- |
$16.10
|
||
|
1/2" MNPT | 3" (76.2mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg0 | 311-700-XL |
$21.60
|
||
|
1/2" MNPT | 1.5" (38.1mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-700- |
$16.10
|
||
|
9/16" MALE UNF | 1.5" (38.1mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-572- |
$16.70
|
||
|
9/16" MALE UNF | 1.5" (38.1mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-562- |
$16.70
|
||
|
1/4" MNPT | 1.5" (38.1mm) | Stainless Steel | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-410- |
$77.30
|
||
|
1/4" MNPT | 1.5" (38.1mm) | Stainless Steel | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-400- |
$77.30
|
||
|
3/8" MNPT | 1.5" (38.1mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-310- |
$21.60
|
||
|
3/8" MNPT | 1.5" (38.1mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-300- |
$21.60
|
||
|
1/8" MNPT | 1.25" (31.75mm) | Brass | Neoprene | 1/16" (1.588mm) | 0.5 Lb (0.23 Kg) | 311-125-00 |
$15.30
|
||
|
1/4" MNPT | 3" (76.2mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (1.23 Kg) | 311-110-XL |
$18.20
|
||
|
1/4" MNPT | 1.5" (38.1mm) | Brass | Nordel | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-110- |
$12.20
|
||
|
1/4" MNPT | 3" (76.2mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-100-XL |
$18.20
|
||
|
1/4" BSP | 1.5" (38.10 mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-100-B |
$12.90
|
||
|
1/4" MNPT | 1.5" (38.1mm) | Brass | Neoprene | 1/8" (3.175mm) | 0.5 Lb (0.23 Kg) | 311-100- |
$12.20
|
Temperature and Pressure Kits come with pressure gauges, thermometers and probe adapters in a protective carry case.
| Image | Description | Comment 1 | Comment 2 | Comment 3 | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|
|
Test Kit with Protective Carrying Case | Contains Two (2) Digital Thermometers -58°-571°F (-50°-299° C) | Contains One (1) 0-100 psi (0-6.89 bar) 0-700 kPa Pressure Gauge | Contains One Brass 1/8" x 3" & One Stainless Steel 1/8" x 1-1/2" Probe Pressure Gauge Adapters | 2.5 Lb (1.13 Kg) | 312-1500-XLKIT |
$404.08
|
||
|
Test Kit with Protective Carrying Case | Contains Two (2) Digital Thermometers -58°-571°F (-50°-299° C) | Contains One (1) 0-100 psi (0-6.89 bar) 0-700 kPa Pressure Gauge | Contains One (1) 1/8" x 3" Probe Pressure Gauge Adapter | 2 Lb (0.91 Kg) | 312-1500-XL |
$339.48
|
||
|
Test Kit with Protective Carrying Case | Contains Two (2) Digital Thermometers -58°-571°F (-50°-299° C) | Contains One (1) 0-100 psi (0-6.89 bar) 0-700 kPa Pressure Gauge | Contains Two (2) 1/8" x 1-1/2" Probe Pressure Gauge Adapters | 2 Lb (0.91 Kg) | 312-1500- |
$345.00
|
The pressure gauge adapter has a probe constructed of 304 stainless steel. The probe is 1/8" in diameter and extends 2" (1 1/2" exposed probe) on the 312-500 adapter and 3-1/2" (3" exposed probe) on the 312-500-XL adapter. The 1/8" diameter probe operates in either the 1/4" or 1/2" Plug. The 312-500-XL Pressure Gauge Probe Adapter will operate in any of the Plugs. Browse pressure gauge plug accessories below.
| Image | Size | Material | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|
|
1/8" Dia X 1-1/2" Long Probe | Stainless Steel | 0.5 Lb (0.23 Kg) | 312-520- |
$64.60
|
||
|
1/16" Dia. X 1 1/2" Long Probe | Brass Body, SS Probe | 0.5 Lb (0.23 Kg) | 312-510- |
$30.70
|
||
|
1/8" Dia. 3" Long Probe | Brass Body, SS Probe | 0.5 Lb (0.23 Kg) | 312-500-XL |
$35.20
|
||
|
1/8" Dia. 1.5" Long Probe | Brass Body, SS Probe | 0.5 Lb (0.23 Kg) | 312-500- |
$22.80
|
The 3-1/2" pressure gauge plug has an ASME B accuracy of 3/2/3% (2% in middle of scale). It has an adjustable red altitude pointer with a psi and feet of water scale.
| Image | Pressure | Connection Type | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|
|
0-300 psi (0-20.69 bar), 0-2100 kPa | 1/4" MNPT (Brass) | 1 Lb (0.45 Kg) | 312-800-B300 |
$31.56
|
||
|
0-200 psi (0-13.80 bar), 0-1400 kPa 460FT H20 | 1/4" MNPT (Brass) | 1 Lb (0.45 Kg) | 312-800-B200 |
$31.56
|
||
|
0-100 psi (0-6.89 bar), 0-700 kPa | 1/4" MNPT (Brass) | 1 Lb (0.45 Kg) | 312-800-B |
$31.56
|
The analog thermometers are constructed of stainless steel, has a 1-3/4" dial and accuracy within 1/2% over the entire scale. Recalibrations is by turning the hex nut on the back of the dial case with stem immersed in a known temperature bath. Digital thermometers have the same specifications as above but can not be recalibrated in the field.
| Image | Style | Temperature Rating F | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|
|
Digital, Cannot Recalibrate | -58° F (-50° C) to 571° F (299° C) | 0.5 Lb (0.23 Kg) | 312-606- |
$28.42
|
