Parachutes, Stringers, Ventilators
Provides up to 2,350 CFM as a blow-in ventilator and up to 3,470 CFM as a suction ventilator
* - CFM performance based on independent laboratory tests. When tested side-by-side at an independent air flow laboratory, Petersen's line stringer, ventilator, and smoke blower beat the competition at every flow condition.
Fan Assembly Features:
- For use as a line stringer, ventilator and smoke blower
- Made of lightweight, cast aluminum
- Foam base minimizes vibration
- 30" Diameter base plate
Equipped with:
- 5HP Briggs & Stratton engine
- Top-mounted handles for easy maneuverability

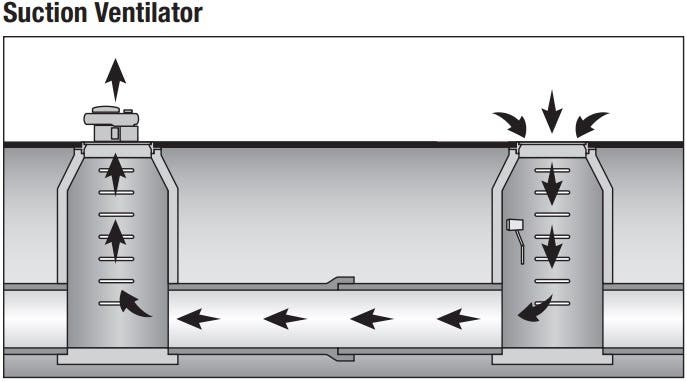

Blow-In/Suction Ventilator Usage Details:
- Supports OSHA guidelines for confined space entry
- Provides up to 2,350 CFM as a blow-in ventilator and up to 3,470 CFM as a suction ventilator
- Out-performs similar competitive models by 40% at 3" of static pressure

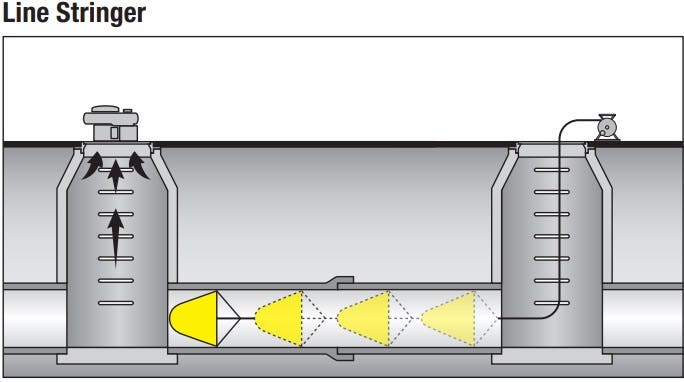

Line Stringer Usage Details:
- Will string a 300' section of sewer line in under a minute without plugging the line
- Line stringer vacuum pulls a lightweight nylon parachute through wet or dry lines
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
Replacement Fan: Line Stringer/Ventilator (Right Pitch) | 4 Lb (1.81 Kg) | 938-9817- |
$313.00
|
||
|
Fan Assembly: Briggs & Stratton Engine | 92 Lb (41.73 Kg) | 938-9816- |
$2,590.00
|
||
|

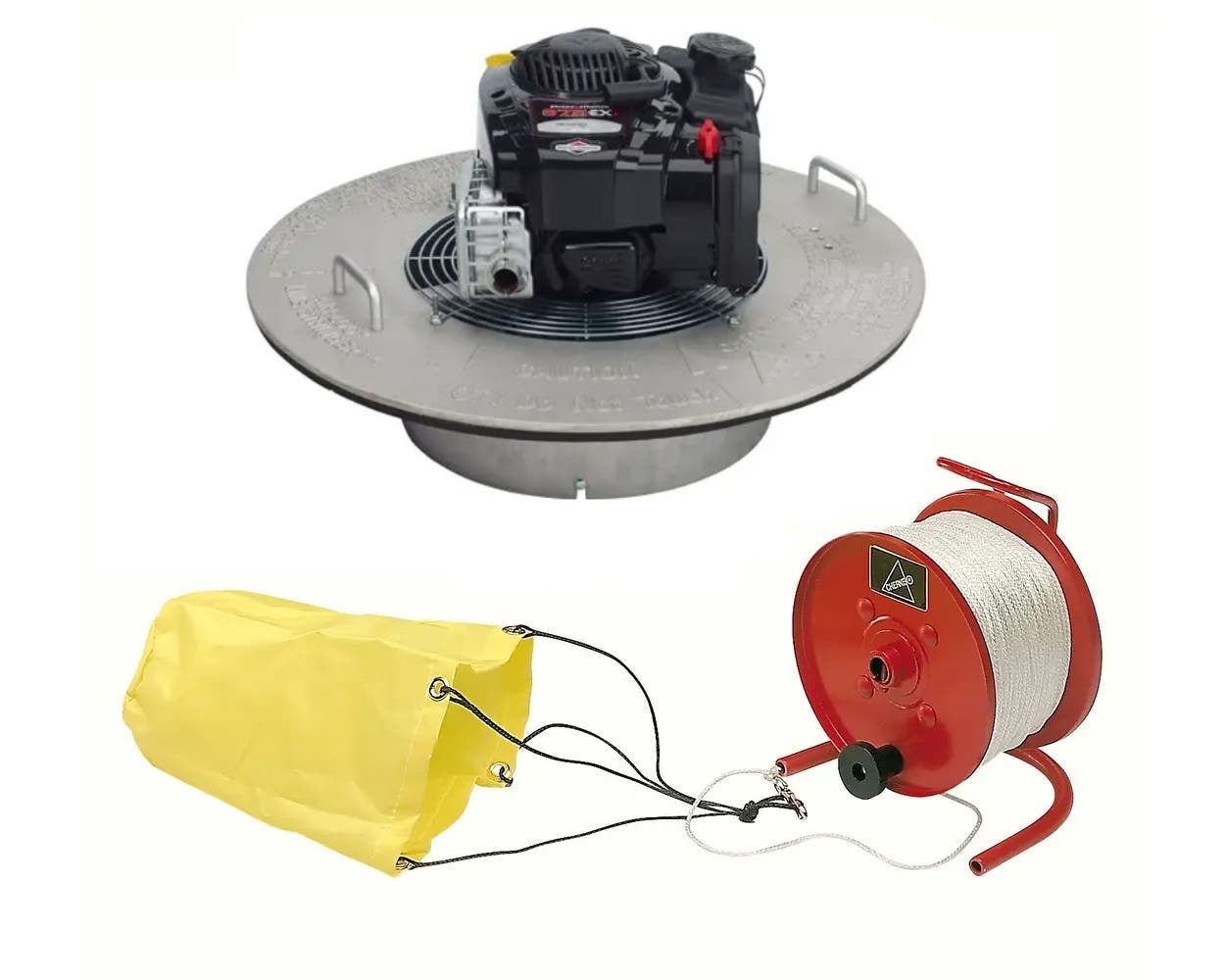

Line Stringer Kit: Briggs & Stratton Engine, 1000' Nylon Rope/Reel, 6-10" Parachute | 112 Lb (50.80 Kg) | 938-9810-0610 |
$3,180.00
|
||
|
18"-36" (457-914 mm) Parachute | 2 Lb (0.91 Kg) | 938-9800-1836 |
$227.00
|
||
|
10"-18" (254-457 mm) Parachute | 1 Lb (0.45 Kg) | 938-9800-1018 |
$140.00
|
||
|
1000' (304.8 m) Nylon Rope and Reel | 11 Lb (4.99 Kg) | 938-9800-1000 |
$591.00
|
||
|
8"-12" (203-305 mm) Parachute | 1 Lb (0.45 Kg) | 938-9800-0812 |
$130.00
|
||
|
6"-10" (152-254 mm) Parachute | 1 Lb (0.45 Kg) | 938-9800-0610 |
$126.00
|
||
|
4" (101.6 mm) Parachute | 1 Lb (0.45 Kg) | 938-9800-0104 |
$104.00
|
