Contractor Tools
Manhole Winch, Jack, Hook. Etc
Manhole Jack (Hose Guide)
- Guides air hoses and cables at pipe invert in manhole
- Zinc-plated for corrosion resistance
- Fits pipe sizes 5" - 24"
- Includes eye bolt for securing rope and ease of retrieval
Manhole Roller (Hose Guide)
- Guides air hoses and cables at pipe invert in manhole
- Adjustable push-in system
- Installs at surface - no need to enter the manhole
Manhole Winch
- Drags plugs in leak location testing
- Feeds Pipeline Cleaning Ball down line for sewer cleaning
- Normal pull strength up to 550 pounds
- 500 feet 3/32" diameter steel cable

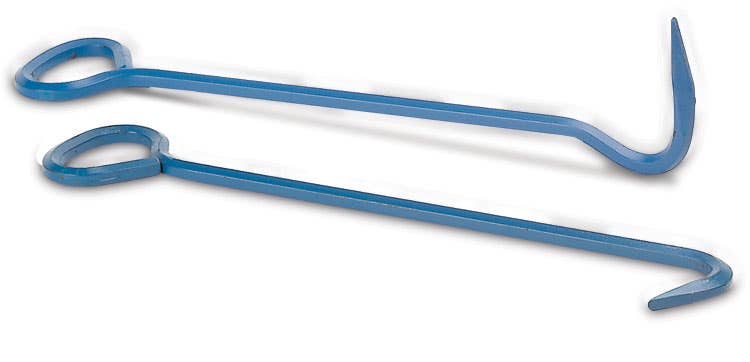

Manhole Cover Hooks
- Forged hexagonal steel for extra strength
- Available with flat or 90 degree handles
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
Cable Winch | 65 Lb (29.48 Kg) | 938-7826- |
$2,610.00
|
|
|
|
Manhole Roller (Hose Guide) | 30 Lb (13.61 Kg) | 938-7825- |
$1,020.00
|
|
|
|
Manhole Jack (Hose Guide) | 27 Lb (12.25 Kg) | 938-7824- |
$877.00
|
|
|
|
Gauge, 9-30" Hg, 3" Dial (Replacement Part) | 2 Lb (0.91 Kg) | 938-7823- |
$174.00
|
|
|
|
Gauge, 0-60 psi, 2" Dial (Replacement Part) | 1 Lb (0.45 Kg) | 938-7822- |
$52.30
|
|
|
|
Hose (20' 6096 mm) and Gauge Assembly (Replacement Part) | 22 Lb (9.98 Kg) | 938-7820- |
$538.00
|
|
|
|
36" Manhole Cover Hook with 90° | 5 Lb (2.27 Kg) | 938-7800-3690 |
$74.30
|
|
|
|
36" Manhole Cover Hook with Flat Handle | 5 Lb (2.27 Kg) | 938-7800-36 |
$58.20
|
|
|
|
24" Manhole Cover Hook with 90° | 4 Lb (1.81 Kg) | 938-7800-2490 |
$69.50
|
|
|
|
24" Manhole Cover Hook with Flat Handle | 4 Lb (1.81 Kg) | 938-7800-24 |
$45.30
|
|
StrapFab Tools
Model A StrapFab 938-744A
Works great for HVAC, garage door braces, brackets and hangers. Model A works with mild steel up to 1" wide. This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
Features
- 5 Ton Capacity
- Works with 1" wide Strap
- Bends Steel Strap 1” Wide (from 1/8” to 3/16” thick max)
- Cuts steel strap 1” wide (from 1/8” to 3/16” thick max)
- Punches holes 9/32” dia (from 1/16” to 3/8” Dia)
- Cuts threaded rod (up to ¼” dia. max)
- Bends Round Steel Rod (up to ¼” dia. max)
- Cuts angle iron (2” x 2” x 1/8” thick)
- Twists steel strap 1” wide (from 1/8” to 3/16” thick max
- Working material (Mild steel)

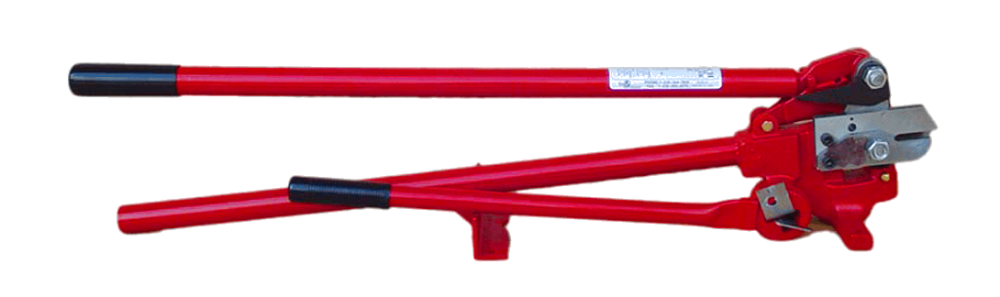

Model B StrapFab 938-721B
Works great for masonry and working with stainless steel. Model B works with mild or stainless steel up to 1" wide. This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
Features
- 7.5 Ton Capacity
- Works with 1" wide Strap
- Bends steel strap 1” wide (from 1/8” to 1/4” thick max)
- Cuts steel strap 1” wide (from 1/8” to 1/4” thick max)
- Punches holes 13/32” dia (from 1/8” to 1/2” Dia)
- Cuts threaded rod (up to 3/8” dia. max)
- Bends threaded rod (up to 3/8” dia. max)
- Cuts angle iron (2” x 2” x 1/4” thick)
- Twists steel strap 1” wide (from 1/8” to 3/16” thick max)
- Working material (Mild or Stainless steel)
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
5 Ton Capacity StrapFab works with Mild Steel up to 1" wide to Bend, Cut, Punch or Twist | 32 Lb (14.52 Kg) | 938-744A- |
$1,220.00
|
|
|
|
7.5 Ton Capacity StrapFab works with Mild or Stainless Steel up to 1" wide to Bend, Cut, Punch or Twist | 35 Lb (15.88 Kg) | 938-721B- |
$1,800.00
|
|
