StrapFab Tools

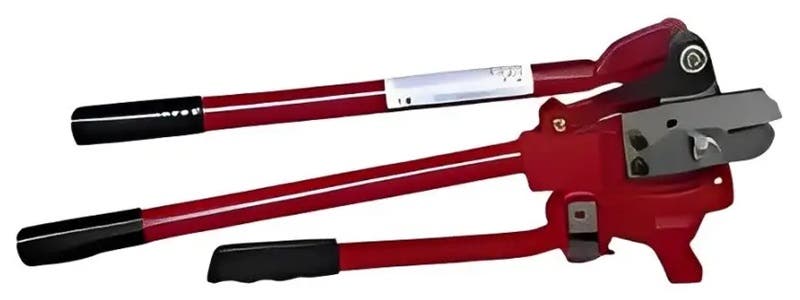

5 Ton Model A StrapFab 938-744A
Works great for HVAC, garage door braces, brackets and hangers. Model A works with mild steel up to 1" wide. This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
Features
- 5 Ton Capacity
- Works with 1" wide Strap
- Bends Steel Strap 1” Wide (from 1/8” to 3/16” thick max)
- Cuts steel strap 1” wide (from 1/8” to 3/16” thick max)
- Punches holes 9/32” dia (from 1/16” to 3/8” Dia)
- Cuts threaded rod (up to ¼” dia. max)
- Bends Round Steel Rod (up to ¼” dia. max)
- Cuts angle iron (2” x 2” x 1/8” thick)
- Twists steel strap 1” wide (from 1/8” to 3/16” thick max
- Working material (Mild steel)

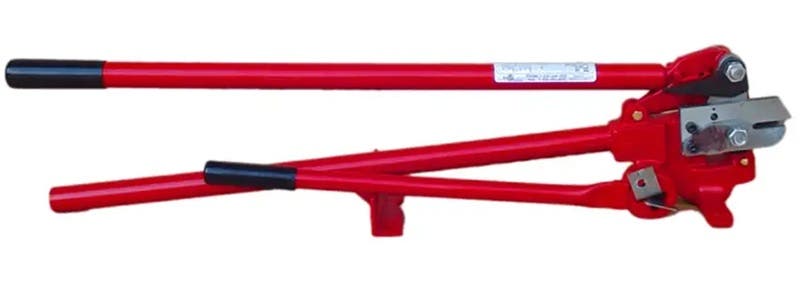

7.5 Ton Model B StrapFab 938-721B
Works great for masonry and working with stainless steel. Model B works with mild or stainless steel up to 1" wide. This 7 in 1 tool will fabricate the custom brackets, hangers, and bracing you need to keep the job running.
Features
- 7.5 Ton Capacity
- Works with 1" wide Strap
- Bends steel strap 1” wide (from 1/8” to 1/4” thick max)
- Cuts steel strap 1” wide (from 1/8” to 1/4” thick max)
- Punches holes 13/32” dia (from 1/8” to 1/2” Dia)
- Cuts threaded rod (up to 3/8” dia. max)
- Bends threaded rod (up to 3/8” dia. max)
- Cuts angle iron (2” x 2” x 1/4” thick)
- Twists steel strap 1” wide (from 1/8” to 3/16” thick max)
- Working material (Mild or Stainless steel)
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|
|
5 Ton Capacity StrapFab works with Mild Steel up to 1" wide to Bend, Cut, Punch or Twist | 32 Lb (14.52 Kg) | 938-744A- |
$1,281.00
|
||
|
7.5 Ton Capacity StrapFab works with Mild or Stainless Steel up to 1" wide to Bend, Cut, Punch or Twist | 35 Lb (15.88 Kg) | 938-721B- |
$1,890.00
|
