Air Lift Bags, High PSI, Flat Form 161-0 Series

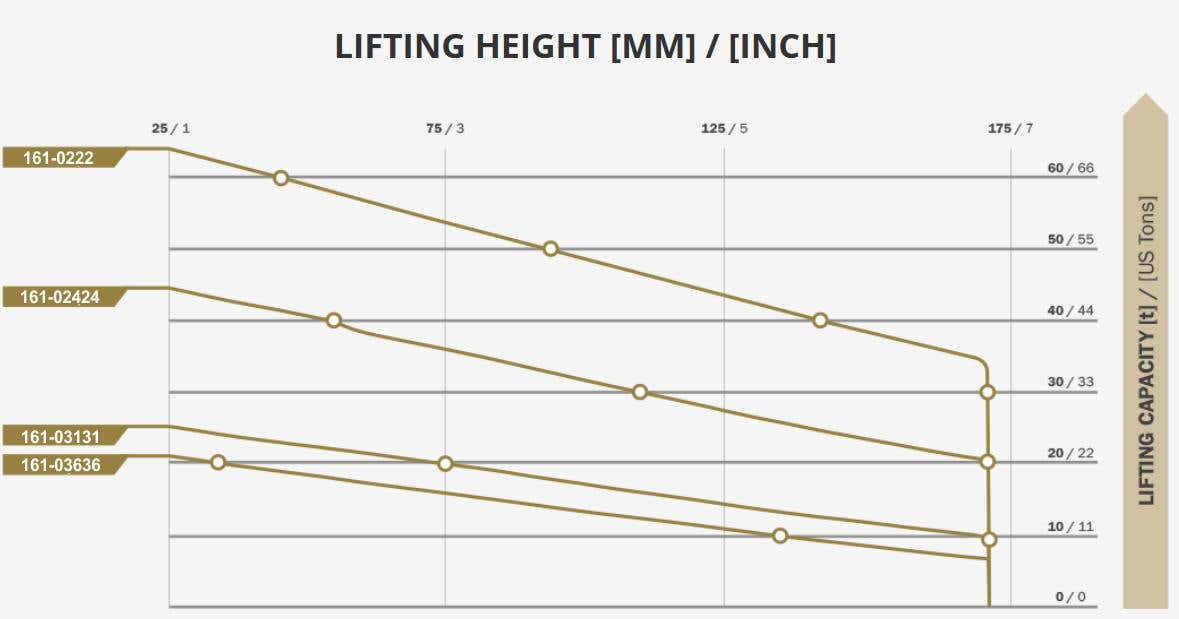

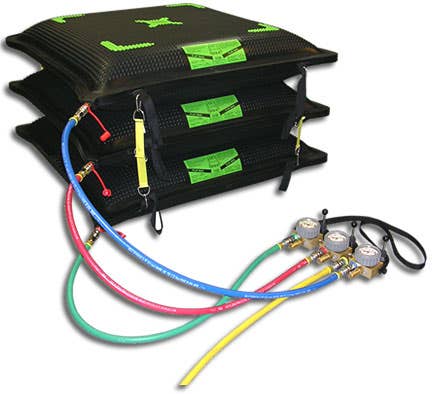

These pneumatic high pressure flat form heavy lifting air bags are reinforced with Kevlar® cord for heavy duty, low profile heavy lifting, emergency rescue, HAZMAT management or industrial use. The Flat Form design bags eliminate the need for complicated height/weight computation graphs and uncertain lifting height calculations. Simply stated, a 34.1 ton bag will lift 34.1 tons to the specified height (see table). The inflatable Flat Form air bags for lifting safely link together when stacked, eliminating slipping or violent ejection. Maximum of three bags can be safely stacked (maximum two bags for 161-1212). Flat air bags retain their flat profile, eliminating rolling and shifting. Heavy duty design and Kevlar reinforcing ensure long life.
- Made of Kevlar® reinforced *NR-SBR rubber compound.
- * NR = Isoprene rubber, natural. SBR = Styrene-butadiene rubber.
- Operating Temperature: -40°F to 130°F
161-Series High Pressure Lifting Air Bags Operating Instructions and specifications
| Image | Size | Thickness | Lift Height Max | Max Load, Tons | Pipe Plug Inflation Max Press. | Air Consumption CFM | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12" X 12" (305mm X 305mm) | 1" (25mm) | 6.3" (160mm) | Max Lifting Capacity is 6.1 US Tons | 116 PSI (8.00 BAR) | 1.5 cu/Ft. (42l) | 4 Lb (1.81 Kg) | 161-1212- |
$722.40
|
||
|
36" X 36" (914mm X 914mm) | 1" (25mm) | 6.7" (170mm) | Max Lifting Capacity at Max Lift Height is 36.6 US Tons | 116 PSI (8.00 BAR) | 28.6 cu/Ft (810 l) | 45 Lb (20.41 Kg) | 161-03636- |
$5,860.00
|
||
|
31" X 31" (787mm X 787mm) | 1" (25mm) | 8" (203.20mm) | Max Lifting Capacity at Max Lift Height is 22.2 US Tons | 116 PSI (8.00 BAR) | 18.4 cu/Ft (520 l) | 32 Lb (14.52 Kg) | 161-03131- |
$3,860.00
|
||
|
24"X24" (610mm X 610mm) | 1" (25mm) | 6.7" (170mm) | Max Lifting Capacity at Max Lift Height is 10.5 US Tons | 116 PSI (8.00 BAR) | 12.4 cu/Ft (350 l) | 20 Lb (9.07 Kg) | 161-02424- |
$2,470.00
|
||
|
22" X 22" (559mm X 559mm) | 1" (25mm) | 6.7" (170mm) | Max Lifting Capacity at Max Lift Height is 7.4 US Tons | 116 PSI (8.00 BAR) | 7.9 cu/Ft. (224 l) | 16 Lb (7.26 Kg) | 161-02222- |
$1,330.00
|
