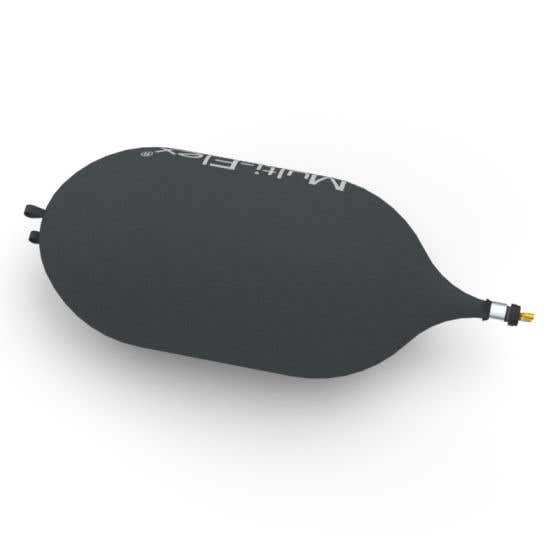

Pipe Plug, Inflatable, Multi-Flex®, 30" Dia
$1,210.00
13 In stock
SKU
113-030-
| Country of Origin | USA |
|---|---|
| Dia. Deflated | 5" (127mm) |
| Dia. Max | 30" (762mm) |
| Length Deflated | 94" (2387mm) |
| Length Overall Inflated, Est. | 75.8" (2002mm) |
| Length, Contact | 34"(863.6mm) |
| Length, Contact Max | 34"(863.6mm) |
| Material, Metal Components | Aluminum and Plated Carbon Steel |
| Material, Outer Ply | Ballistic Nylon |
| Package Dimensions | 37" X 9" X9" |
| Port, Inflation | 2" MNPT to 1/2" QD Plug |
| Port, PSI Monitor | 1/4" QD Cplg |
| Pressure Pipeline Max Head | 4.5 psi (0.31 bar)/10' (3.2 m) |
| Pressure, Inflation Max | 9 psi (0.62 bar) |
| Sage Subcategory Number | W113 |
| Shipping Wt. | 16 Lb (7.26 Kg) |
| Temperature Max. Service F | 200 F (93.33 C) |
