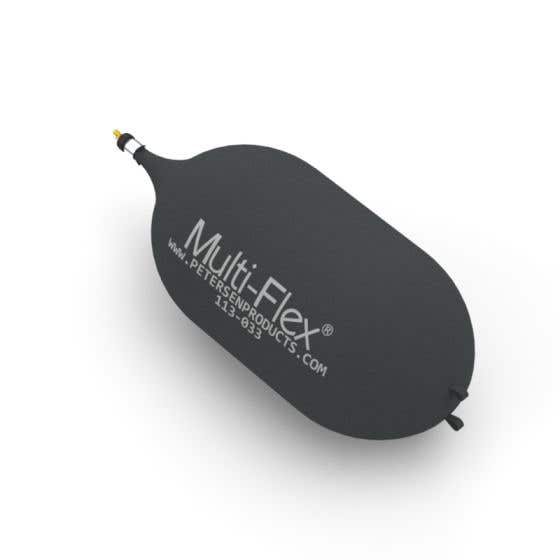

Pipe Plug, Inflatable, Multi-Flex®, 33" Dia

$1,390.00
SKU
113-033-
More Information
Material, Outer Ply Ballistic Nylon
Package Dimensions 36" X 8" X 8"
Pipeline Max Head 4.5 psi (0.31 bar)/10' (3.2 m)
Port, Inflation 2" MNPT to 1/2" QD Plug
Port, PSI Monitor 1/4" QD Cplg
Infl. Max Pressure 9 psi (0.62 bar)
Shipping Wt. 14 Lb (6.35 Kg)
Temperature Max. Service F 200 F (93.33 C)
Material, Metal Components Aluminum and Plated Carbon Steel
Length, Contact Min 18.5" (470mm)
Country of Origin USA
Dia. Deflated 5" (127mm)
Dia. Max 33" (838mm)
Lngth Deflated 79" (2007mm)
Length Overall Inflated, Est. 59.2" (1505mm)
Length, Contact 25" (635mm)
Length, Contact Max 29.5" (749mm)
Sage Subcategory Number W113
Pipe Plug, Inflatable, Multi-Flex®, 33" Dia
More Information
Material, Outer Ply Ballistic Nylon
Package Dimensions 36" X 8" X 8"
Pipeline Max Head 4.5 psi (0.31 bar)/10' (3.2 m)
Port, Inflation 2" MNPT to 1/2" QD Plug
Port, PSI Monitor 1/4" QD Cplg
Infl. Max Pressure 9 psi (0.62 bar)
Shipping Wt. 14 Lb (6.35 Kg)
Temperature Max. Service F 200 F (93.33 C)
Material, Metal Components Aluminum and Plated Carbon Steel
Length, Contact Min 18.5" (470mm)
Country of Origin USA
Dia. Deflated 5" (127mm)
Dia. Max 33" (838mm)
Lngth Deflated 79" (2007mm)
Length Overall Inflated, Est. 59.2" (1505mm)
Length, Contact 25" (635mm)
Length, Contact Max 29.5" (749mm)
Sage Subcategory Number W113
