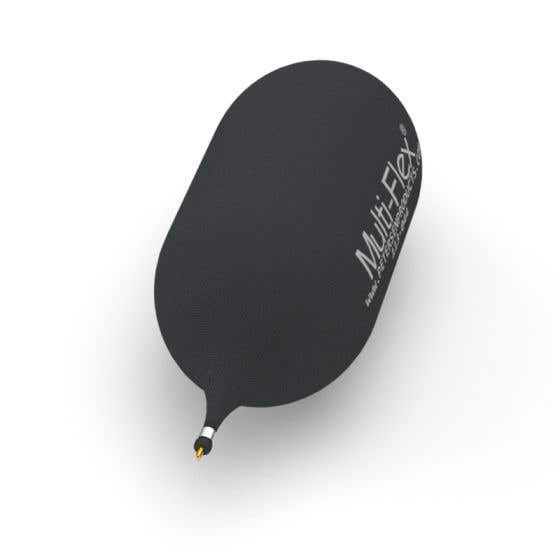

Pipe Plug, Inflatable, Multi-Flex®, 44" Dia
$2,420.00
| Country of Origin | USA |
|---|---|
| Dia. Deflated | 6" (152mm) |
| Dia. Max | 44" (1118mm) |
| Length Deflated | 106.5" (2705mm) |
| Length Overall Inflated, Est. | 103.1" (2619mm) |
| Length, Contact | 33" (838mm) - 40.3" (1024mm) |
| Length, Contact Max | 40.3" (1024mm) |
| Length, Contact Min | 25.7" (652mm) |
| Material, Metal Components | Aluminum and Carbon Steel |
| Material, Outer Ply | Ballistic Nylon |
| Package Dimensions | 23X21X11 |
| Port, Inflation | 2" MNPT to 1/2" QD Plug |
| Port, PSI Monitor | 1/4" QD Cplg |
| Press. Pipeline Max | 3.5 PSI (0.24 BAR) | 8.1 FT (2.5 M) |
| Pressure, Inflation Max | 7 PSI (0.48 BAR) |
| Shipping Wt. | 18 Lb (8.16 Kg) |
| Temperature Max. Service F | 200 f (93.33 c) |
44-Inch Multi-Flex® Pipe Plug for Compact Access — 113-044-
The Petersen Multi-Flex® 113-Series 44-inch high expansion inflatable pipe plug 113-044- is a flexible, compact pipe isolation solution for maintenance, testing and lower-pressure gas applications. Its small deflated diameter is designed to help the plug navigate restricted openings and bends, while the heavy-duty construction conforms to many pipe shapes. Confirm the exact model ratings and dimensions for your application.
Key Specifications
- Maximum expanded diameter: 44 in.
- Deflated diameter: 6 in.
- Maximum plug inflation pressure: 7 PSI
- Maximum pipeline pressure: 3.5 PSI
- Inflation connection: 2 in. MNPT to 1/2 in. QD Plug
- Deflated length: 106.5 in.
- Shipping weight: 18 lb
- Configuration: standard configuration
Selection note: Match the exact Petersen item number to the pipe's actual inside diameter, available insertion space, service conditions and required isolation pressure. Do not substitute pipeline pressure for plug inflation pressure.
