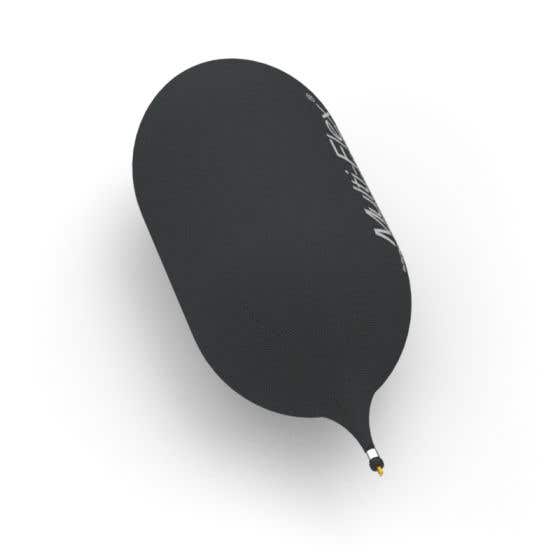

Pipe Plug, Inflatable, Multi-Flex®, 54" Dia

$4,120.00
1 In stock
SKU
113-054-
More Information
Material, Outer Ply Ballistic Nylon
Package Dimensions 21-5/8" X 19-5/8" X 9-3/8"
Pipeline Max Head 2.5 psi (0.17 bar)/5.8' (1.76 m)
Port, Inflation 2" MNPT to 1/2" QD Plug
Port, PSI Monitor 1/4" QD Cplg
Infl. Max Pressure 5 psi (0.34 bar)
Shipping Wt. 23 Lb (10.43 Kg)
Temperature Max. Service F 200 f (93.33 c)
Material, Metal Components Aluminum and Plated Carbon Steel
Length, Contact Min 32" (813mm)
Country of Origin USA
Dia. Deflated 6" (152mm)
Dia. Max 54" (1372mm)
Lngth Deflated 153" (3886mm)
Length Overall Inflated, Est. 126" (3200mm)
Length, Contact 41" (1041mm)
Length, Contact Max 50" (1270mm)
Sage Subcategory Number W113
Pipe Plug, Inflatable, Multi-Flex®, 54" Dia
More Information
Material, Outer Ply Ballistic Nylon
Package Dimensions 21-5/8" X 19-5/8" X 9-3/8"
Pipeline Max Head 2.5 psi (0.17 bar)/5.8' (1.76 m)
Port, Inflation 2" MNPT to 1/2" QD Plug
Port, PSI Monitor 1/4" QD Cplg
Infl. Max Pressure 5 psi (0.34 bar)
Shipping Wt. 23 Lb (10.43 Kg)
Temperature Max. Service F 200 f (93.33 c)
Material, Metal Components Aluminum and Plated Carbon Steel
Length, Contact Min 32" (813mm)
Country of Origin USA
Dia. Deflated 6" (152mm)
Dia. Max 54" (1372mm)
Lngth Deflated 153" (3886mm)
Length Overall Inflated, Est. 126" (3200mm)
Length, Contact 41" (1041mm)
Length, Contact Max 50" (1270mm)
Sage Subcategory Number W113
