Pipe Plug, Inflatable, Multi-Flex®, 84" Dia
| Country of Origin | USA |
|---|---|
| Dia. Deflated | 8" (203mm) |
| Dia. Max | 84" (2134mm) |
| Length Deflated | 197" (5004mm) |
| Length Overall Inflated, Est. | 193" (4903mm) |
| Length, Contact | 63" (1600mm) - 77" (1955mm) |
| Length, Contact Max | 77" (1955mm) |
| Length, Contact Min | 49" (1245mm) |
| Material, Metal Components | Aluminum and Plated Carbon Steel |
| Material, Outer Ply | Ballistic Nylon |
| Package Dimensions | 38X38X10 |
| Port, Inflation | 2" MNPT to 1/2" QD Plug |
| Port, PSI Monitor | 1/4" QD Cplg |
| Press. Pipeline Max | 0.5 PSI (0.03 BAR) | 1.2 FT (0.4 M) |
| Pressure, Inflation Max | 1 PSI (0.07 BAR) |
| Shipping Wt. | 51 Lb (23.13 Kg) |
| Temperature Max. Service F | 200 f (93.33 c) |

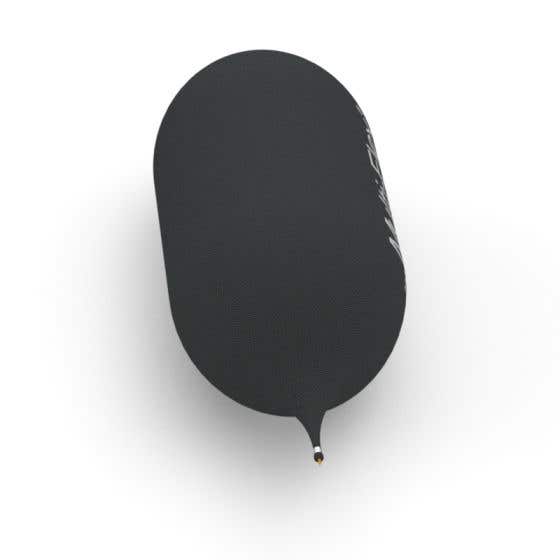

84-Inch Flexible 113-Series Pipe Isolation Plug — 113-084-
The Petersen Multi-Flex® 113-Series 84-inch high expansion inflatable pipe plug 113-084- is a flexible, compact pipe isolation solution for maintenance, testing and lower-pressure gas applications. Its small deflated diameter is designed to help the plug navigate restricted openings and bends, while the heavy-duty construction conforms to many pipe shapes. Confirm the exact model ratings and dimensions for your application.
Key Specifications
- Maximum expanded diameter: 84 in.
- Deflated diameter: 8 in.
- Maximum plug inflation pressure: 1 PSI
- Maximum pipeline pressure: 0.5 PSI
- Inflation connection: 2 in. MNPT to 1/2 in. QD Plug
- Deflated length: 197 in.
- Shipping weight: 51 lb
- Configuration: standard configuration
Selection note: Match the exact Petersen item number to the pipe's actual inside diameter, available insertion space, service conditions and required isolation pressure. Do not substitute pipeline pressure for plug inflation pressure.
