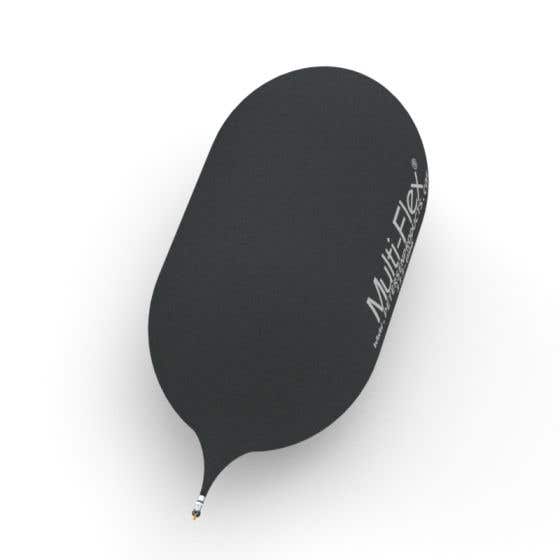

Pipe Plug, Inflatable, Multi-Flex®, 96" Dia
$11,700.00
| Country of Origin | USA |
|---|---|
| Dia. Deflated | 10" (254mm) |
| Dia. Max | 96" (2438mm) |
| Length Deflated | 228" (5791mm) |
| Length Overall Inflated, Est. | 224" (5690mm) |
| Length, Contact | 72" (1829mm) |
| Length, Contact Max | 88" (2235mm) |
| Length, Contact Min | 56" (1422mm) |
| Material, Metal Components | Aluminum and Carbon Steel |
| Material, Outer Ply | Ballistic Nylon |
| Package Dimensions | 38X38X10 |
| Port, Inflation | 2" MNPT to 1/2" QD Plug |
| Port, PSI Monitor | 1/4" QD Cplg |
| Pressure Pipeline Max Head | 0.5 psi (0.03 bar)/1.2 ft (0.35 m) |
| Pressure, Inflation Max | 1 psi (0.06 bar) |
| Sage Subcategory Number | W113 |
| Shipping Wt. | 85 Lb (38.6 Kg) |
| Temperature Max. Service F | 200 f (93.33 c) |
