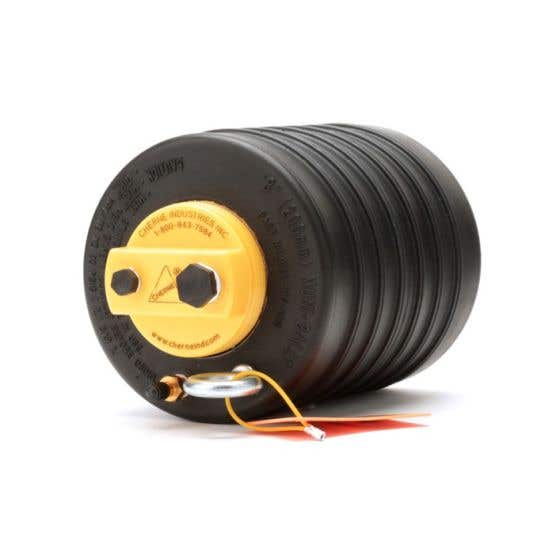

Pipe Plug, Inflatable, Muni Style, 8" Dia, 3" Fnpt Bypass
$281.00
| By-Pass | 3" FNPT One End |
|---|---|
| Country of Origin | USA |
| Dia. Deflated | 6.75" (170mm) |
| Dia. Max | 8.25" (210mm) |
| Eye Bolt, No. | 3/8" (1) |
| Infl. Press. Required | 35 psi (2.4 bar) |
| Length Deflated | 10" (254mm) |
| Material, Body | Molded Natural Rubber |
| Material, Metal Components | Aluminum and Plated Carbon Steel |
| Nominal Size | 8" (200mm) |
| Port, Inflation | 1/4" Male QD To 1/4" MNPT |
| Press. Pipeline Max | 13 psi (0.9 bar)/30 ft (9.1m) |
| Sage Subcategory Number | W1302 |
| Shipping Wt. | 5 Lb (2.27 Kg) |
| Temperature Max. Service F | 140 F (60 C) |
