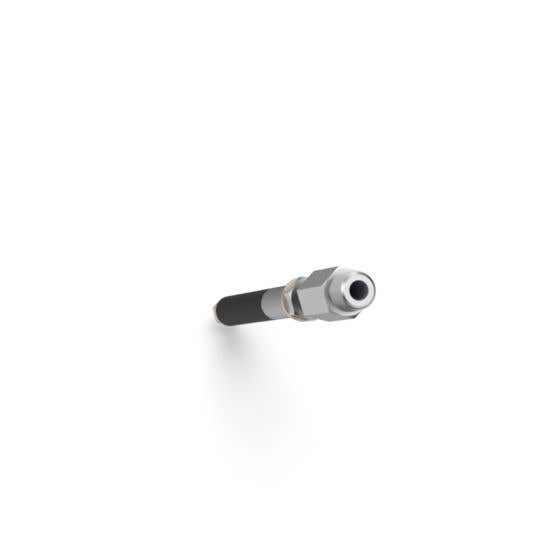

Pipe Plug, Mechanical Med Pres 0.375"-0.406" Dia 1/8" Bypass
$268.00
| By-Pass | 1/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 0.406" (10.31mm) |
| Dia. Min | 0.375" (9.52mm) |
| Lngth, Overall | 5" (127mm) |
| Lngth, Seal | 2" (51mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | N/A |
| Pipe Type | SCH 40 |
| Pipeline Max PSI | 300 psi (20.68 bar) |
| Pressure Pipeline Max Head | 693 ft (211.22 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 1/4" |
| Seal Expansion Torque Ft/Lb | 2 FT-LB |
| Seal Part Number | 931-4130-00300 |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
