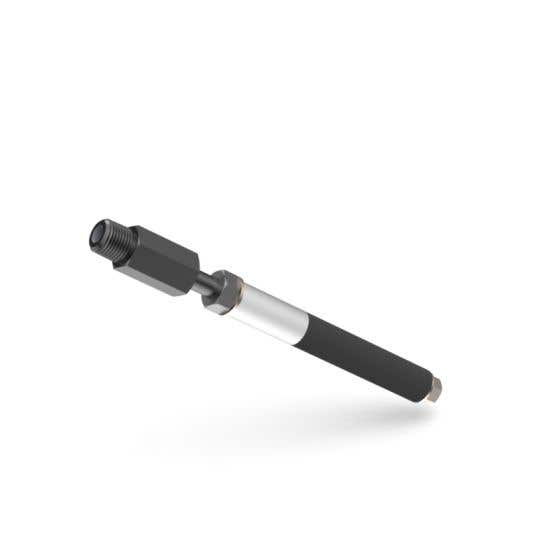

Pipe Plug, Mechanical, Med Pres, 0.44"-0.49"dia 1/8"m Bypass

$268.00
6 In stock
SKU
146-90051-
More Information
By-Pass 1/8" MNPT
By-Pass Flow Through Cap Type Not Included
Country of Origin USA
Dia. Max 0.49" (12.45mm)
Dia. Min 0.44" (11.17mm)
Lngth, Overall 5" (127mm)
Lngth, Seal 2" (51mm)
Material, Body Carbon Steel, Plated
Material, Hardware Steel, Plated
Material, Seal Nitrile
Nominal Pipe 3/8" Sch 40 or 1/2" Sch 160
Pipe Type SCH 40 or SCH 160
Press. Pipeline Max 300 PSI (20.7 BAR)
Seal Expansion System Hex Nut, 1/4"
Seal Expansion Torque Ft/Lb 24 IN-LBS (2 FT-LBS)
Seal Part Number 931-4130-00402
Shipping Wt. 1 Lb (0.45 Kg)
Style Internal to Pipe Plug
Temperature Max. Service F 200 F (93.33 C)
Loading...

Mechanical Tubing Test Plug, 0.440–0.490 in., 300 PSI

The 146-90051- is designed for pressure-testing small tubing with a listed diameter range of 0.440–0.490 inches. Its bolt-type construction expands the sealing element against the tube's interior, helping provide a secure test closure when used within its specified operating limits. The plug includes a 1/8-inch MNPT bypass connection and is listed for a maximum pipeline pressure of 300 PSI (20.7 bar). Match the plug to the measured internal diameter, not nominal tubing size alone.

Key specifications:

  • Diameter range: 0.440–0.490 in. (11.17–12.45 mm)
  • Bypass: 1/8-inch MNPT
  • Maximum pipeline pressure: 300 PSI
  • Listed weight: 1 lb.
