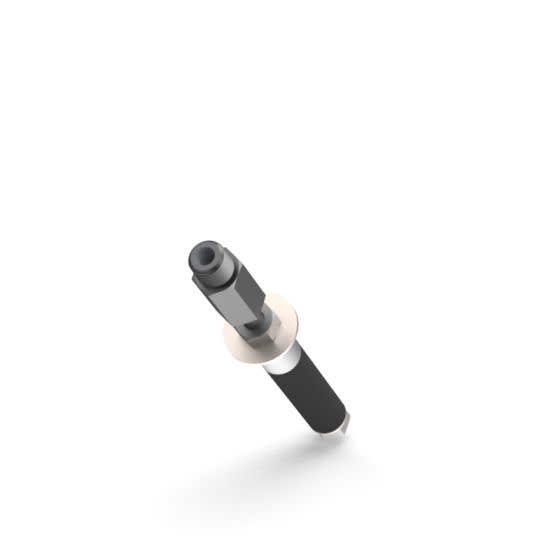

Pipe Plug, Mech Med Pres. 0.51" -0.562" Dia 1/8" Bypass
$158.00
| By-Pass | 1/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 0.562" (14.27mm) |
| Dia. Min | 0.51" (12.95mm) |
| Lngth, Overall | 5" (127mm) |
| Lngth, Seal | 2" (51mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 1/2" Sch 80 |
| Pipe Type | SCH 80 |
| Pipeline Max PSI | 300 psi (20.68 bar) |
| Pressure Pipeline Max Head | 693 ft (211.22 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 1/4" |
| Seal Expansion Torque Ft/Lb | 4 FT-LB |
| Seal Part Number | 931-4130-00507 |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
