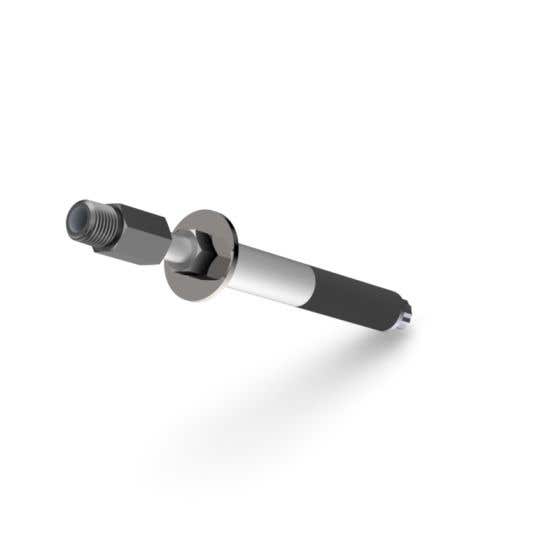

Pipe Plug, Mechanical, Med Pres. 0.625"-0.690" Dia Mech Seal
$147.28
1 In stock
SKU
146-90069-
| By-Pass | 1/4" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 0.69" (17.52mm) |
| Dia. Min | 0.625" (15.87mm) |
| Lngth, Overall | 6.75" (171mm) |
| Lngth, Seal | 2" (51mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Pipeline Max PSI | 250 psi (17.23 bar) |
| Pressure Pipeline Max Head | 577 ft (175.86 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/8" |
| Seal Expansion Torque Ft/Lb | 4 FT-LB |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
