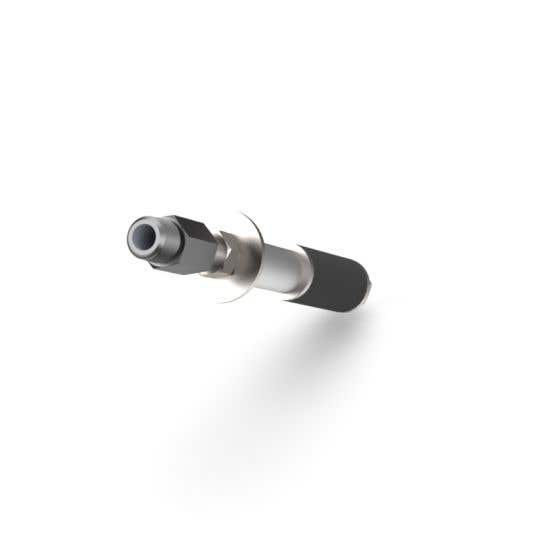

Pipe Plug, Mechanical, Med Pres., 0.83"-0.89" Dia.
| By-Pass | 1/4" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 0.89" (22.6mm) |
| Dia. Min | 0.83" (21.08mm) |
| Lngth, Overall | 6.75" (171mm) |
| Lngth, Seal | 2" (51mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Pipe Type | SCH 40 or SCH 160 |
| Pipeline Max PSI | 250 psi (17.23 bar) |
| Pressure Pipeline Max Head | 577 ft (175.86 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/8" |
| Seal Expansion Torque Ft/Lb | 12 FT-LB |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
