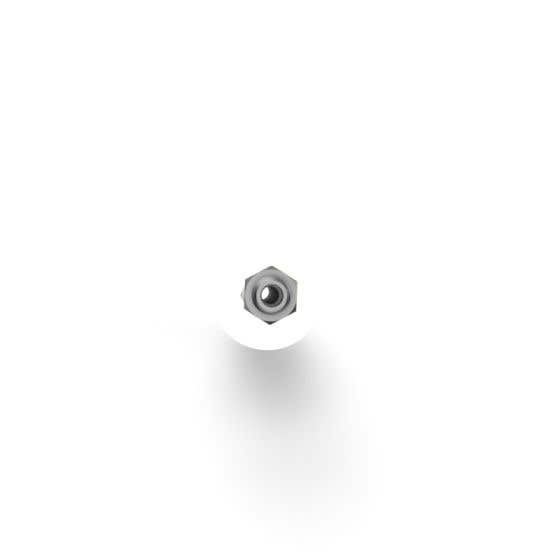

Pipe Plug, Mechanical, Med Pres, 1.39"-1.51" Dia 1/4" Bypass
$220.00
| By-Pass | 1/4" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 1.51" (38mm) |
| Dia. Min | 1.39" (35mm) |
| Lngth, Overall | 8" (203mm) |
| Lngth, Seal | 2.5" (64mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 1-1/2" Sch 80 |
| Pipeline Max PSI | 200 psi (13.78 bar) |
| Pressure Pipeline Max Head | 462 ft (140.81 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 1/2" |
| Seal Expansion Torque Ft/Lb | 30 FT-LB |
| Seal Part Number | 931-4130-01307 |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
