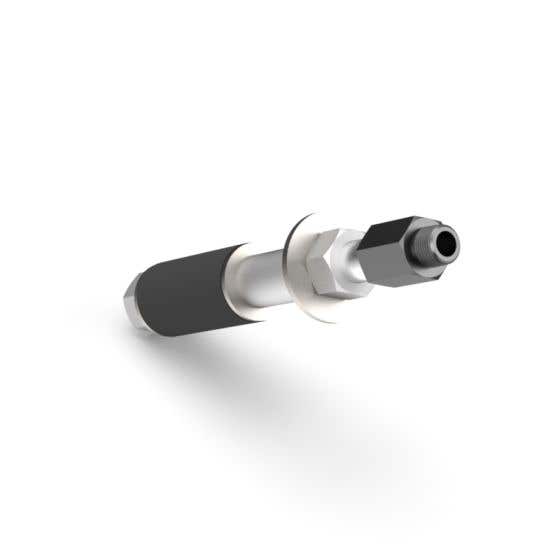

Pipe Plug, Mechanical, Med Pres, 1.51"-1.63" Dia 3/8"m Byass
$220.00
| By-Pass | 3/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 1.63" (41mm) |
| Dia. Min | 1.51" (38mm) |
| Lngth, Overall | 9.5" (241mm) |
| Lngth, Seal | 3" (76mm) |
| Material, Body | Carbon Steel, Plated |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 1-1/2" Sch 40 |
| Pipeline Max PSI | 150 psi (10.34 bar) |
| Pressure Pipeline Max Head | 347 ft (105.76 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/4" |
| Seal Expansion Torque Ft/Lb | 50 FT-LB |
| Seal Part Number | 931-4130-01506 |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
