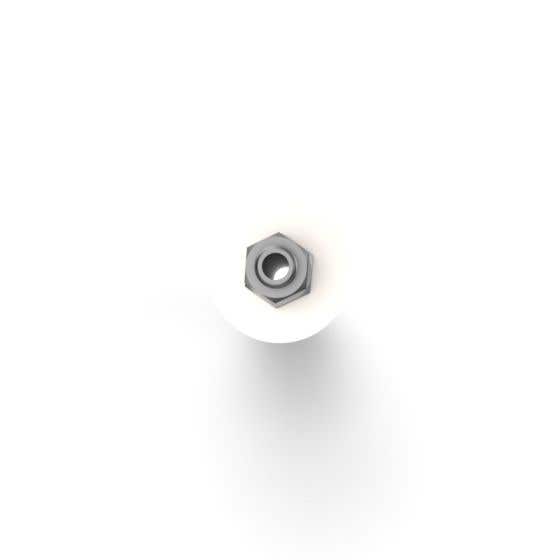

Pipe Plug, Mechanical, Med Pres. 1.76"-1.88" Di,3/8"m Bypas

$220.00
11 In stock
SKU
146-90188-
More Information
By-Pass 3/8" MNPT
By-Pass Flow Through Cap Type Not Included
Country of Origin USA
Dia. Max 1.88" (48mm)
Dia. Min 1.76" (45mm)
Lngth, Overall 9.5" (241mm)
Lngth, Seal 2" (50.8mm)
Material, Body Carbon Steel, Plated
Material, Hardware Steel, Plated
Material, Seal Nitrile
Press. Pipeline Max 150 PSI (10.3 BAR)
Seal Expansion System Hex Nut, 3/4"
Seal Expansion Torque Ft/Lb 60 FT-LB
Seal Part Number 931-4130-01706
Shipping Wt. 1 Lb (0.45 Kg)
Style Internal to Pipe Plug
Temperature Max. Service F 200 F (93.33 C)
Loading...

Mechanical Test Plug for 1.760–1.880 in. Pipe ID

For pipe and tubing in the 1.760–1.880-inch internal-diameter range, the 146-90188- combines mechanical seal expansion with a threaded bypass connection. The 3/8-inch MNPT port is suited to compatible test configurations, while the listed maximum pipeline pressure is 150 PSI (10.3 bar). The model offers a defined size range for technical buyers who need a repeatable approach to pipe testing, subject to the manufacturer's operating and installation requirements.

Key specifications:

  • Diameter range: 1.760–1.880 in. (45–48 mm)
  • Bypass: 3/8-inch MNPT
  • Maximum pipeline pressure: 150 PSI
  • Listed weight: 1 lb.
