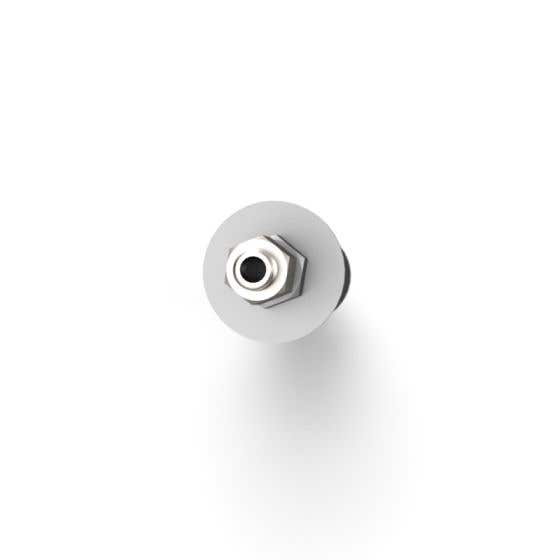

Pipe Plug, Mechanical, Med Pres, 1.88"-2.01"dia, 3/8"m Bypas
$220.00
| By-Pass | 3/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 2.01" (51mm) |
| Dia. Min | 1.88" (48mm) |
| Lngth, Overall | 9.5" (241mm) |
| Lngth, Seal | 3" (76mm) |
| Material, Body | Aluminum |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 2" Sch 80 |
| Pipeline Max PSI | 150 psi (10.34 bar) |
| Pressure Pipeline Max Head | 347 ft (105.76 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/4" |
| Seal Expansion Torque Ft/Lb | 60 FT-LB |
| Seal Part Number | 931-4130-01805 |
| Shipping Wt. | 1 Lb (0.45 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
