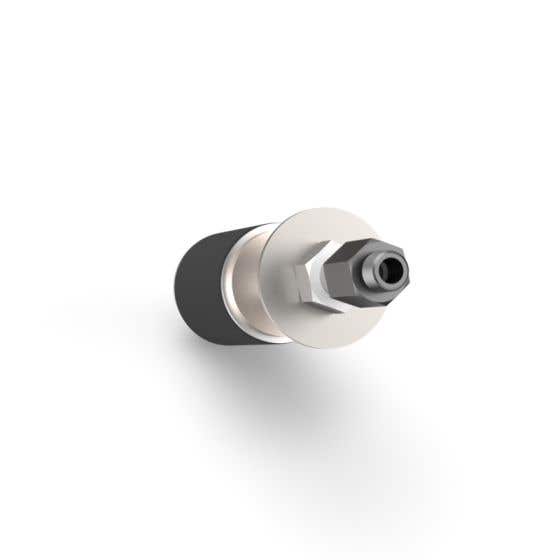

Pipe Plug, Mechanical, Med Pres, 2.31"-2.51" Dia 3/8" Bypass
$342.00
| By-Pass | 3/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 2.51" (64mm) |
| Dia. Min | 2.31" (59mm) |
| Lngth, Overall | 9.5" (241mm) |
| Lngth, Seal | 3" (76mm) |
| Material, Body | STEEL |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 2-1/2" Sch 40, Sch 80 |
| Pipeline Max PSI | 100 psi (6.89 bar) |
| Pressure Pipeline Max Head | 231 ft (70.41 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/4" |
| Seal Expansion Torque Ft/Lb | 70 FT-LB |
| Seal Part Number | 931-4130-02203 |
| Shipping Wt. | 2.75 Lbs (1.25 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
