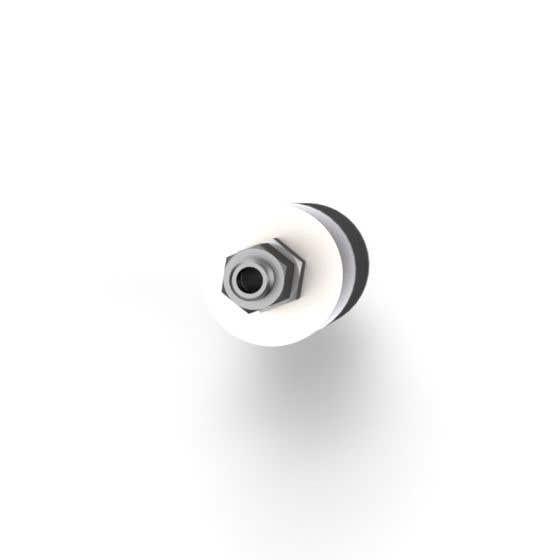

Pipe Plug, Mechanical, Med Pres, 2.51"-2.69"dia 3/8" M Bypas
More Information
By-Pass |
3/8" MNPT |
By-Pass Flow Through Cap Type |
Not Included |
Country of Origin |
USA |
Dia. Max |
2.69" (68mm) |
Dia. Min |
2.51" (64mm) |
Lngth, Overall |
9.5" (241mm) |
Lngth, Seal |
3" (76mm) |
Material, Body |
Aluminum |
Material, Hardware |
Steel, Plated |
Material, Seal |
Nitrile |
Nominal Pipe |
3" Sch 160 |
Pipe Type |
SCH 160 |
Pipeline Max PSI |
100 psi (6.89 bar) |
Pressure Pipeline Max Head |
231 ft (70.41 m) |
Sage Subcategory Number |
W1469 |
Seal Expansion System |
Hex Nut, 3/4" |
Seal Expansion Torque Ft/Lb |
75 FT-LB |
Shipping Wt. |
2.75 Lbs (1.25 Kg) |
Style |
Internal to Pipe Plug |
Temperature Max. Service F |
200 F (93.33 C) |
