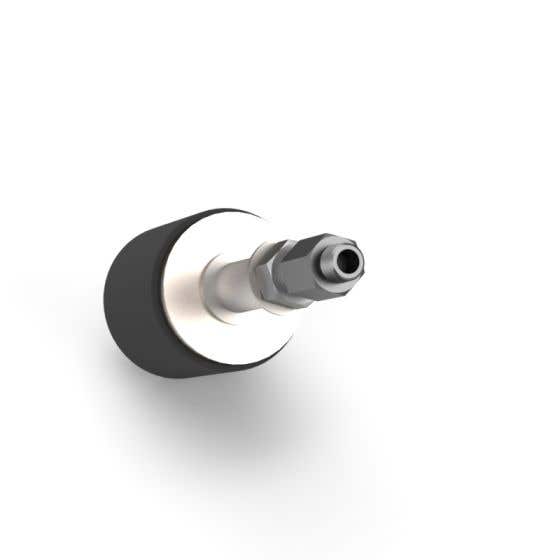

Pipe Plug, Mechanical, Med Pres., 3.26"-3.51"dia 3/8" Bypass
$383.00
| By-Pass | 3/8" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 3.51" (89mm) |
| Dia. Min | 3.26" (83mm) |
| Lngth, Overall | 9.5" (241mm) |
| Lngth, Seal | 3" (76mm) |
| Material, Body | Aluminum |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Nominal Pipe | 3-1/2" Sch 80 or 4" Sch 160 |
| Pipeline Max PSI | 80 psi (5.51 bar) |
| Pressure Pipeline Max Head | 185 ft (56.38 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/4" |
| Seal Expansion Torque Ft/Lb | 80 FT-LB |
| Seal Part Number | 931-4130-03202 |
| Shipping Wt. | 4.5 Lbs (2.04 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
