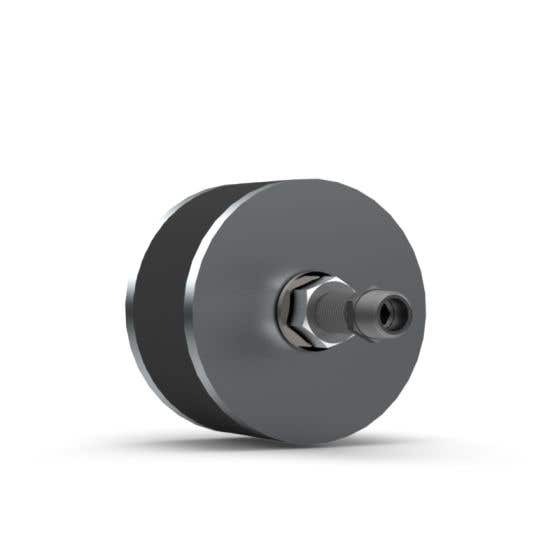

Pipe Plug, Mechanical, Med Pres, 4.95"-5" Dia, 1/2" Bypass
$665.00
| By-Pass | 1/2" MNPT |
|---|---|
| By-Pass Flow Through Cap Type | Not Included |
| Country of Origin | USA |
| Dia. Max | 5" (127mm) |
| Dia. Min | 4.95" (126mm) |
| Lngth, Overall | 6.25" (159mm) |
| Lngth, Seal | 2.25" (57mm) |
| Material, Body | Aluminum |
| Material, Hardware | Steel, Plated |
| Material, Seal | Nitrile |
| Pipe Type | SCH 40 |
| Pipeline Max PSI | 25 psi (1.72 bar) |
| Pressure Pipeline Max Head | 58 ft (17.67 m) |
| Sage Subcategory Number | W1469 |
| Seal Expansion System | Hex Nut, 3/4" |
| Seal Expansion Torque Ft/Lb | 80 ft-lbs |
| Seal Part Number | 931-4130-04803 |
| Shipping Wt. | 13 Lbs (5.9 Kg) |
| Style | Internal to Pipe Plug |
| Temperature Max. Service F | 200 F (93.33 C) |
