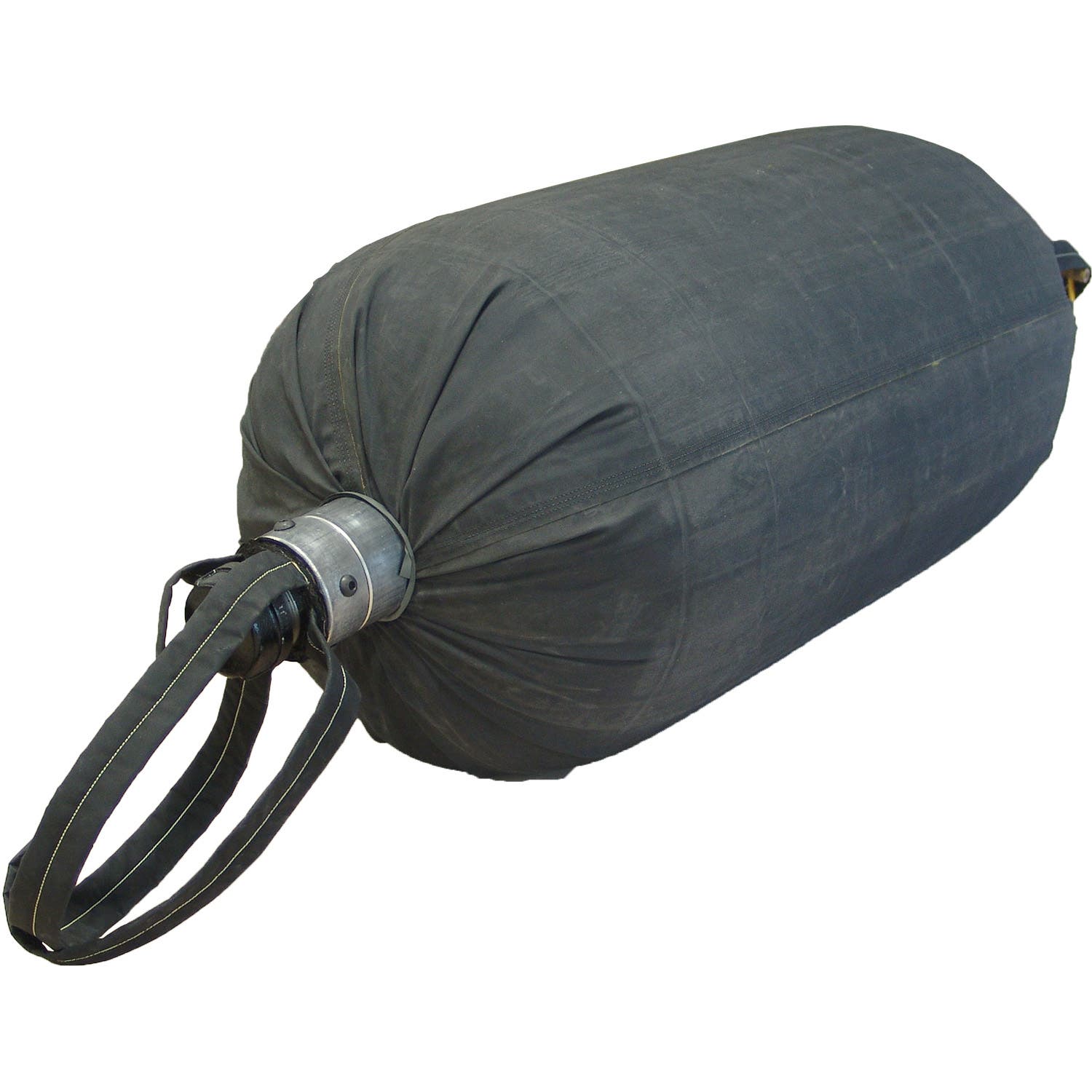

- Safety and environmental risks reduced
- Save time and labor cost with lighter weight than molded rubber plugs
- Navigates small openings with small deflated diameter and high flexibility
- Ballistic Nylon Reinforced Nitrile
- Puncture and Tear Resistant
- Synthetic materials mean many more years of shelf life than molded Rubber plugs
- Other materials available for chemical and temperature requirements
- Higher pressure and more robust than typical "Gas Plugs"
- Conforms most pipe shapes Ports on both ends allows connecting two or more series connection

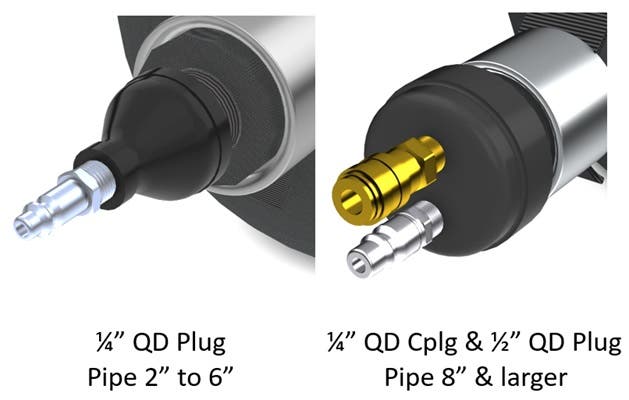

- Ports on both ends allows connecting two or more series connection
- Small storage area needed
- Much Longer pipe contact length than most other plugs

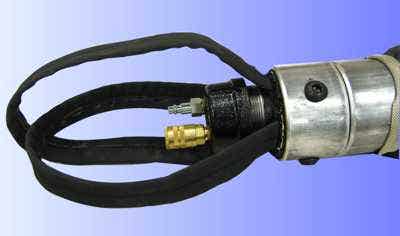

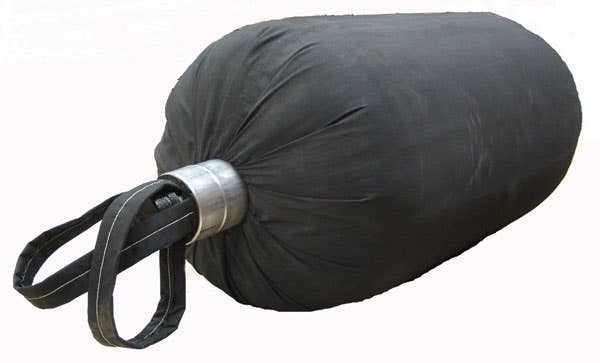

- Tether Loops both ends
| Image | Dia. Max | Dia. Deflated | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
72" (1829mm) | 15" (381mm) | 7 psi (0.5 bar) | 3.5 psi (0.24 bar)/8.1' (2.46 m) | 3" M - 1/2" QD Plug | 245" (6223mm) | 195 Lb (88.5 Kg) | 124-072- |
$13,600.00
|
||
|
66" (1676mm) | 13" (330mm) | 7.5 psi (0.5 bar) | 3.75 psi (0.26 bar)/8.7' (2.64 m) | 3" M - 1/2" QD Plug | 225" (5715mm) | 171 Lb (77.6 Kg) | 124-066- |
$10,600.00
|
||
|
60" (1524mm) | 13" (330mm) | 8 psi (0.55 bar) | 4 psi (0.28 bar)/9.2' (2.81 m) | 3" M - 1/2" QD Plug | 205" (5207mm) | 147 Lb (66.7 Kg) | 124-060- |
$8,900.00
|
||
|
54" (1372mm) | 12" (305mm) | 11 psi (0.8 bar) | 5.5 psi (0.68 bar)/12.7' (3.87 m) | 3" M - 1/2" QD Plug | 185" (4699mm) | 121 Lb (54.9 kg) | 124-054- |
$7,200.00
|
||
|
48" (1219mm) | 10" (254mm) | 15 psi (1.0 bar) | 7.5 psi (0.52 bar)/17.3' (5.27 m) | 3" M - 1/2" QD Plug | 165" (4191mm) | 94 Lb (42.6 kg) | 124-048- |
$5,900.00
|
||
|
42" (1067mm) | 9.5" (241mm) | 18 psi (1.24 bar) | 9 psi (0.62 bar)/20.8' (6.33 m) | 3" M - 1/2" QD Plug | 145" (3683mm) | 88 Lb (39.9 kg) | 124-042- |
$5,200.00
|
||
|
36" (914mm) | 9.5" (241mm) | 20 psi (1.37 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3" M - 1/2" QD Plug | 124" (3150mm) | 83 Lb (37.7 kg) | 124-036- |
$3,630.00
|
||
|
33" (838mm) | 9" (229mm) | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3" M - 1/2" QD Plug | 115" (2921mm) | 77 Lb (34.9 Kg) | 124-033- |
$3,370.00
|
||
|
30" (762mm) | 8" (203mm) | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3" M - 1/2" QD Plug | 104" (2642mm) | 52 Lb (23.6 Kg) | 124-030- |
$3,200.00
|
||
|
24" (610mm) | 7" (178mm) | 30 psi (2.0 bar) | 15 psi (1.03 bar)/34.6' (10.55 m) | 3" M - 1/2" QD Plug | 84" (2134mm) | 41 Lb (18.6 Kg) | 124-024- |
$1,940.00
|
||
|
20" (508mm) | 7" (178mm) | 32 psi (2.2 bar) | 16 psi (1.1 bar)/36.9' (11.25 m) | 2" M - 1/2" QD Plug | 71" (1803mm) | 35 Lb (15.9 Kg) | 124-020- |
$1,700.00
|
||
|
18" (457mm) | 6.5" (165mm) | 37 psi (2.6 bar) | 18.5 psi (1.28 bar)/42.7' (13.01 m) | 2" M - 1/2" QD Plug | 64" (1626mm) | 26 Lb (11.8 Kg) | 124-018- |
$1,330.00
|
||
|
16" (406mm) | 6" (152mm) | 37 psi (2.6 bar) | 18.5 psi (1.28 bar)/42.7' (13.01 m) | 2" M - 1/2" QD Plug | 58" (1473mm) | 24 Lb (10.89 Kg) | 124-016- |
$1,140.00
|
||
|
15" (381mm) | 6" (152mm) | 42 psi (3.0 bar) | 21 psi (1.45 bar)/48.4' (14.76 m) | 2" M - 1/2" QD Plug | 55" (1397mm) | 24 Lb (10.89 Kg) | 124-015- |
$1,080.00
|
||
|
12" (305mm) | 5.5" (140mm) | 70 psi (5.0 bar) | 35 psi (2.41 bar)/80.7' (24.61 m) | 2" M - 1/2" QD Plug | 44" (1118mm) | 21 Lb (9.53 Kg) | 124-012- |
$840.00
|
||
|
10" (254mm) | 5" (127mm) | 70 psi (5.0 bar) | 35 psi (2.41 bar)/80.7' (24.61 m) | 2" M - 1/2" QD Plug | 37" (940mm) | 18 Lb (8.16 Kg) | 124-010- |
$720.00
|
||
|
8" (203mm) | 4.5" (114mm) | 70 psi (4.8 bar) | 35 psi (2.41 bar)/80.7' (24.61 m) | 2" M - 1/2" QD Plug | 31" (787mm) | 12 Lb (5.44 Kg) | 124-008- |
$630.00
|
||
|
6" (152mm) | 3" (76mm) | 80 psi (5.5 bar) | 40 psi (2.76 bar)/92.3' (28.12 m) | 1" M - 1/4" QD Plug | 22" (559mm) | 8 Lb (3.63 Kg) | 124-006- |
$550.00
|
||
|
4" (102mm) | 2.5" (64mm) | 80 psi (5.5 bar) | 40 psi (2.76 bar)/92.3' (28.12 m) | 3/4" M - 1/4" QD Plug | 17" (432mm) | 7 Lb (3.18 Kg) | 124-004- |
$470.00
|
||
|
3" (76mm) | 2" (51mm) | 80 psi (5.5 bar) | 40 psi (2.76 bar)/92.3' (28.12 m) | 3/4" M - 1/4" QD Plug | 14" (356mm) | 5 Lb (2.27 Kg) | 124-003- |
$400.00
|
||
|
2" (51mm) | 1.75" (44mm) | 80 psi (5.5 bar) | 40 psi (2.76 bar)/92.3' (28.12 m) | 1/2" M - 1/4" QD Plug | 12.5" (318mm) | 4 Lb (1.81 Kg) | 124-002- |
$400.00
|
- Safety and environmental risks reduced
- Save time and labor cost with lighter weight than molded rubber plugs
- Navigates small openings with small deflated diameter and high flexibility
- Ballistic Nylon Reinforced Nitrile
- Puncture and Tear Resistant
- Synthetic materials mean many more years of shelf life than molded Rubber plugs
- Other materials available for chemical and temperature requirements
- Higher pressure and more robust than typical "Gas Plugs"
- Conforms most pipe shapes Ports on both ends allows connecting two or more series connection
- Ports on both ends allows connecting two or more series connection
- Small storage area needed
- Much Longer pipe contact length than most other plugs
- Tether Loops both ends
| Image | Dia. Max | Dia. Deflated | By-Pass | Pipe Plug Inflation Max Press. | Pipeline Pressure Max Head | Port, Inflation | Length Deflated | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
72" (1829mm) | 15" (381mm) | 3" MNPT to 3" ID | 7 psi (0.48 bar) | 3.5 psi (0.24 bar)/8.1' (2.46 m) | 3/8" F - 1/2" QD Plug | 254" (6452mm) | 226 Lb (102.5 Kg) | 125-072- |
$15,700.00
|
||
|
66" (1676mm) | 14" (356mm) | 3" MNPT to 3" ID | 7.5 psi (0.51 bar) | 3.75 psi (0.26 bar)/8.7' (2.64 m) | 3/8" F - 1/2" QD Plug | 234" (5944mm) | 200 Lb (90.7 Kg) | 125-066- |
$12,300.00
|
||
|
60" (1524mm) | 14" (356mm) | 3" MNPT to 3" ID | 8 psi (0.55 bar) | 4 psi (0.28 bar)/9.2' (2.81 m) | 3/8" F - 1/2" QD Plug | 214" (5436mm) | 173 Lb (78.5 Kg) | 125-060- |
$10,300.00
|
||
|
54" (1372mm) | 13" (330mm) | 3" MNPT to 3" ID | 11 psi (0.8 bar) | 5.5 psi (0.38 bar)/12.7' (3.87 m) | 3/8" F - 1/2" QD Plug | 194" (4928mm) | 145 Lb (65.8 Kg) | 125-054- |
$8,400.00
|
||
|
48" (1219mm) | 12" (305mm) | 3" MNPT to 3" ID | 15 psi (1.0 bar) | 7.5 psi (0.52 bar)/17.3' (5.27 m) | 3/8" F - 1/2" QD Plug | 174" (4420mm) | 115 Lb (52.2 Kg) | 125-048- |
$6,900.00
|
||
|
42" (1067mm) | 11" (279mm) | 3" MNPT to 3" ID | 18 psi (1.24 bar) | 9 psi (0.62 bar)/20.8' (6.33 m) | 3/8" F - 1/2" QD Plug | 154" (3912mm) | 106 Lb (48.1 Kg) | 125-042- |
$6,100.00
|
||
|
36" (914mm) | 10" (254mm) | 3" MNPT to 3" ID | 20 psi (1.4 bar) | 10 psi (0.69 bar)/23.1' (7.03 m) | 3/8" F - 1/2" QD Plug | 134" (3404mm) | 99 Lb (44.9 Kg) | 125-036- |
$4,290.00
|
||
|
33" (838mm) | 9" (229mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 124" (3150mm) | 92 Lb (41.7 Kg) | 125-033- |
$4,000.00
|
||
|
30" (762mm) | 8.5" (216mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 114" (2896mm) | 82 Lb (37.2 Kg) | 125-030- |
$3,800.00
|
||
|
24" (610mm) | 8" (203mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 94" (2388mm) | 52 Lb (23.6 Kg) | 125-024- |
$2,350.00
|
||
|
|
22" (558mm) | 8" (203mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 94" (2388mm) | 52 Lb (23.6 Kg) | 125-022- |
$2,350.00
|
||
|
20" (508mm) | 7.5" (191mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 80" (2032mm) | 49 Lb (22.2 Kg) | 125-020- |
$2,070.00
|
||
|
18" (457mm) | 7.5" (191mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 73" (1854mm) | 40 Lb (18.1 Kg) | 125-018- |
$1,660.00
|
||
|
16" (406mm) | 7" (178mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 66" (1676mm) | 38 Lb (17.3 Kg) | 125-016- |
$1,430.00
|
||
|
15" (381mm) | 7" (178mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/2" QD Plug | 63" (1600mm) | 38 Lb (17.3 Kg) | 125-015- |
$1,360.00
|
||
|
12" (305mm) | 6.5" (165mm) | 3" MNPT to 3" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/4" QD Plug | 44" (1118mm) | 38 Lb (17.24 Kg) | 125-012- |
$1,080.00
|
||
|
10" (254mm) | 5" (127mm) | 2" MNPT to 2" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 3/8" F - 1/4" QD Plug | 39" (991mm) | 26 Lb (11.79 Kg) | 125-010- |
$940.00
|
||
|
8" (203mm) | 5" (127mm) | 2" MNPT to 2" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" F - 1/4" QD Plug | 36" (914mm) | 23 Lb (10.43 Kg) | 125-008- |
$850.00
|
||
|
6" (152mm) | 4.5" (114mm) | 1.5" FNPT to 1.0" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" F - 1/4" QD Plug | 24" (610mm) | 15 Lb (6.80 Kg) | 125-006- |
$750.00
|
||
|
4" (102mm) | 3.5" (89mm) | 1" FNPT to 1" ID | 25 psi (1.72 bar) | 12.5 psi (0.86 bar)/28.8' (8.79 m) | 1/4" F - 1/4" QD Plug | 17" (432mm) | 11 Lb (4.99 Kg) | 125-004- |
$670.00
|
