Pipe Plug, Aramid Reinforced 136 Series Bypass

By-pass, reinforced with Aramid cord noted for a wide application range. They can be used in different situations, where a pipe needs to be blocked or a bypass made.

Removable flanges, inflation hose whip Included

Operating Instructions

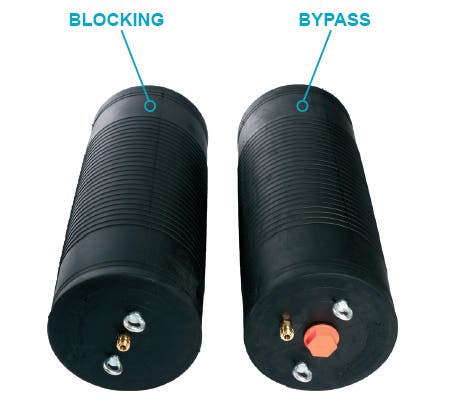

136 Series Blocking Bypass

Back Pressure Chart 136 Series

Loading...

Pipe Plug, Aramid Reinforced Rubber Bypass 136 Series

    Dia. Max Dia. Deflated By-Pass Infl. Press. Required Press. Pipeline Max Length, Cylinder Contact Port, Inflation Shipping Wt. Item Number Price Qty Action
    60" (1500mm) 23.5" (600mm) 4" FNPT Both Ends 15 psi (1 bar) ** See First Back Pressure Chart 91" (2300mm) 1/4" Male QC 201 Lb (91 Kg) 136-060-84
    $7,100.00
    48" (1200mm) 22.6" (574mm) 4" FNPT Both Ends 22 psi (1.51 bar) ** See First Back Pressure Chart 57" (1450mm) 1/4" Male QC 122 Lbs (55.5 Kg) 136-048-84
    $3,490.00
    40" (1000mm) 18.6" (472mm) 2" FNPT Both Ends 22 psi (1.5 bar) ** See First Back Pressure Chart 45" (1150mm) 1/4" Male QC 72 Lbs (32.5 Kg) 136-040-82
    $2,930.00
    30" (750mm) 13.5" (342mm) 2" FNPT Both Ends 36 psi (2.5 bar) ** See First Back Pressure Chart 41" (1050mm) 1/4" Male QC 43 lbs (19.50 Kg) 136-030-82
    $1,790.00
    24" (600mm) 12.7" (322mm) 2" FNPT Both Ends 36 psi (2.5 bar) ** See First Back Pressure Chart 33" (830mm) 1/4" Male QC 35 Lbs (15.88 Kg) 136-024-82
    $1,370.00
    21" (525mm) 10.7" (272mm) 2" FNPT Both Ends 36 psi (2.5 bar) ** See First Back Pressure Chart 25" (630mm) 1/4" Male QC 27 Lbs (13.61 Kg) 136-021-82
    $856.00
    16" (400mm) 7.6" (192mm) 2" FNPT Both Ends 36 psi (2.5 bar) ** See First Back Pressure Chart 24" (600mm) 1/4" Male QC 15 Lbs (6.80 Kg) 136-016-8215
    $743.00
    12" (305mm) 5.6" (142mm) 1" FNPT Both Ends 36 psi (2.48 bar) ** See First Back Pressure Chart 21" (533mm) 1/4" Male QC 10 Lbs (4.54 Kg) 136-012-81
    $521.00
    8" (200mm) 3.6" (92mm) 1" FNPT Both Ends 36 psi (2.5 bar) ** See First Back Pressure Chart 20" (500mm) 1/4" Male QC 6 lbs (2.72 Kg) 136-008-81
    $406.00
    6" (152mm) 2.7" (69mm) 1/2" FNPT Both Ends 36 psi (2.48 bar) ** See First Back Pressure Chart 12" (300mm) 1/4" Male QC 4 Lbs (1.81 Kg) 136-006-8
    $271.00

Pipe Plug Aramid Reinforced Rubber Large Bypass 136-1 Series

Large By-pass, reinforced with Aramid cord noted for a wide application range.

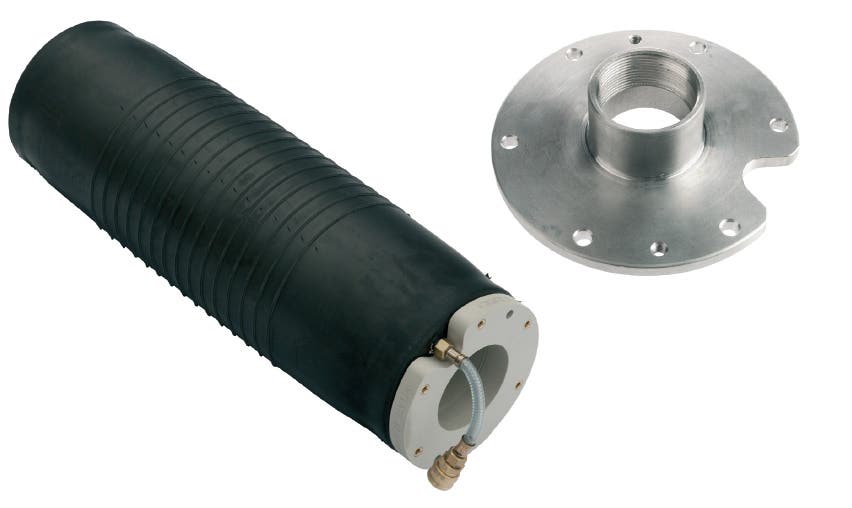

136 Series Large Bypass

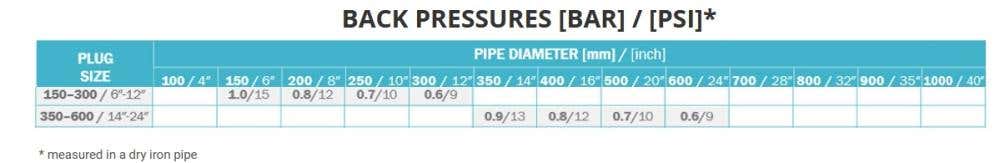

Large ByPass Chart 136 Series

    Dia. Max Dia. Deflated By-Pass Infl. Press. Required Press. Pipeline Max Length, Cylinder Contact Port, Inflation Shipping Wt. Item Number Price Qty Action
    24" (600mm) 12.7" (322mm) 6" MNPT One End 22 psi (1.51 bar) ** See Second Back Pressure Chart 33" (830mm) 1/4" Male QC 59 Lbs (26.76 Kg) 136-024-86
    $428.00
    24" (600mm) 12.7" (322mm) 4" MNPT One End 22 psi (1.51 bar) ** See Second Back Pressure Chart 33" (830mm) 1/4" Male QC 59 Lbs (26.76 Kg) 136-024-84
    $1,740.00
    12" (300mm) 5.6" (142mm) 2" MNPT One End 22 psi (1.51 bar) ** See Second Back Pressure Chart 21" (540mm) 1/4" Male QC 16 Lbs (7.26 Kg) 136-012-8207
    $678.00
