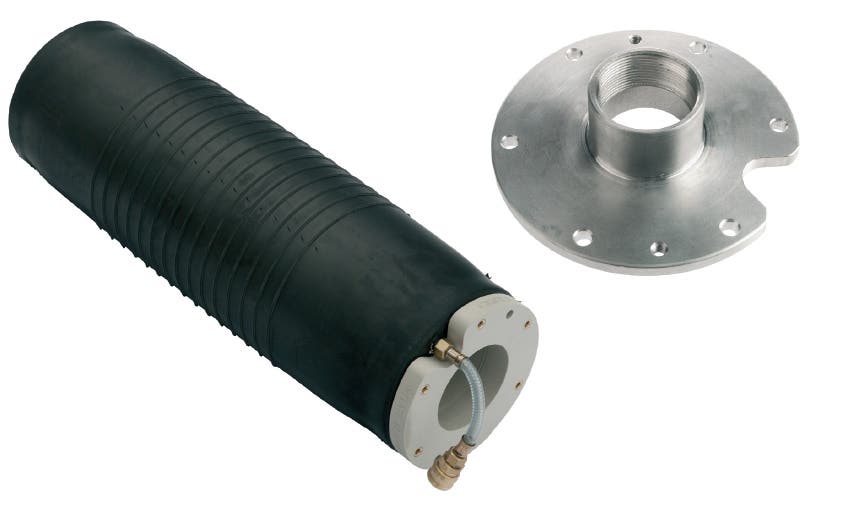

Pipe Plug Aramid Reinforced Rubber Large Bypass 136-1 Series
Large By-pass, reinforced with Aramid cord noted for a wide application range.
| Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length, Cylinder Contact | Port, Inflation | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

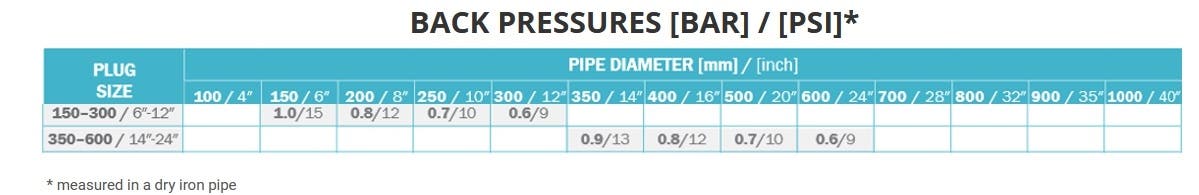

24" (600mm) | 12.7" (322mm) | 6" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart | 33" (830mm) | 1/4" Male QC | 59 Lbs (26.76 Kg) | 136-024-86 |
$476.00
|
||
|
24" (600mm) | 12.7" (322mm) | 4" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart | 33" (830mm) | 1/4" Male QC | 59 Lbs (26.76 Kg) | 136-024-84 |
$1,940.00
|
||
|
12" (300mm) | 5.6" (142mm) | 2" MNPT One End | 22 psi (1.51 bar) | ** See Second Back Pressure Chart | 21" (540mm) | 1/4" Male QC | 16 Lbs (7.26 Kg) | 136-012-8207 |
$755.00
|
