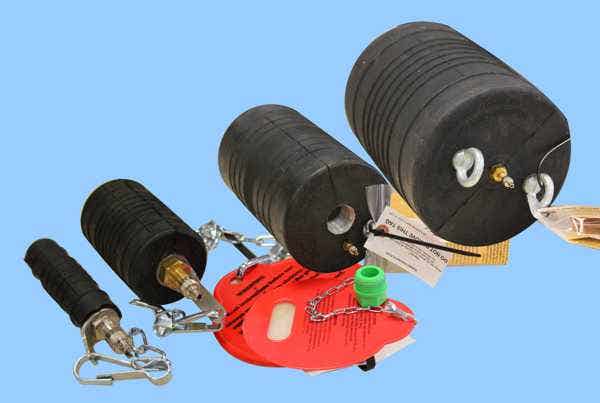

Smaller diameter plugs can be used in all types of pipelines. Since these plugs are not reinforced with cord, they exhibit excellent stretching and sealing characteristics in pipe diameters from 20 mm (0.8") up to 305 mm (12").
Tire inflation valves may be removed to expose British Standard Pipe Thread fitting for direct hose connection or for adding a quick connect. Blocking plugs are 1/4" BSPT and bypass plugs are 1/8" BSPT excluding the 8”, 10” & 12” Bypass Plugs which are 1/4".
By-pass plugs are threaded both ends.
| Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length, Cylinder Contact | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

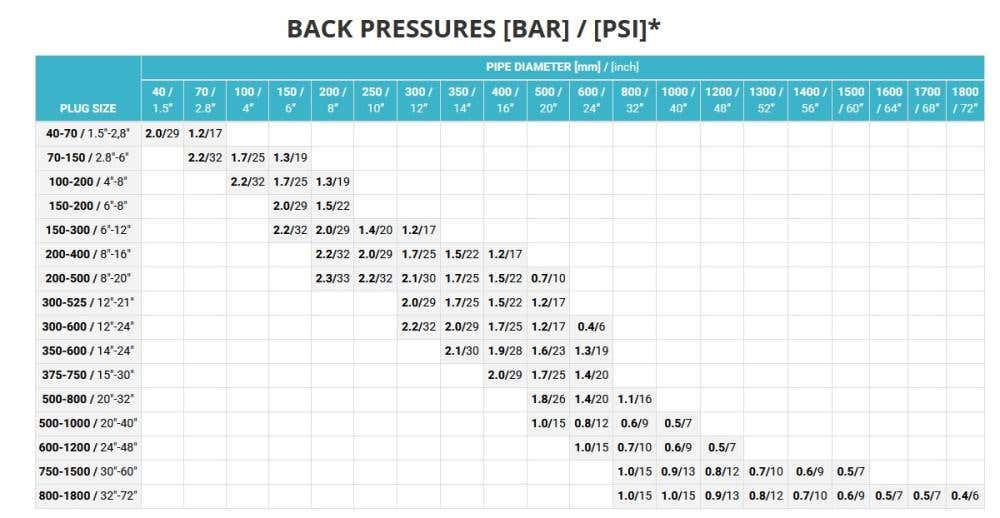

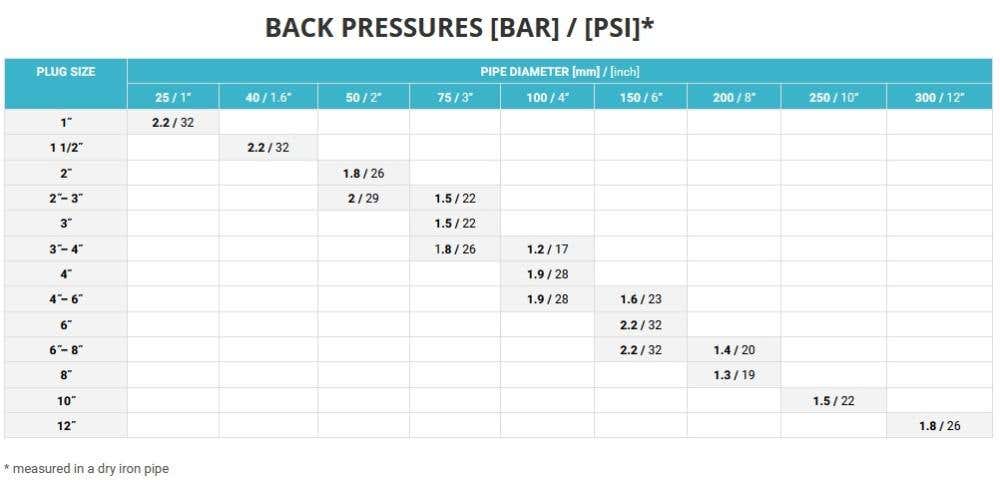

12" (305mm) | 10.8" (274mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 10.8" (274mm) | 11 Lbs (4.99 Kg) | 137-012 - |
$479.00
|
||
|
10" (254mm) | 8.6" (218mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 9.8" (250mm) | 8 Lbs (3.63 Kg) | 137-010 - |
$377.00
|
||
|
8" (203mm) | 5.6" (142mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 8.7" (220mm) | 5 Lbs (2.27 Kg) | 137-008-M |
$251.00
|
||
|
8" (203mm) | 6.9" (175mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 8.7" (220mm) | 5 Lbs (2.27 Kg) | 137-008- |
$236.00
|
||
|
6" (152mm) | 3.3" (85mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 6.5" (165mm) | 2 Lbs (0.91 Kg) | 137-006-M |
$161.00
|
||
|
6" (152mm) | 5.6" (142mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 7.5" (190mm) | 3 Lbs (1.36 Kg) | 137-006- |
$146.00
|
||
|
4" (102mm) | 2.8" (71mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.9" (100mm) | 1 Lb (0.45 Kg) | 137-004-M |
$82.10
|
||
|
4" (102mm) | 3.3" (84mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 5.7" (145mm) | 1 Lb (0.45 Kg) | 137-004- |
$79.30
|
||
|
3" (76mm) | 1.8" (46mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.1" (80mm) | 1 Lb (0.45 Kg) | 137-003-M |
$74.60
|
||
|
3" (76mm) | 2.8" (71mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.3" (85mm) | 1 Lb (0.45 Kg) | 137-003- |
$64.20
|
||
|
2" (51mm) | 1.8" (46mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 2.8" (72mm) | 1 Lb (0.45 Kg) | 137-002- |
$57.60
|
||
|
1.6" (41mm) | 1.3" (33mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 2.8" (70mm) | 1 Lb (0.45 Kg) | 137-0016- |
$54.80
|
||
|
1.3" (33mm) | 0.8" (20.3mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 2.6" (65mm) | 1 Lb (0.45 Kg) | 137-0013- |
$52.90
|
Smaller diameter plugs can be used in all types of pipelines. Since these plugs are not reinforced with cord, they exhibit excellent stretching and sealing characteristics in pipe diameters from 20 mm (0.8") up to 305 mm (12").
Tire inflation valves may be removed to expose British Standard Pipe Thread fitting for direct hose connection or for adding a quick connect. Blocking plugs are 1/4" BSPT and bypass plugs are 1/8" BSPT excluding the 8”, 10” & 12” Bypass Plugs which are 1/4".
By-pass plugs are threaded both ends.
| Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length, Cylinder Contact | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
12" (305mm) | 10.8" (274mm) | 2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 13.7" (350mm) | 16 Lbs (7.26 Kg) | 137-012-8 |
$570.00
|
||
|
10" (254mm) | 8.6" (218mm) | 2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 11.8" (300mm) | 12 Lbs (5.44 Kg) | 137-010-8 |
$402.00
|
||
|
8" (203mm) | 5.6" (142mm) | 1" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 8.7" (220mm) | 5 Lbs (2.27 Kg) | 137-008-8M |
$364.00
|
||
|
8" (203mm) | 6.9" (175mm) | 2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 9.5" (240mm) | 8 Lbs (3.63 Kg) | 137-008-8 |
$330.00
|
||
|
6" (152mm) | 3.3" (85mm) | 1/2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 6.5" (165mm) | 2 Lbs (0.91 Kg) | 137-006-8M |
$286.00
|
||
|
6" (152mm) | 5.6" (142mm) | 1" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 7.5" (190mm) | 5 Lbs (2.27 Kg) | 137-006-8 |
$279.00
|
||
|
4" (102mm) | 2.8" (71mm) | 1/2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.9" (100mm) | 1 Lb (0.45 Kg) | 137-004-8M |
$261.00
|
||
|
4" (102mm) | 3.3" (85mm) | 1/2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 5.7" (145mm) | 2 Lbs (0.91 Kg) | 137-004-8 |
$205.00
|
||
|
3" (76mm) | 2.8" (71mm) | 1/2" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.3" (85mm) | 1 Lb (0.45 Kg) | 137-003-8 |
$204.00
|
||
|
2" (51mm) | 1.8" (46mm) | 1/8" FNPT | 36 psi (2.48 bar) | ** See Back Pressure Chart | 3.1" (80mm) | 1 Lb (0.45 Kg) | 137-002-8 |
$185.00
|
Blocking Plug reinforced with Aramid cord for a wide application range. They can be used in different situations, where a pipe needs to be blocked.
| Image | Dia. Max | Dia. Deflated | By-Pass | Infl. Press. Required | Press. Pipeline Max | Length, Cylinder Contact | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
60" (1524mm) | 23.6" (599mm) | None | 15 psi (1.03 bar) | ** See Back Pressure Chart | 91" (2300mm) | 165 Lbs (74.84 Kg) | 137-060 - |
$6,850.00
|
||
|
48" (1219mm) | 22.6" (574mm) | None | 22 psi (1.51 bar) | ** See Back Pressure Chart | 57" (1450mm) | 84 Lbs (38.10 Kg) | 137-048- |
$2,940.00
|
||
|
40" (1016mm) | 18.6" (472mm) | None | 22 psi (1.51 bar) | ** See Back Pressure Chart | 45" (1150mm) | 54 Lbs (24.5 Kg) | 137-040- |
$1,770.00
|
||
|
30" (762mm) | 13.5" (343mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 41" (1050mm) | 26 Lbs (11.79 Kg) | 137-030- |
$1,410.00
|
||
|
24" (610mm) | 12.7" (323mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 33" (830mm) | 22 Lbs (9.98 Kg) | 137-024- |
$835.00
|
||
|
21" (533mm) | 10.7" (272mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 25" (630mm) | 15 Lbs (6.80 Kg) | 137-021- |
$752.00
|
||
|
16" (406mm) | 7.6" (193mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 24" (600mm) | 8 Lbs (3.63 Kg) | 137-016- |
$540.00
|
||
|
12" (305mm) | 5.6" (142mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 21" (540mm) | 6 Lbs (2.72Kg) | 137-012-MM |
$446.00
|
||
|
8" (203mm) | 3.6" (91mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 20" (500mm) | 3 Lbs (1.36Kg) | 137-008-MM |
$306.00
|
||
|
6" (152mm) | 2.7" (68mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 12" (300mm) | 2 Lbs (0.91Kg) | 137-006-MM |
$215.00
|
||
|
2.8" (71mm) | 1.4" (36mm) | None | 36 psi (2.48 bar) | ** See Back Pressure Chart | 6.3" (160mm) | 1 Lb (0.45 Kg) | 137-002-MM |
$153.00
|
Simply screw on a remote pole to the remote placement adapter and you can place the plug in the pipe from a distance.
| Image | Description | Shipping Wt. | Item Number | Price | Qty | Order or Compare |
|---|---|---|---|---|---|---|
|
Adapter,Remote Placement For 137-024, 14"-24" (350-600 mm) Plug | 6 Lb (2.72 Kg) | 936-7024- |
$210.00
|
||
|
Adapter, Remote Placement For 137-021, 12"-21" (300-525 mm) Plug | 6 Lb (2.72 Kg) | 936-7021- |
$276.00
|
||
|
Adapter, Remote Placement For 137-016, 8"-16" (200-400 mm) Plug | 5 Lb (2.27 Kg) | 936-7016- |
$276.00
|
||
|
Adapter, Remote Placement For 137-012MM, 6"-12" (150-300 mm) Plug | 3 Lb (1.36 Kg) | 936-7012- |
$114.00
|
||
|
Adapter, Remote Placement for 137-008MM, 4"-8" (100-200 mm) Plug | 3 Lb (1.36 Kg) | 936-7008- |
$95.00
|
