Quality Products For Professionals Since 1916 ISO9001:2015

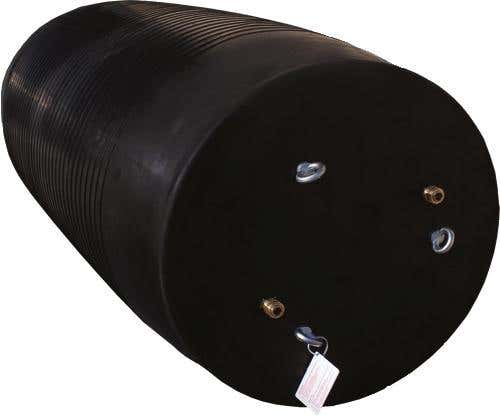

Pipe Plug, Aramid Reinforced Rubber Blocking 137 Series

Blocking Plug reinforced with Aramid cord for a wide application range. They can be used in different situations, where a pipe needs to be blocked.

Operating Instructions

Loading...
View as List Grid

11 Items

Set Ascending Direction
    Image Dia. Max Dia. Deflated By-Pass Infl. Press. Required Press. Pipeline Max Length, Cylinder Contact Shipping Wt. Item Number Price Qty Action
    60" (1524mm) 23.6" (599mm) None 15 psi (1.03 bar) ** See Back Pressure Chart 91" (2300mm) 165 Lbs (74.84 Kg) 137-060 -
    $6,650.00
    48" (1219mm) 22.6" (574mm) None 22 psi (1.51 bar) ** See Back Pressure Chart 57" (1450mm) 84 Lbs (38.10 Kg) 137-048-
    $2,850.00
    40" (1016mm) 18.6" (472mm) None 22 psi (1.51 bar) ** See Back Pressure Chart 45" (1150mm) 54 Lbs (24.5 Kg) 137-040-
    $1,720.00
    30" (762mm) 13.5" (343mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 41" (1050mm) 26 Lbs (11.79 Kg) 137-030-
    $1,360.00
    24" (610mm) 12.7" (323mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 33" (830mm) 22 Lbs (9.98 Kg) 137-024-
    $811.00
    21" (533mm) 10.7" (272mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 25" (630mm) 15 Lbs (6.80 Kg) 137-021-
    $730.00
    16" (406mm) 7.6" (193mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 24" (600mm) 8 Lbs (3.63 Kg) 137-016-
    $524.00
    12" (305mm) 5.6" (142mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 21" (540mm) 6 Lbs (2.72Kg) 137-012-MM
    $433.00
    8" (203mm) 3.6" (91mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 20" (500mm) 3 Lbs (1.36Kg) 137-008-MM
    $297.00
    6" (152mm) 2.7" (68mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 12" (300mm) 2 Lbs (0.91Kg) 137-006-MM
    $208.00
    2.8" (71mm) 1.4" (36mm) None 36 psi (2.48 bar) ** See Back Pressure Chart 6.3" (160mm) 1 Lb (0.45 Kg) 137-002-MM
    $149.00
