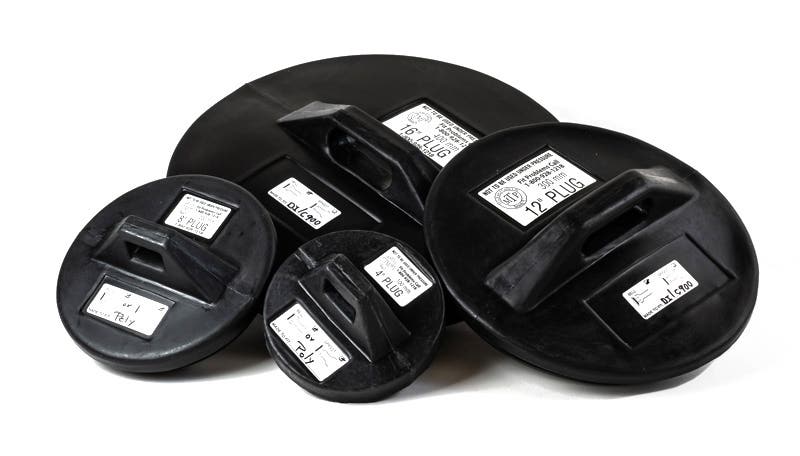

Pipe Plug, Pipe Protector, Spigot, 140-0 Series

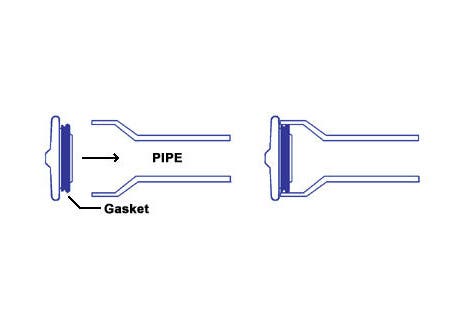

The non-pressure Pipe Protector Plug is a patented polyethylene plug used to keep all types of pipe clean. If you need to keep your pipe free of water, sand, mud, animals, or just about anything else, this is the answer. It saves time and money and fits pipe from 6" to 60". Please specify pipe class and id with your order.
Call for freight quote for sizes 16" and larger.
Custom sizes are available upon request!
Specifications for Ductile Iron, C-900, or Vylon (Viton) & Pro 21 Pipe
Specifications for Polyethylene, Concrete or SDR 35 Pipe
Specifications for SDR 26, SDR 21(cl 200), SDR 26 (cl 160), Ultra Rib or Steel Gas Pipe
Pipe Plug, Pipe Protector, Spigot, 140 Series
| Pipe Size, Nominal | Diameter | Pipe Type | Pipe End | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|---|
| 60" (1524mm) | Vylon & Pro 21 Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-9S |
$812.00
|
|
||
| 60" (1524mm) | 60" (1524mm) | Concrete Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-3S |
$735.00
|
|
|
| 60" (1524mm) | Polyethylene Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-2S |
$735.00
|
|
||
| 60" (1524mm) | 61.81" (1570mm) | Ductile Iron & C-900 Pipe | Spigot | 65 Lb (29.48 Kg) | 140-060-1S |
$812.00
|
|
|
| 54" (1372mm) | 53.5" (1359mm) | Vylon & Pro 21 Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-9S |
$733.00
|
|
|
| 54" (1372mm) | 54" (1372mm) | Concrete Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-3S |
$680.00
|
|
|
| 54" (1372mm) | 40.46" (1028mm) | Polyethylene Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-2S |
$680.00
|
|
|
| 54" (1372mm) | 56.17" (1427mm) | Ductile Iron & C-900 Pipe | Spigot | 57 Lb (25.86 Kg) | 140-054-1S |
$733.00
|
|
|
| 48" (1219mm) | 47.5"(1207mm) | Vylon & Pro 21 Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-9S |
$435.00
|
|
|
| 48" (1219mm) | 48" (1219mm) | Concrete Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-3S |
$407.00
|
|
|
| 48" (1219mm) | 41.44" (1052mm) | Polyethylene Pipe | Spigot | 39 Lb (17.69 Kg) | 140-048-2S |
$407.00
|
|
|
| 48" (1219mm) | 49.53" (1258mm) | Ductile Iron & C-900 Pipe | Spigot | 39 Lb (14.52 Kg) | 140-048-1S |
$435.00
|
|
|
| 42" (1067mm) | 41.5" (1054mm) | Vylon & Pro 21 Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-9S |
$362.00
|
|
|
| 42" (1067mm) | 42" (1067mm) | Concrete Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-3S |
$333.00
|
|
|
| 42" (1067mm) | 36.26" (921mm) | Polyethylene Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-2S |
$333.00
|
|
|
| 42" (1067mm) | 43.31" (1100mm) | Ductile Iron & C-900 Pipe | Spigot | 32 Lb (14.52 Kg) | 140-042-1S |
$362.00
|
|
|
| 36" (914mm) | 35.5" (902mm) | Vylon & Pro 21 Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-9S |
$278.00
|
|
|
| 36" (914mm) | Steel Gas | Spigot | 25 Lb (11.34 Kg) | 140-036-8S |
$248.00
|
|
||
| 36" (914mm) | 36" (914mm) | Concrete Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-3S |
$248.00
|
|
|
| 36" (914mm) | 31.08" (789mm) | Polyethylene Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-2S |
$248.00
|
|
|
| 36" (914mm) | 37.19" (945mm) | Ductile Iron & C-900 Pipe | Spigot | 25 Lb (11.34 Kg) | 140-036-1S |
$278.00
|
|
|
| 33" (838mm) | Vylon & Pro 21 Pipe | Spigot | 20 Lb (9.07 Kg) | 140-033-9S |
$267.00
|
|
||
| 30" (762mm) | 29.5" (749mm) | Vylon & Pro 21 Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-9S |
$252.00
|
|
|
| 30" (762mm) | Steel Gas | Spigot | 18 Lb (8.16 Kg) | 140-030-8S |
$208.00
|
|
||
| 30" (762mm) | 29.5" (749mm) | Ultra Rib | Spigot | 3 Lb (1.36 Kg) | 140-030-7S |
$252.00
|
|
|
| 30" (762mm) | 28.15" (715mm) | SDR 35 | Spigot | 18 Lb (8.16 Kg) | 140-030-4S |
$252.00
|
|
|
| 30" (762mm) | Concrete Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-3S |
$208.00
|
|
||
| 30" (762mm) | 25.990" (658mm) | Polyethylene Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-2S |
$208.00
|
|
|
| 30" (762mm) | 30.97" (787mm) | Ductile Iron & C-900 Pipe | Spigot | 18 Lb (8.16 Kg) | 140-030-1S |
$252.00
|
|
|
| 27" (686mm) | 26.5" (673mm) | Vylon & Pro 21 Pipe | Spigot | 13 Lb (5.90 Kg) | 140-027-9S |
$210.00
|
|
|
| 27" (686mm) | 26.5" (673mm) | Ultra Rib | Spigot | 13 Lb (5.90 Kg) | 140-027-7S |
$210.00
|
|
|
| 27" (686mm) | SDR 35 | Spigot | 13 Lb (5.90 Kg) | 140-027-4S |
$210.00
|
|
||
| 27" (686mm) | 27" (686mm) | Concrete Pipe | Spigot | 13 Lb (5.90 Kg) | 140-027-3S |
$170.00
|
|
|
| 24" (610mm) | 23.5" (597mm) | Vylon & Pro 21 Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-9S |
$170.00
|
|
|
| 24" (610mm) | 22.624" (575mm) | Steel Gas | Spigot | 9 Lb (4.08 Kg) | 140-024-8S |
$132.00
|
|
|
| 24" (610mm) | 23.5" (597mm) | Ultra Rib | Spigot | 9 Lb (4.08 Kg) | 140-024-7S |
$170.00
|
|
|
| 24" (610mm) | 22.15" (563mm) | SDR 26 | Spigot | 9 Lb (4.08 Kg) | 140-024-5S |
$137.00
|
|
|
| 24" (610mm) | 22.52" (572mm) | SDR 35 | Spigot | 9 Lb (4.08 Kg) | 140-024-4S |
$137.00
|
|
|
| 24" (610mm) | 24" (610mm) | Concrete Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-3S |
$132.00
|
|
|
| 24" (610mm) | 16.73" (425mm) | Polyethylene Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-2S |
$132.00
|
|
|
| 24" (610mm) | 24.85" (631mm) | Ductile Iron & C-900 Pipe | Spigot | 9 Lb (4.08 Kg) | 140-024-1S |
$170.00
|
|
|
| 21" (533mm) | Vylon & Pro 21 Pipe | Spigot | 8 Lb (3.63 Kg) | 140-021-9S |
$0.00
|
|
||
| 21" (533mm) | 20.75" (527mm) | Ultra Rib | Spigot | 8 Lb (3.63 Kg) | 140-021-7S |
$158.00
|
|
|
| 21" (533mm) | SDR 26 | Spigot | 8 Lb (3.63 Kg) | 140-021-5S |
$127.00
|
|
||
| 21" (533mm) | SDR 35 | Spigot | 8 Lb (3.63 Kg) | 140-021-4S |
$127.00
|
|
||
| 20" (508mm) | 20.69" (526mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-020-1S |
$152.00
|
|
|
| 18" (457mm) | 16.29" (414mm) | Steel Gas Pipe | Spigot | 3 Lb (1.36 Kg) | 140-018-8S |
$108.00
|
|
|
| 18 " (457mm) | 17.65" (448mm) | Ultra Rib | Spigot | 7 Lb (3.18 Kg) | 140-018-7S |
$132.00
|
|
|
| 18" (457mm) | 16.62" (422mm) | SDR 26 | Spigot | 7 Lb (3.18 Kg) | 140-018-5S |
$108.00
|
|
|
| 18" (457mm) | 16.89" (429mm) | SDR 35 | Spigot | 7 Lb (3.18 Kg) | 140-018-4S |
$108.00
|
|
|
| 18" (457mm) | 18" (457mm) | Concrete Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-3S |
$108.00
|
|
|
| 18" (457mm) | 12.55" (319mm) | Polyethylene Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-2S |
$108.00
|
|
|
| 18" (457mm) | 18.61" (473mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-018-1S |
$132.00
|
|
|
| 16" (406mm) | 16.53" (420mm) | Ductile Iron & C-900 Pipe | Spigot | 7 Lb (3.18 Kg) | 140-016-1S |
$115.00
|
|
|
| 15" (381mm) | Steel Gas | Spigot | 6 Lb (2.72 Kg) | 140-015-8S |
$98.30
|
|
||
| 15" (381mm) | 14.37" (365mm) | Ultra Rib | Spigot | 6 Lb (2.72 Kg) | 140-015-7S |
$112.00
|
|
|
| 15" (381mm) | SDR 26 | Spigot | 6 Lb (2.72 Kg) | 140-015-5S |
$98.30
|
|
||
| 15" (381mm) | SDR 35 | Spigot | 6 Lb (2.72 Kg) | 140-015-4S |
$98.30
|
|
||
| 15" (381mm) | 15" (381mm) | Concrete Pipe | Spigot | 6 Lb (2.72 Kg) | 140-015-3S |
$98.30
|
|
|
| 15" (381mm) | Polyethylene Pipe | Spigot | 6 Lb (2.72 Kg) | 140-015-2S |
$98.30
|
|
||
| 14" (356mm) | 14.45" (367mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-014-1S |
$108.00
|
|
|
| 12" (305mm) | Steel Gas | Spigot | 4 Lb (1.81 Kg) | 140-012-8S |
$83.30
|
|
||
| 12" (305mm) | 11.74" (298mm) | Ultra Rib | Spigot | 4 Lb (1.81 Kg) | 140-012-7S |
$103.00
|
|
|
| 12" (305mm) | 11.54" (293mm) | SDR 21 & 26 (cl 160) | Spigot | 4 Lb (1.81 Kg) | 140-012-6S |
$83.30
|
|
|
| 12" (305mm) | 11.77" (299mm) | SDR 26 | Spigot | 4 Lb (1.81 Kg) | 140-012-5S |
$83.30
|
|
|
| 12" (305mm) | 11.97" (304mm) | SDR 35 | Spigot | 4 Lb (1.81 Kg) | 140-012-4S |
$83.30
|
|
|
| 12" (305mm) | 12" (305mm) | Concrete Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-3S |
$83.30
|
|
|
| 12" (305mm) | 8.89" (226mm) | Polyethylene Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-2S |
$83.30
|
|
|
| 12" (305mm) | 12.45" (316mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-012-1S |
$103.00
|
|
|
| 10" (254mm) | 9.86" (250mm) | Ultra Rib | Spigot | 4 Lb (1.81 Kg) | 140-010-7S |
$78.30
|
|
|
| 10" (254mm) | 9.73" (247mm) | SDR 21 & 26 (cl 160) | Spigot | 4 Lb (1.81 Kg) | 140-010-6S |
$75.00
|
|
|
| 10" (254mm) | 9.92" (252mm) | SDR 26 | Spigot | 4 Lb (1.81 Kg) | 140-010-5S |
$75.00
|
|
|
| 10" (254mm) | 10.09" (256mm) | SDR 35 | Spigot | 4 Lb (1.81 Kg) | 140-010-4S |
$75.00
|
|
|
| 10 " (254mm) | 10" (254mm) | Concrete Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-3S |
$75.00
|
|
|
| 10" (254mm) | 7.49" (190mm) | Polyethylene Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-2S |
$75.00
|
|
|
| 10" (254mm) | 10.39" (264mm) | Ductile Iron & C-900 Pipe | Spigot | 4 Lb (1.81 Kg) | 140-010-1S |
$78.30
|
|
|
| 8" (203mm) | 7.981" (203mm) | Steel Gas | Spigot | 3 Lb (1.36 Kg) | 140-008-8S |
$40.00
|
|
|
| 8" (203mm) | 7.89" (200mm) | Ultra Rib | Spigot | 3 Lb (1.36 Kg) | 140-008-7S |
$45.00
|
|
|
| 8" (203mm) | 7.8" (198mm) | SDR 21 & 26 (cl 160) | Spigot | 3 Lb (1.36 Kg) | 140-008-6S |
$40.00
|
|
|
| 8" (203mm) | 7.96" (202mm) | SDR 26 | Spigot | 3 Lb (1.36 Kg) | 140-008-5S |
$40.00
|
|
|
| 8" (203mm) | 8.09" (205mm) | SDR 35 | Spigot | 3 Lb (1.36 Kg) | 140-008-4S |
$40.00
|
|
|
| 8" (203mm) | 8" (203mm) | Concrete Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-3S |
$40.00
|
|
|
| 8" (203mm) | 6.01" (153mm) | Polyethylene Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-2S |
$40.00
|
|
|
| 8" (203mm) | 8.38" (213mm) | Ductile Iron & C-900 Pipe | Spigot | 3 Lb (1.36 Kg) | 140-008-1S |
$45.00
|
|
|
| 6" (152mm) | 6.065" (154mm) | Steel Gas | Spigot | 3 Lb (1.36 Kg) | 140-006-8S |
$35.00
|
|
|
| 6" (152mm) | 5.99" (152mm) | SDR 21 & 26 (cl 160) | Spigot | 3 Lb (1.36 Kg) | 140-006-6S |
$35.00
|
|
|
| 6" (152mm) | 6.12" (155mm) | SDR 26 | Spigot | 3 Lb (1.36 Kg) | 140-006-5S |
$35.00
|
|
|
| 6" (152mm) | 6.22" (158mm) | SDR 35 | Spigot | 3 Lb (1.36 Kg) | 140-006-4S |
$35.00
|
|
|
| 6" (152mm) | 6" (152mm) | Concrete Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-3S |
$35.00
|
|
|
| 6" (152mm) | 4.62"(117mm) | Polyethylene Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-2S |
$35.00
|
|
|
| 6" (152mm) | 6.27" (159mm) | Ductile Iron & C-900 Pipe | Spigot | 3 Lb (1.36 Kg) | 140-006-1S |
$38.30
|
|
Pipe Plug, Pipe Protector, Bell, 140 Series
| Pipe Size, Nominal | Pipe Type | Pipe End | Shipping Wt. | Item Number | Price | Qty | Action |
|---|---|---|---|---|---|---|---|
| 60" (1524mm) | Vylon & Pro 21 Pipe | Bell | 65 Lb (29.48 Kg) | 140-060-9B |
$812.00
|
|
|
| 60" (1524mm) | Concrete Pipe | Bell | 65 Lb (29.48 Kg) | 140-060-3B |
$735.00
|
|
|
| 60" (1524mm) | Polyethylene Pipe | Bell | 65 Lb (29.48 Kg) | 140-060-2B |
$735.00
|
|
|
| 60" (1524mm) | Ductile Iron & C-900 Pipe | Bell | 65 Lb (29.48 Kg) | 140-060-1B |
$812.00
|
|
|
| 54" (1372mm) | Vylon & Pro 21 Pipe | Bell | 57 Lb (25.86 Kg) | 140-054-9B |
$733.00
|
|
|
| 54" (1372mm) | Concrete Pipe | Bell | 57 Lb (25.85 Kg) | 140-054-3B |
$680.00
|
|
|
| 54" (1372mm) | Polyethylene Pipe | Bell | 57 Lb (25.86 Kg) | 140-054-2B |
$680.00
|
|
|
| 54" (1372mm) | Ductile Iron & C-900 Pipe | Bell | 57 Lb (25.86 Kg) | 140-054-1B |
$733.00
|
|
|
| 48" (1219mm) | Vylon & Pro 21 Pipe | Bell | 39 Lb (17.69 Kg) | 140-048-9B |
$435.00
|
|
|
| 48" (1219mm) | Concrete Pipe | Bell | 39 Lb (17.69 Kg) | 140-048-3B |
$407.00
|
|
|
| 48" (1219mm) | Polyethylene Pipe | Bell | 39 Lb (17.69 Kg) | 140-048-2B |
$407.00
|
|
|
| 48" (1219.2mm) | Ductile Iron & C-900 Pipe | Bell | 39 Lb (17.69 Kg) | 140-048-1B |
$435.00
|
|
|
| 42" (1067mm) | Vylon & Pro 21 Pipe | Bell | 32 Lb (14.52 Kg) | 140-042-9B |
$362.00
|
|
|
| 42" (1067mm) | Concrete Pipe | Bell | 32 Lb (14.52 Kg) | 140-042-3B |
$333.00
|
|
|
| 42" (1067mm) | Polyethylene Pipe | Bell | 32 Lb (14.52 Kg) | 140-042-2B |
$333.00
|
|
|
| 42" (1067mm) | Ductile Iron & C-900 Pipe | Bell | 32 Lb (14.52 Kg) | 140-042-1B |
$362.00
|
|
|
| 36" (914mm) | Vylon & Pro 21 Pipe | Bell | 25 Lb (11.34 Kg) | 140-036-9B |
$278.00
|
|
|
| 36" (914mm) | Steel Gas | Bell | 25 Lb (11.34 Kg) | 140-036-8B |
$248.00
|
|
|
| 36" (914mm) | Concrete Pipe | Bell | 25 Lb (11.34 Kg) | 140-036-3B |
$248.00
|
|
|
| 36" (914mm) | Polyethylene Pipe | Bell | 25 Lb (11.34 Kg) | 140-036-2B |
$248.00
|
|
|
| 36" (914mm) | Ductile Iron & C-900 Pipe | Bell | 25 Lb (11.34 Kg) | 140-036-1B |
$278.00
|
|
|
| 33" (838mm) | Vylon & Pro 21 Pipe | Bell | 20 Lb (9.07 Kg) | 140-033-9B |
$267.00
|
|
|
| 30" (762mm) | Vylon & Pro 21 Pipe | Bell | 18 Lb (8.16 Kg) | 140-030-9B |
$252.00
|
|
|
| 30" (762mm) | Steel Gas | Bell | 18 Lb (8.16 Kg) | 140-030-8B |
$208.00
|
|
|
| 30" (762mm) | Ultra Rib | Bell | 18 Lb (8.16 Kg) | 140-030-7B |
$252.00
|
|
|
| 30" (762mm) | SDR 35 | Bell | 18 Lb (8.16 Kg) | 140-030-4B |
$252.00
|
|
|
| 30" (762mm) | Concrete Pipe | Bell | 18 Lb (8.16 Kg) | 140-030-3B |
$208.00
|
|
|
| 30" (762mm) | Polyethylene Pipe | Bell | 18 Lb (8.16 Kg) | 140-030-2B |
$208.00
|
|
|
| 30" (762mm) | Ductile Iron & C-900 Pipe | Bell | 18 Lb (8.16 Kg) | 140-030-1B |
$252.00
|
|
|
| 27" (686mm) | Vylon & Pro 21 Pipe | Bell | 13 Lb (5.90 Kg) | 140-027-9B |
$210.00
|
|
|
| 27" (686mm) | Ultra Rib | Bell | 13 Lb (5.90 Kg) | 140-027-7B |
$210.00
|
|
|
| 27" (686mm) | SDR 35 | Bell | 13 Lb (5.90 Kg) | 140-027-4B |
$210.00
|
|
|
| 27" (686mm) | Concrete Pipe | Bell | 13 Lb (5.90 Kg) | 140-027-3B |
$170.00
|
|
|
| 24" (610mm) | Vylon & Pro 21 Pipe | Bell | 9 Lb (4.08 Kg) | 140-024-9B |
$170.00
|
|
|
| 24" (610mm) | Steel Gas | Bell | 9 Lb (4.08 Kg) | 140-024-8B |
$132.00
|
|
|
| 24" (610mm) | Ultra Rib | Bell | 9 Lb (4.08 Kg) | 140-024-7B |
$170.00
|
|
|
| 24" (610mm) | SDR 26 | Bell | 9 Lb (4.08 Kg) | 140-024-5B |
$137.00
|
|
|
| 24" (610mm) | SDR 35 | Bell | 9 Lb (4.08 Kg) | 140-024-4B |
$137.00
|
|
|
| 24" (610mm) | Concrete Pipe | Bell | 9 Lb (4.08 Kg) | 140-024-3B |
$132.00
|
|
|
| 24" (610mm) | Polyethylene Pipe | Bell | 9 Lb (4.08 Kg) | 140-024-2B |
$132.00
|
|
|
| 24" (610mm) | Ductile Iron & C-900 Pipe | Bell | 9 Lb (4.08 Kg) | 140-024-1B |
$170.00
|
|
|
| 21" (533mm) | Vylon & Pro 21 Pipe | Bell | 8 Lb (3.63 Kg) | 140-021-9B |
$158.00
|
|
|
| 21" (533mm) | Ultra Rib | Bell | 8 Lb (3.63 Kg) | 140-021-7B |
$158.00
|
|
|
| 21" (533mm) | SDR 26 | Bell | 8 Lb (3.63 Kg) | 140-021-5B |
$127.00
|
|
|
| 21" (533mm) | SDR 35 | Bell | 8 Lb (3.63 Kg) | 140-021-4B |
$127.00
|
|
|
| 20" (508mm) | Ductile Iron & C-900 Pipe | Bell | 7 Lb (3.18 Kg) | 140-020-1B |
$152.00
|
|
|
| 18" (457mm) | Steel Gas | Bell | 7 Lb (3.18 Kg) | 140-018-8B |
$108.00
|
|
|
| 18" (457mm) | Ultra Rib | Bell | 7 Lb (3.18 Kg) | 140-018-7B |
$132.00
|
|
|
| 18" (457mm) | SDR 26 | Bell | 7 Lb (3.18 Kg) | 140-018-5B |
$108.00
|
|
|
| 18" (457mm) | SDR 35 | Bell |
